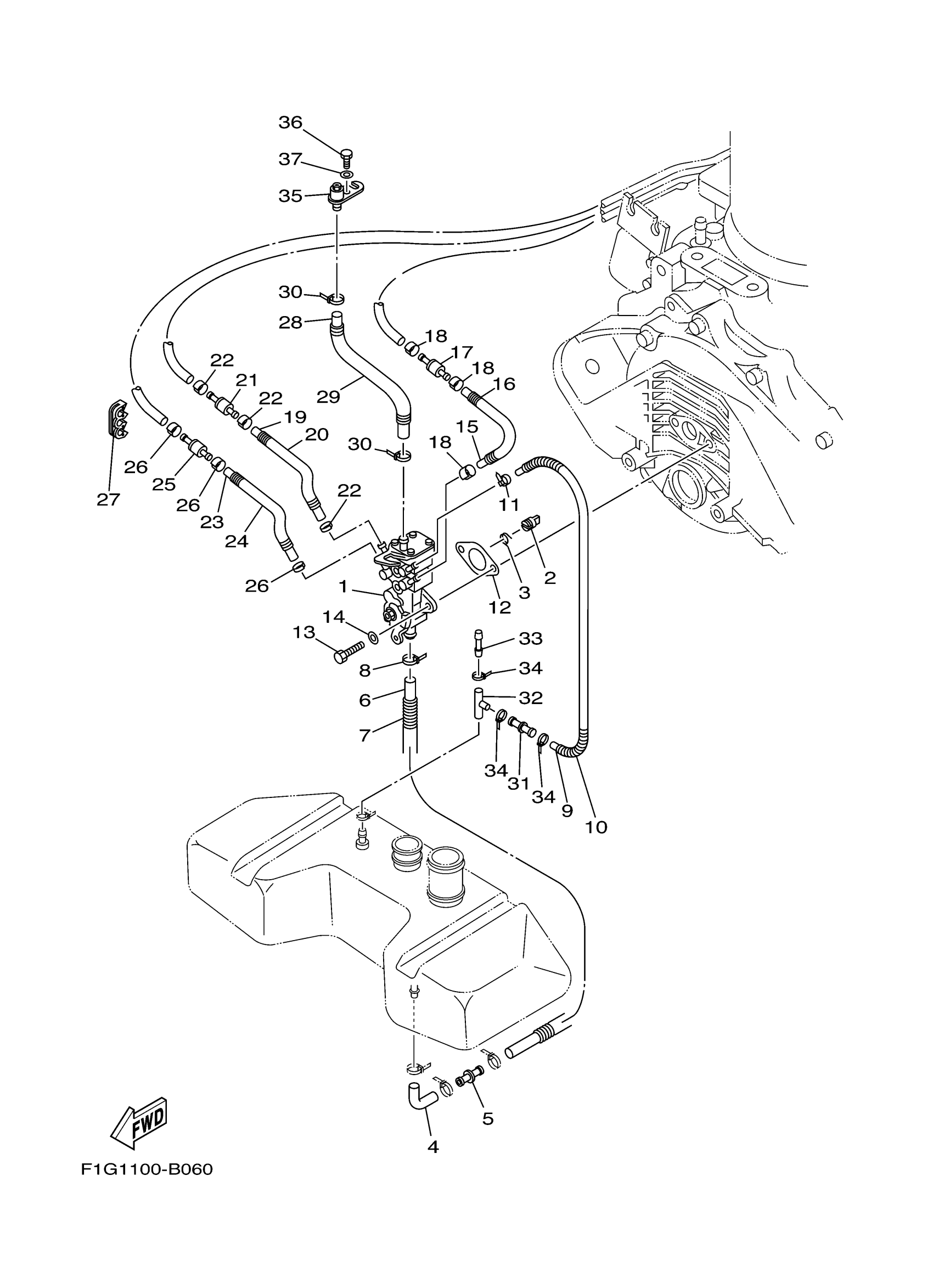

Yamaha GP1300CC (GP1300R) F1G41 2004 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

60T-13200-00-00

$465.66

2

JOINT

65U-13132-00-00

$47.75

3

SPRING

66E-13469-00-00

Unavailable

4

HOSE (L118)

90445-14M00-00

$4.40

5

CONNECTION

66V-51142-00-00

$3.13

6

HOSE (L700)

90445-117F2-00

$22.86

7

HOSE

90446-17ME2-00

Unavailable

8

CLAMP

90465-10098-00

$2.24

9

HOSE (L770)

90445-07006-00

$23.67

10

HOSE, WITH SPRING

90447-07001-00

$4.93

11

CLIP

90468-02001-00

$2.16

12

GASKET, PUMP CASE

63M-13116-00-00

$2.80

13

BOLT(7U8)

97080-06020-00

$3.95

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

HOSE (L110)

90445-07007-00

$27.60

16

HOSE

90446-10M86-00

$4.10

17

VALVE, CHECK

67X-13183-00-00

$26.10

18

CLIP

90468-02001-00

$2.16

19

HOSE (L110)

90445-07007-00

$27.60

20

HOSE

90446-10M86-00

$4.10

21

VALVE, CHECK

67X-13183-00-00

$26.10

22

CLIP

90468-02001-00

$2.16

23

HOSE (L110)

90445-07007-00

$27.60

24

HOSE

90446-10M86-00

$4.10

25

VALVE, CHECK

67X-13183-00-00

$26.10

26

CLIP

90468-02001-00

$2.16

27

CLAMP

90464-07M05-00

$2.80

28

PIPE 4

66V-24314-00-00

$6.88

29

HOSE (L120)

90446-17ME8-00

Unavailable

30

CLAMP

90465-10098-00

$2.24

31

JOINT

63M-13132-00-00

$13.99

32

PIPE, JOINT 3

63M-24378-00-00

$5.82

33

PIPE, JOINT 1

6G8-24376-00-00

$5.82

34

CLAMP

90465-10098-00

$2.24

35

BOLT, BREATHER

66V-13185-00-00

Unavailable

36

BOLT(GH1)

97080-06012-00

$2.56

37

WASHER, PLAIN (646)

92990-06600-00

$2.80
