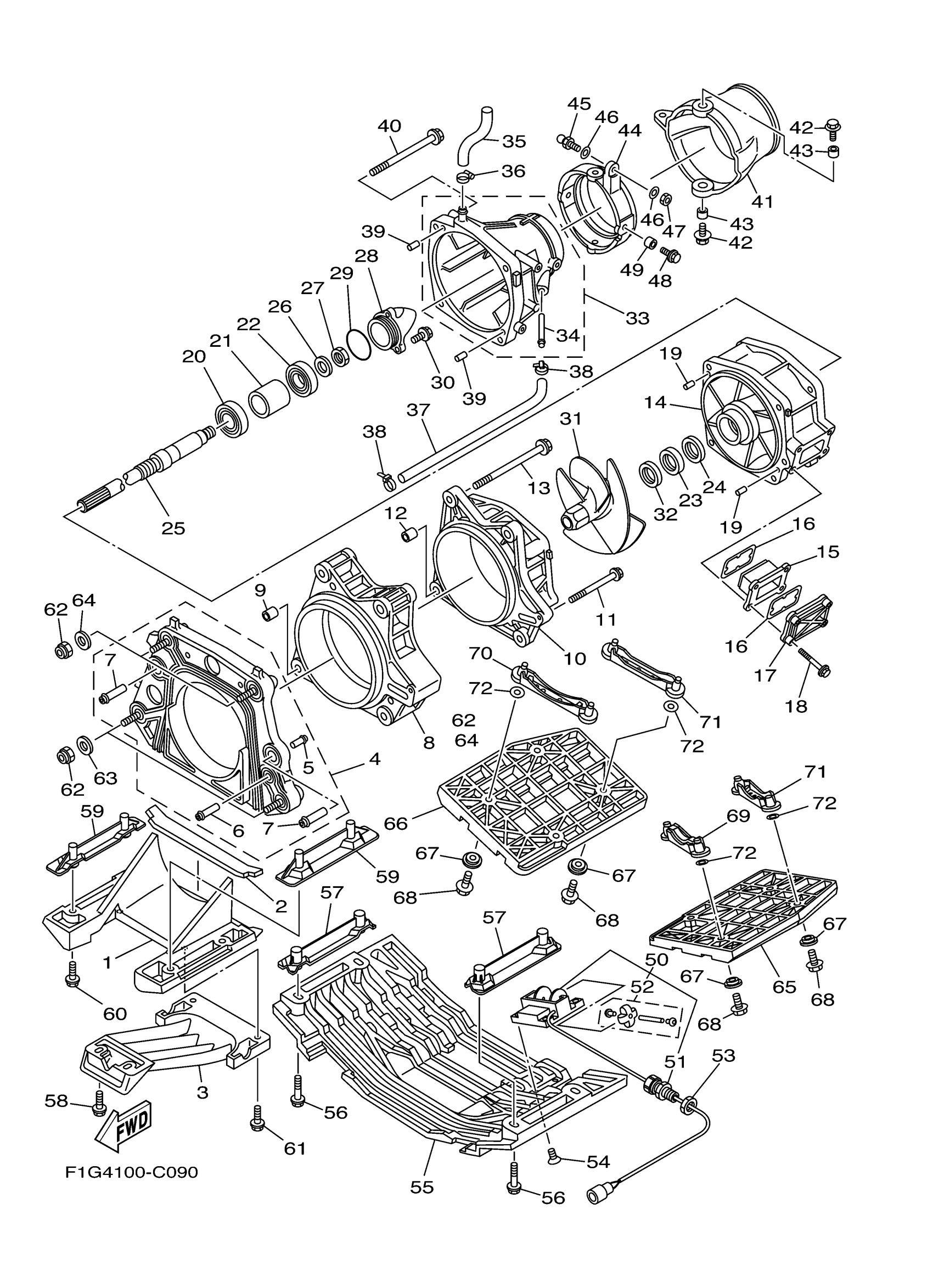

Yamaha GP1300CC (GP1300R) F1G41 2004 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

67X-51311-00-94

Unavailable

2

FELT, PACKING

66V-R1367-00-00

Unavailable

3

SCREEN, INTAKE

67X-51333-00-94

Unavailable

4

PLATE, TRANSOM

60T-G5831-00-00

Unavailable

5

. NIPPLE

65A-R1129-00-00

Unavailable

6

. NIPPLE

66V-51129-01-00

Unavailable

7

. NIPPLE

66V-51129-10-00

$15.89

8

HOUSING, IMPELLER 2

60E-51317-00-00

Unavailable

9

PIN, DOWEL(4JT)

99590-14016-00

$3.41

10

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

11

BOLT, WITH WASHER

90119-06859-00

Unavailable

12

PIN, DOWEL(4JT)

99590-14016-00

$3.41

13

BOLT, WITH WASHER

90119-10813-00

Unavailable

14

DUCT, IMPELLER

66V-51315-01-00

$173.57

15

FILTER

66V-46882-00-00

$5.91

16

. O-RING

66V-42414-00-00

$5.18

17

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

18

BOLT,WITH WASHER

90119-06898-00

$3.43

19

PIN, DOWEL (614)

93606-12019-00

Unavailable

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

SPACER 1

65V-45538-00-00

$29.88

22

BEARING

93306-304XB-00

$17.22

23

OIL SEAL

93101-28M66-00

Unavailable

24

OIL SEAL

93101-28002-00

$13.40

25

SHAFT, DRIVE

66V-45511-00-00

$393.92

26

WASHER

9299R-16600-00

Unavailable

27

NUT

95317-16700-00

$4.55

28

CAP KIT

65A-R1326-10-KT

Unavailable

29

. O-RING

93210-46M16-00

$7.15

30

BOLT,WITH WASHER

90119-06890-00

$1.07

31

IMPELLER

60T-R1321-00-00

Unavailable

32

SPACER

66V-R1348-10-00

$12.91

33

NOZZLE

60T-51318-00-94

$239.38

34

. NIPPLE,HOSE

63M-51334-00-00

$21.95

35

PIPE 1

60T-51673-00-00

$28.77

36

BAND, HOSE 18

90601-118UF-00

$2.07

37

HOSE (L330)

90445-14804-00

$1.52

38

CLAMP

90465-10098-00

$1.68

39

PIN, DOWEL (614)

93606-12019-00

Unavailable

40

BOLT, WITH WASHER

90119-10807-00

$5.44

41

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

RING,TRIM

60T-51190-00-94

$127.26

45

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

46

WASHER,PLATE

90201-068M4-00

Unavailable

47

NUT

9538R-06700-00

$1.01

48

BOLT, WITH WASHER

90119-08852-00

$3.79

49

COLLAR(6R7)

90387-08M06-00

Unavailable

50

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

51

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

52

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63

53

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

54

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

55

PLATE 2

F1G-U273B-01-00

Unavailable

56

BOLT, WITH WASHER

90119-08829-00

$3.88

57

BRACKET 2

F1G-U8572-02-00

$18.66

58

BOLT, WITH WASHER

90119-06896-00

$5.03

59

BRACKET 1

F1G-U8571-02-00

$15.07

60

BOLT, WITH WASHER

90119-08829-00

$3.88

61

BOLT,WITH WASHER

90119-06890-00

$1.07

62

NUT, NYLON

9572R-10300-00

$3.37

63

WASHER, PLATE

90201-10801-00

$3.52

64

WASHER

F1S-U725E-01-00

$7.89

65

PLATE, STEP 2

F1G-U884S-01-00

Unavailable

66

PLATE, STEP 1 (RH)

F1G-U884R-01-00

Unavailable

67

COLLAR

90387-07803-00

Unavailable

68

BOLT, WITH WASHER

90119-06892-00

$3.79

69

BED, WATER LOCK COMP. 1

F1G-6880A-00-00

Unavailable

70

PLATE, STEP 1

F0X-6885R-00-00

Unavailable

71

PLATE, STEP 2

F0X-6885S-00-00

$33.99

72

PACKING 1

F0X-62663-01-00

Unavailable
