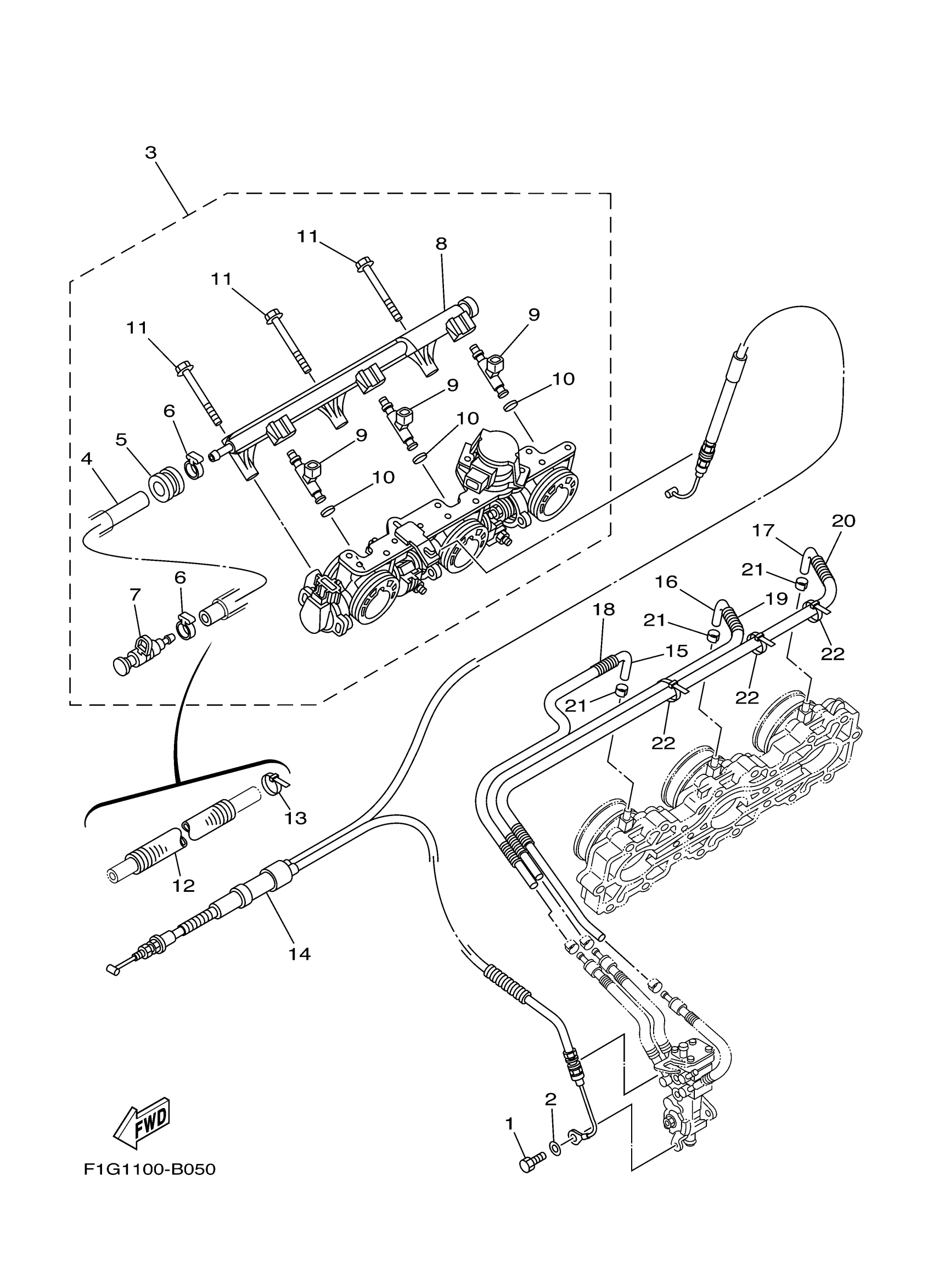

Yamaha GP1300CC (GP1300R) F1G41 2004 INJECTION PUMP Diagram

#

Description

Price

1

BOLT (682)

97095-05010-00

Unavailable

2

WASHER, PLAIN (646)

92990-05600-00

$0.80

3

THROTTLE BODY ASSY

60T-13750-00-00

Unavailable

4

HOSE

6CN-14294-20-00

Unavailable

5

. GROMMET

90480-24003-00

Unavailable

6

HOSE CLAMP ASSY

90450-17M17-00

Unavailable

7

FUEL PIPE JOINT

60E-24300-01-00

Unavailable

8

. PIPE, FUEL

60T-14295-00-00

Unavailable

9

. INJECTOR

60T-13761-00-00

Unavailable

10

. RUBBER, INJECTOR

60T-13766-00-00

Unavailable

11

. BOLT

60T-14428-00-00

Unavailable

12

HOSE

90446-24M83-00

Unavailable

13

CLAMP(6E8)

90465-13M39-00

$5.40

14

CABLE, THROTTLE

60T-67252-01-00

Unavailable

15

HOSE (L600)

90446-07003-00

Unavailable

16

HOSE (L600)

90446-07003-00

Unavailable

17

HOSE (L600)

90446-07003-00

Unavailable

18

HOSE, WITH SPRING (L200)

90447-07008-00

Unavailable

19

HOSE, WITH SPRING (L320)

90447-07009-00

Unavailable

20

HOSE, WITH SPRING (L520)

90447-07010-00

Unavailable

21

CLIP

90468-02001-00

Unavailable

22

CLAMP(6E8)

90465-13M39-00

$5.40
