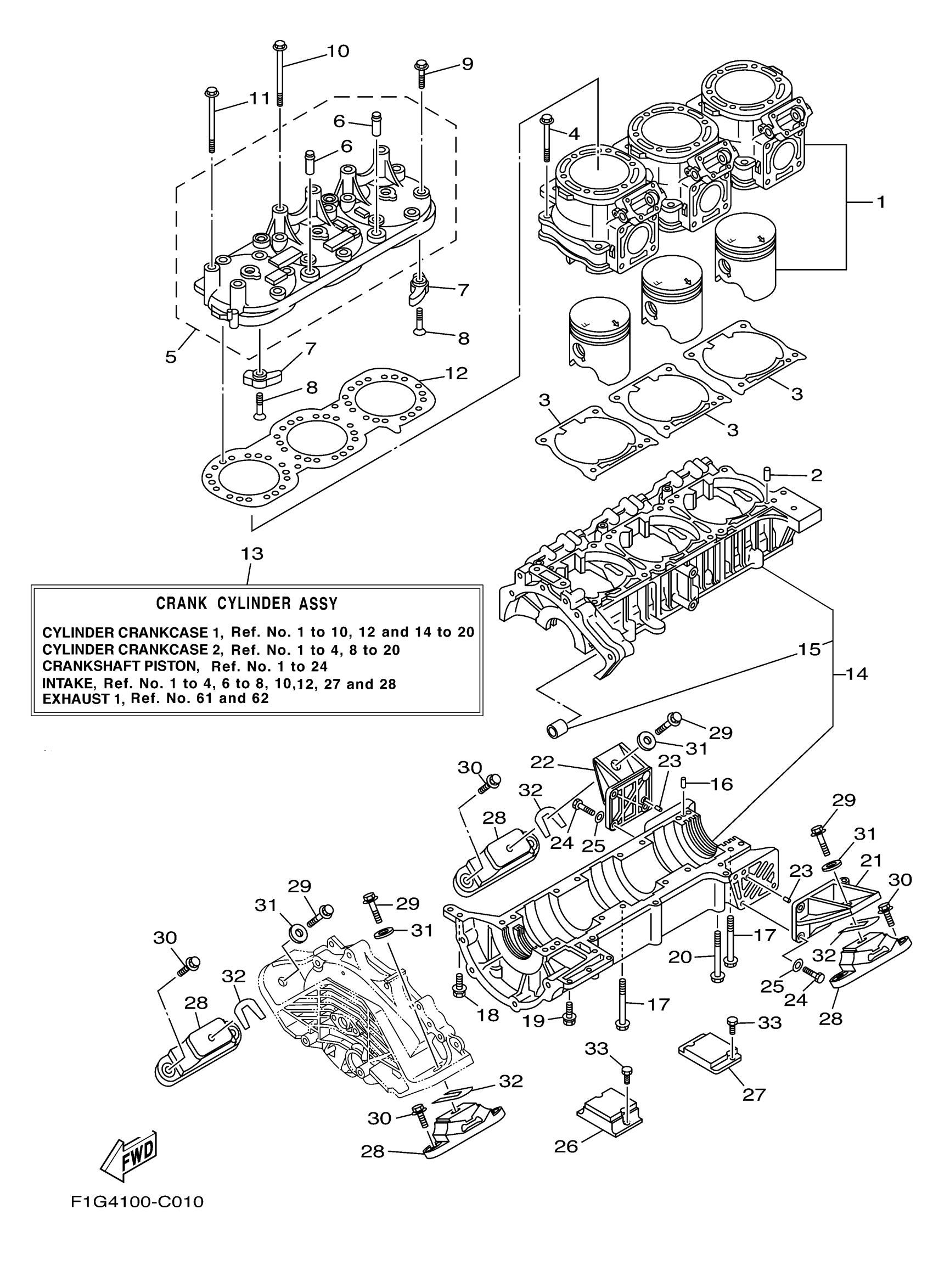

Yamaha GP1300CC (GP1300R) F1G41 2004 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

60T-W1130-01-8S

$1,971.20

2

PIN, DOWEL (614)

93606-12019-00

$3.05

3

GASKET, CYLINDER

66E-11351-02-00

$21.32

4

BOLT (6F5)

90119-10M07-00

$4.21

5

HEAD, CYLINDER 1

60T-11111-00-8S

Unavailable

6

. NIPPLE

66E-51129-00-00

Unavailable

7

ANODE

66E-11325-00-00

$10.36

8

SCREW, FLAT HEAD

98780-05020-00

$2.27

9

BOLT, WITH WASHER

90119-08MA1-00

$5.00

10

BOLT, WITH WASHER

90119-08064-00

Unavailable

11

BOLT, WITH WASHER

90119-08M99-00

$3.62

12

GASKET, CYLINDER HEAD 1

60T-11181-01-00

Unavailable

13

CRANK CYLINDER ASSY

60T-W0090-02-8S

$9,989.38

14

CRANKCASE ASSY

60T-15100-00-00

Unavailable

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

$3.05

17

BOLT, WITH WASHER

90119-08M63-00

Unavailable

18

BOLT, WITH WASHER

90119-08009-00

$2.43

19

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

20

BOLT, WITH WASHER

90119-06M84-00

$6.33

21

BRACKET, REAR UPPER 1

68N-21425-00-94

$139.38

22

BRACKET, REAR UPPER 2

68N-21426-00-94

$127.26

23

PIN, DOWEL (614)

93606-12019-00

$3.05

24

BOLT (682)

97013-08025-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

$2.17

26

STOPPER, UPPER MOUNT

66V-44532-00-94

$134.83

27

STOPPER, LOWER MOUNT RUBBER

66V-44574-00-94

Unavailable

28

MOUNT RUBBER

67X-44517-10-00

$101.50

29

BOLT, WITH WASHER

90119-08856-00

$5.17

30

BOLT, WITH WASHER

90119-08829-00

$3.88

31

WASHER, PLATE

90201-099U3-00

$2.16

32

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

32

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

32

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

32

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

32

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

33

BOLT

90101-06917-00

Unavailable
