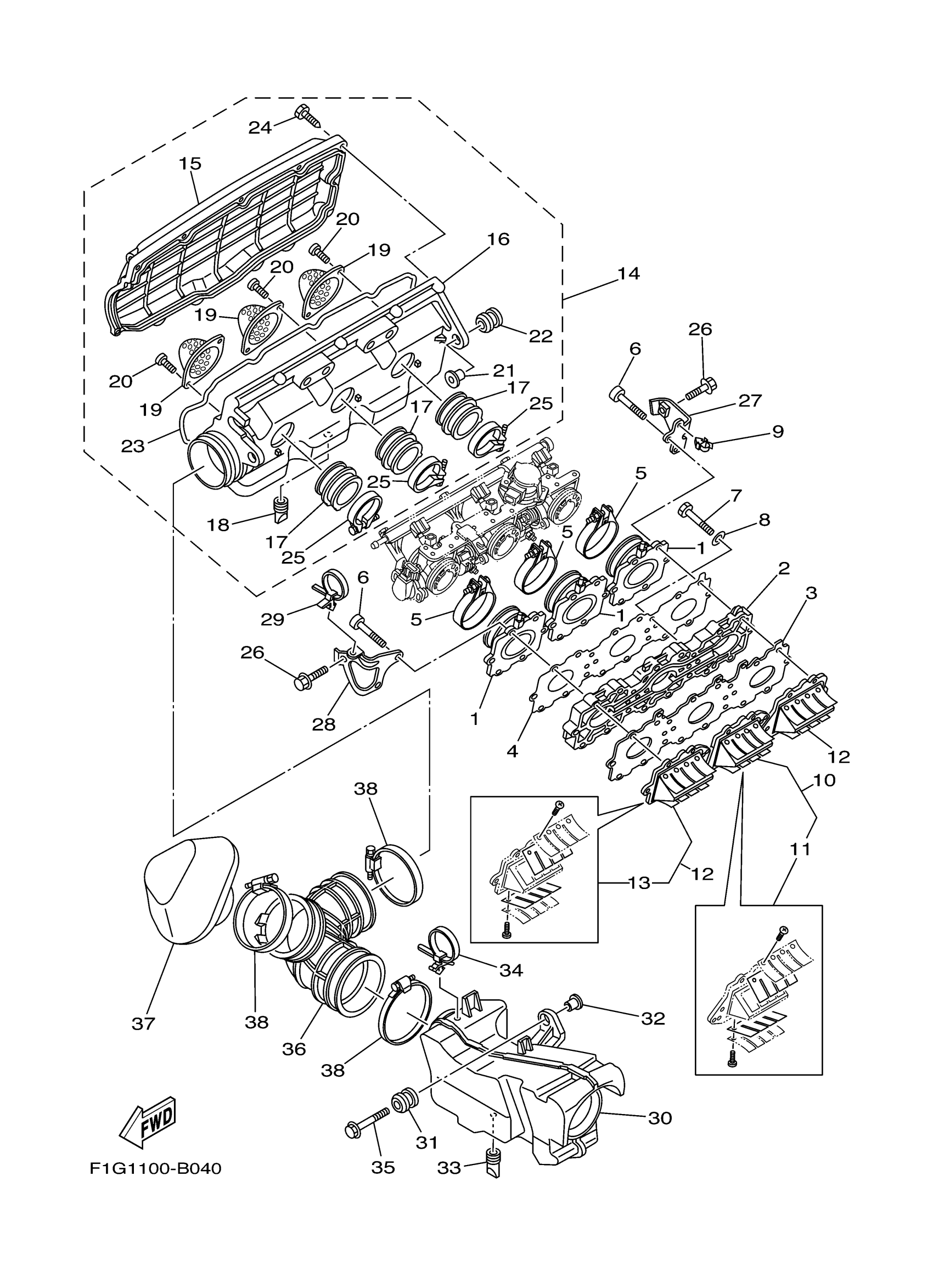

Yamaha GP1300CB (GP1300R) F1G11 2003 INTAKE Diagram
#
1
MANIFOLD, INTAKE
60T-13555-00-00
Unavailable
2
PLATE, BALANCE
60T-14263-00-94
Unavailable
3
. PLATE, REED VALVE
60T-13624-00-00
Unavailable
4
. GASKET, MANIFOLD
60T-13556-00-00
Unavailable
5
HOSE CLAMP ASSY
90450-73001-00
Unavailable
6
BOLT, HEXAGON SOCKET HEAD
90110-06081-00
Unavailable
7
BOLT (62Y)
97013-06040-00
$1.49
8
WASHER, PLAIN (646)
92990-06600-00
$2.80
9
CLAMP
90464-14M55-00
$2.07
10
REED VALVE ASSY
60T-13610-00-00
Unavailable
11
. REED SET
60T-W0004-00-00
Unavailable
12
REED VALVE ASSY
60T-13620-00-00
Unavailable
13
. REED SET
60T-W0004-00-00
Unavailable
14
COVER SUB ASSY
60T-14480-00-00
Unavailable
15
. COVER, THROTTLE BODY 1
60T-14287-00-00
Unavailable
16
. COVER, THROTTLE BODY 2
60T-14288-00-00
Unavailable
17
. JOINT, AIR CLEANER 1
60T-14453-00-00
Unavailable
18
RUBBER, SEAL 2
67X-42717-00-00
Unavailable
19
. ELEMENT, AIR CLEANER
60T-14451-00-00
Unavailable
20
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
21
COLLAR
90387-08M37-00
Unavailable
22
GROMMET
90480-22M15-00
Unavailable
23
. SEAL
60T-14457-00-00
Unavailable
24
SCREW, TAPPING
97780-60430-00
Unavailable
25
. HOSE CLAMP ASSY
90450-57003-00
Unavailable
26
BOLT, WITH WASHER
90119-08063-00
Unavailable
27
STAY
60T-14413-00-00
Unavailable
28
STAY 2
60T-14414-00-00
Unavailable
29
CLAMP
90464-50001-00
Unavailable
30
SILENCER ASSY, INTAKE
60T-14440-00-00
Unavailable
31
GROMMET
90480-22M15-00
Unavailable
32
COLLAR
90387-08M37-00
Unavailable
33
RUBBER, SEAL 2
67X-42717-00-00
Unavailable
34
CLAMP
90464-50001-00
Unavailable
35
BOLT, WITH WASHER
90119-08187-00
Unavailable
36
PIPE
60T-14419-00-00
Unavailable
37
PIPE, SILENCER
60T-1441J-00-00
Unavailable
38
CLAMP, HOSE
90460-99M23-00
Unavailable
