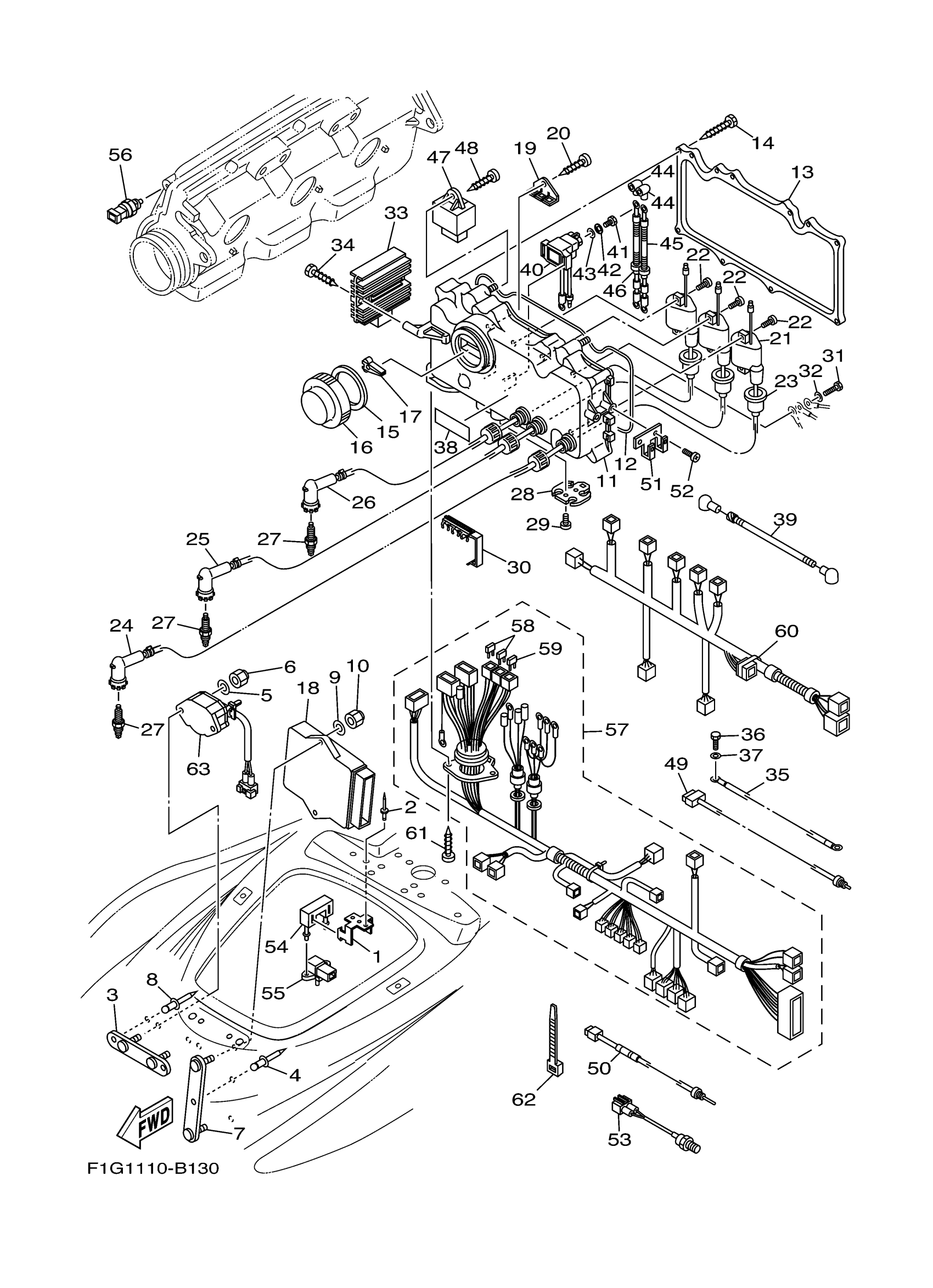

Yamaha GP1300CB (GP1300R) F1G11 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

2

RIVET (EU0)

90267-48938-00

$5.00

3

BRACKET, SENSOR

F1G-U824F-00-00

Unavailable

4

RIVET, BLIND

90267-489U6-00

$1.37

5

WASHER

9299R-06200-00

$0.43

6

NUT, NYLON

9572R-06300-00

$2.80

7

BRACKET

F1G-U826C-00-00

Unavailable

8

RIVET, BLIND

90267-489U6-00

$1.37

9

WASHER

9299R-06200-00

$0.43

10

NUT, NYLON

9572R-06300-00

$2.80

11

HOUSING

60T-8552A-00-00

$136.35

12

GASKET, TERMINAL

60T-81921-00-00

Unavailable

13

COVER, CASE

60T-8552E-00-00

$45.44

14

SCREW, TAPPING

97780-60430-00

$3.61

15

. GASKET

66V-81844-00-00

Unavailable

16

. CAP

66V-8132W-00-00

$11.85

17

. PULLER, FUSE

67F-2812A-00-00

$4.11

18

ENGINE CONTROL UNIT ASSY

60T-8591A-10-00

$2,575.74

19

STAY, FUSE HOLDER

60E-82153-00-00

$8.32

20

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

21

IGNITION COIL ASSY

66V-85570-00-00

$143.92

22

SCREW, TAPPING(65J)

97780-60625-00

$2.64

23

GROMMET

66V-82355-00-00

Unavailable

24

HIGH TENSION CORD ASSY 1

66V-82340-01-00

Unavailable

25

HIGH TENSION CORD ASSY 1

66V-82340-11-00

Unavailable

26

HIGH TENSION CORD ASSY 1

67X-82340-21-00

Unavailable

27

BR8ES-11 NGK 4PK

BR8-ES110-00-00

$5.02

28

COVER

60T-85525-00-00

$3.64

29

SCREW, TAPPING

97780-60425-00

Unavailable

30

CLAMP, CORD

65U-81317-10-00

$7.27

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

RECTIFIER & REGULATOR ASSY

6S8-81960-00-00

$163.22

34

SCREW, TAPPING

97780-60430-00

$3.61

35

WIRE, LEAD 2

66V-82127-00-00

Unavailable

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

37

WASHER, PLAIN (646)

92990-06600-00

Unavailable

38

MARK 3

6R7-83623-40-00

$7.27

39

WIRE, LEAD

66V-82117-00-00

$124.23

40

STARTER RELAY ASSY

68N-81940-00-00

$85.05

41

BOLT

97085-06010-00

$1.21

42

WASHER, SPRING

92995-06100-00

$2.95

43

WASHER, PLAIN (646)

92990-06600-00

Unavailable

44

COVER, LEAD WIRE

66V-82119-00-00

$2.27

45

WIRE, LEAD

60T-82117-10-00

$113.62

46

WIRE, LEAD

60T-82117-20-00

$121.20

47

RELAY ASSY

60E-81950-00-00

$137.93

48

SCREW, TAPPING(65J)

97780-60625-00

$2.64

49

THERMOSENSOR ASSY

66V-85790-10-00

$122.88

50

SENSOR, EXT, TEMP.

66V-85881-00-00

$280.29

51

BRACKET

60T-85542-00-00

$7.27

52

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

53

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

54

GROMMET

60T-82355-00-00

Unavailable

55

SENSOR, PRESSURE

60E-82380-00-00

Unavailable

56

THERMOSENSOR

65L-85886-00-00

$57.25

57

WIRE HARNESS ASSY 1

60T-8259L-01-00

Unavailable

58

. FUSE (3A)

67F-82151-30-00

$4.69

59

FUSE

5JJ-82151-20-00

Unavailable

60

WIRE HARNESS ASSY 2

60T-8259M-00-00

Unavailable

61

SCREW, TAPPING

97780-60425-00

Unavailable

62

CLAMP

90465-11M52-00

$3.52

63

SWITCH ASSY

60E-8259E-00-00

$142.53
