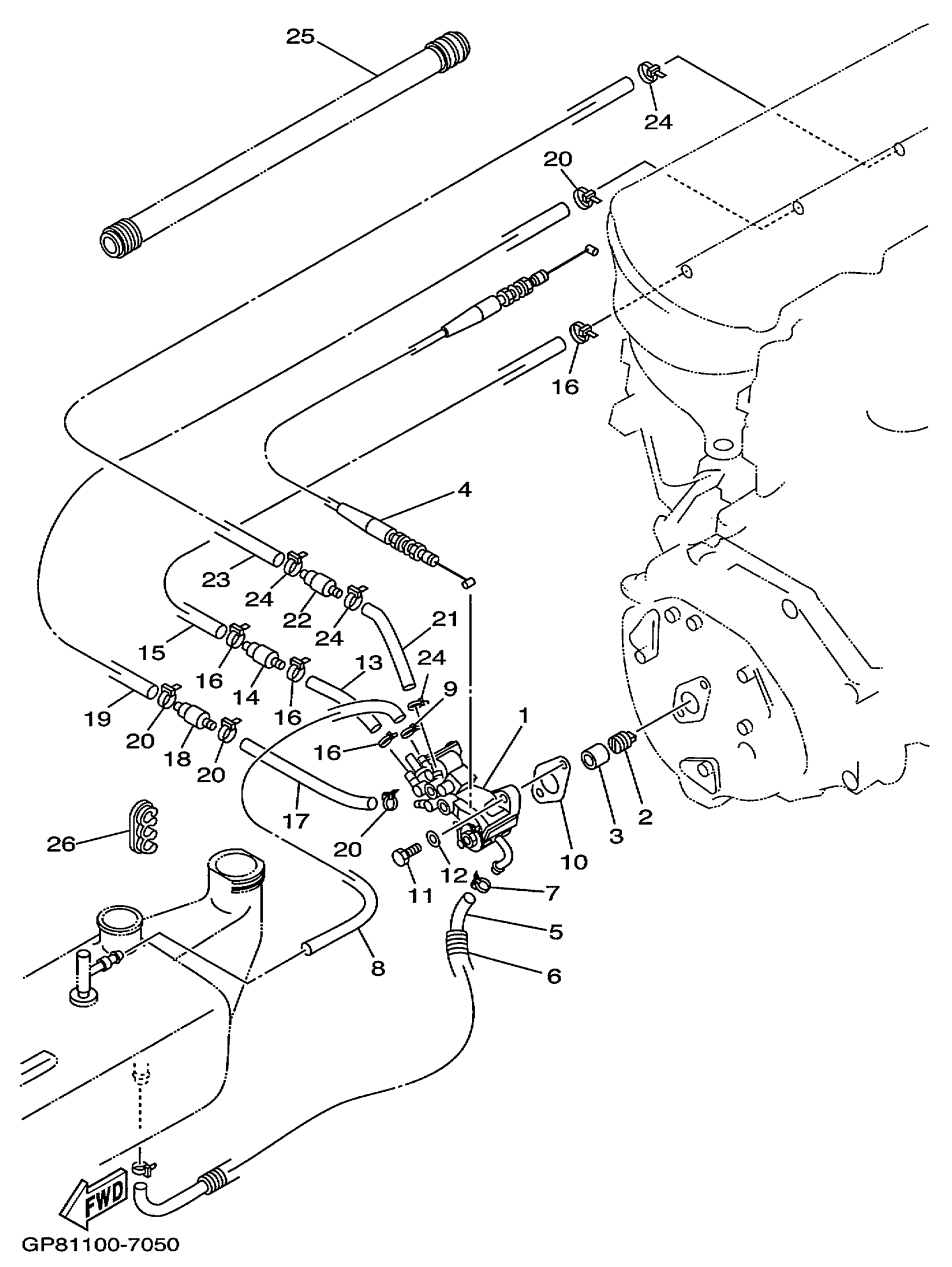

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 OIL PUMP Diagram
#
Description
Price
1
OIL INJECTION PUMP ASSEMBLY
65U-13200-00-00
Unavailable
2
JOINT
65U-13132-00-00
Unavailable
3
RING, RUBBER
65U-13554-00-00
Unavailable
4
PUMP CABLE ASSEMBLY
65U-26320-00-00
Unavailable
6
HOSE
90446-17M75-00
Unavailable
7
CLAMP
90465-10098-00
Unavailable
8
HOSE (L390)
90445-07M90-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
11
BOLT(7U8)
97080-06020-00
Unavailable
13
HOSE(62T)
90446-07M48-00
Unavailable
14
VALVE, CHECK
6R3-13183-10-00
Unavailable
15
HOSE(62T)
90446-07M48-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
HOSE(62T)
90446-07M48-00
Unavailable
18
VALVE, CHECK
6R3-13183-10-00
Unavailable
19
HOSE(62T)
90446-07M48-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
HOSE(62T)
90446-07M48-00
Unavailable
22
VALVE, CHECK
6R3-13183-10-00
Unavailable
23
HOSE
90446-07M74-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
HOSE
90446-24M83-00
Unavailable
26
CLAMP
90464-07M05-00
Unavailable
