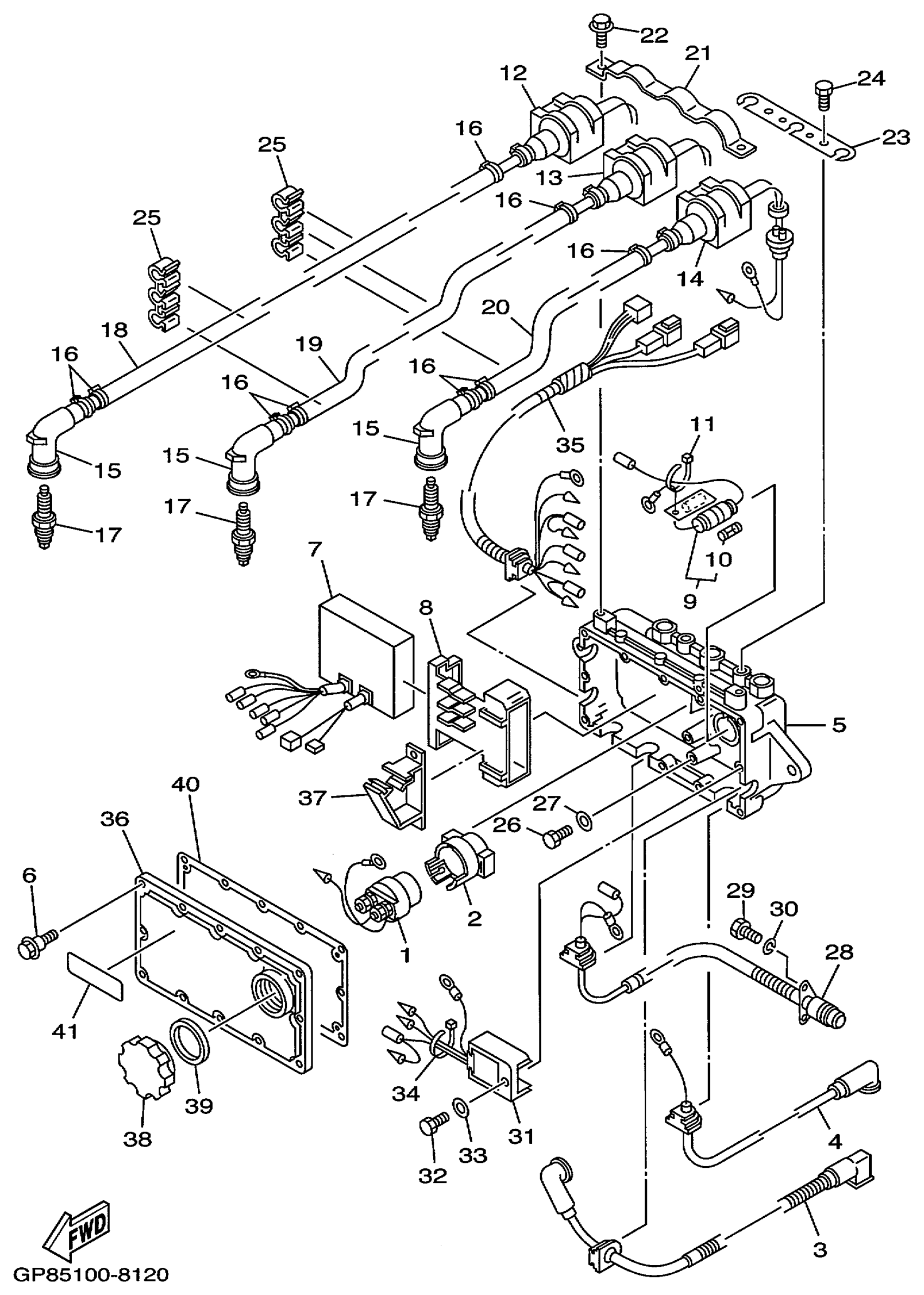

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 ELECTRICAL 1 Diagram
#
1
STARTER RELAY ASSY
6G1-81941-10-00
Unavailable
2
HOLDER, RELAY
6M6-81952-01-00
Unavailable
3
WIRE, LEAD
65U-82117-10-00
Unavailable
4
WIRE, LEAD
6M6-82117-21-00
Unavailable
5
HOUSING
65U-8552A-00-94
Unavailable
6
BOLT
90109-05MA0-00
$7.49
7
C.D.I. UNIT
65U-85540-00-00
Unavailable
8
BAND
65U-85546-00-00
Unavailable
9
FUSE HOLDER ASSY
65U-82150-00-00
Unavailable
10
FUSE (10A)
1E6-82151-00-00
$7.99
11
CLAMP
90465-10098-00
Unavailable
12
IGNITION COIL ASSY
65U-85570-00-00
Unavailable
13
IGNITION COIL ASSY
65U-85570-10-00
Unavailable
14
IGNITION COIL ASSY
65U-85570-20-00
Unavailable
15
PLUG CAP ASSY
63M-82370-01-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
BR8HS NGK SCREW TOP PLUG 4PK
BR8-HS000-00-00
Unavailable
18
TUBE, CORD
63M-82351-00-00
Unavailable
19
TUBE, CORD
65U-82351-00-00
Unavailable
20
TUBE, CORD
65U-82351-10-00
Unavailable
21
BRACKET
65U-85542-00-00
Unavailable
22
BOLT, HEXAGON W/W DEEP RECESS
97E95-08516-00
Unavailable
23
COVER
65U-85525-00-00
Unavailable
24
BOLT(GH1)
97080-06012-00
Unavailable
25
CLAMP, CORD
65U-81317-10-00
Unavailable
26
BOLT(GH1)
97080-06012-00
Unavailable
27
WASHER, PLAIN (646)
92990-06600-00
Unavailable
28
THERMOSWITCH ASSEMBLY
65U-82560-00-00
Unavailable
29
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
RECTIFIER & REGULATOR ASSY
6H2-81960-00-00
Unavailable
32
BOLT(7U8)
97080-06020-00
Unavailable
33
WASHER, PLAIN (646)
92990-06600-00
Unavailable
34
CLAMP
90465-10098-00
Unavailable
35
EXTENSION, WIRE LEAD
65U-82553-00-00
Unavailable
36
COVER, CASE
65U-8552E-00-00
Unavailable
37
CLAMP
90464-06M29-00
Unavailable
38
CAP
6M6-8132W-00-00
Unavailable
39
GASKET
6M6-81844-00-00
Unavailable
40
GASKET, TERMINAL
65U-81921-00-00
Unavailable
41
MARK 3
6R7-83623-40-00
Unavailable
