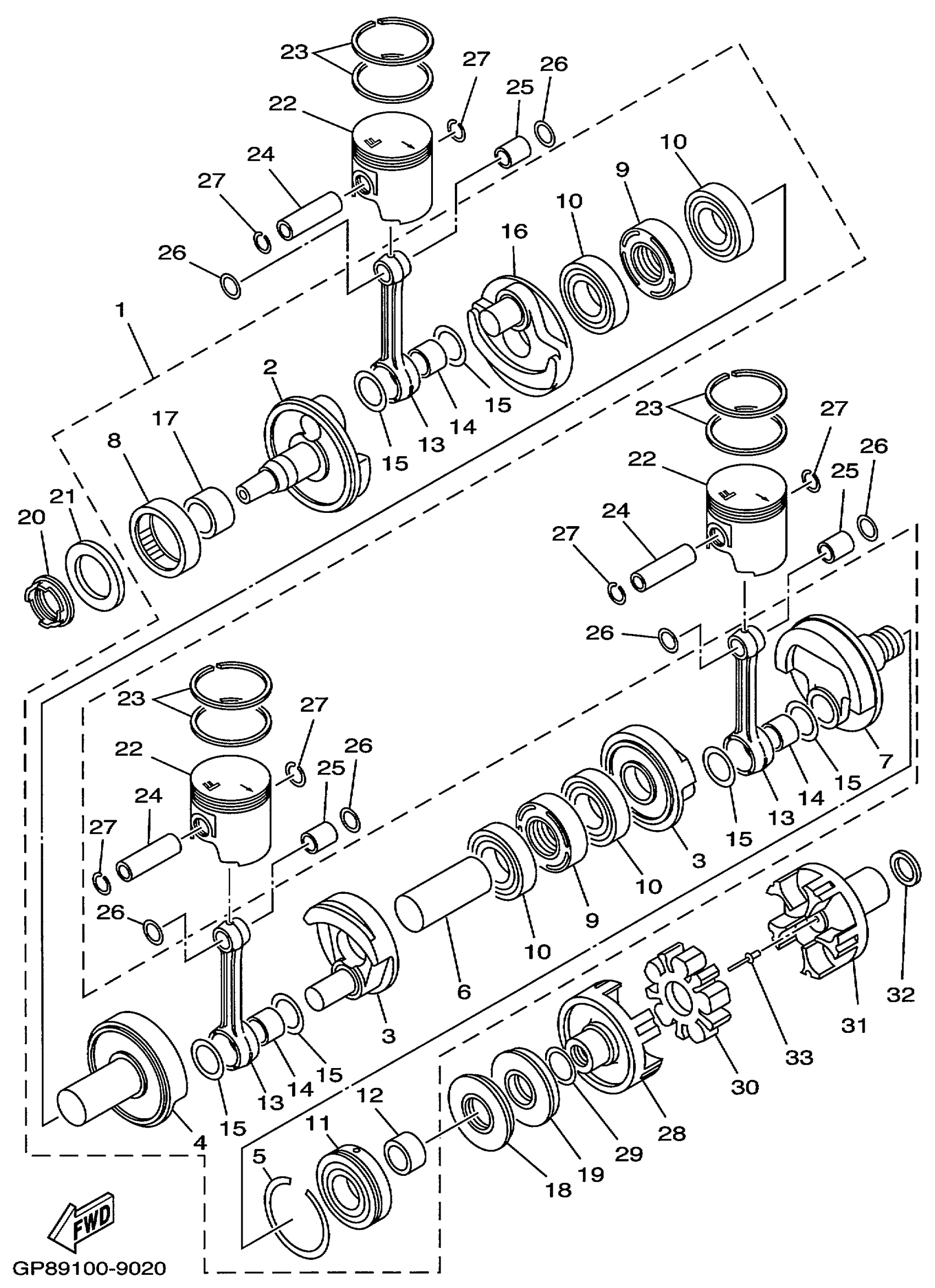

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

65U-11400-00-00

$2,513.62

2

. CRANK 1

6M6-11412-00-00

$180.29

3

. CRANK 2

6M6-11422-00-00

$192.41

4

. CRANK 5

63M-11452-00-00

$186.35

5

CIRCLIP (834)

93440-80023-00

$12.59

6

. CRANK 3

6M6-11431-10-00

$148.47

7

. CRANK 4

6M6-11442-01-00

$140.89

8

. BEARING

93390-000U4-00

$230.29

9

. SEAL, LABYRINTH 1

65U-11515-00-00

$53.99

10

BEARING (8U9)

93306-20712-00

$66.94

11

BEARING(6M6)

93306-307U3-00

$72.67

12

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$22.59

13

. ROD, CONNECTING

64X-11651-01-00

$103.02

14

. BEARING

93310-525U4-00

$99.98

15

WASHER(8AY)

90209-25325-00

$16.82

16

. CRANK 2

65U-11422-00-00

$174.23

17

. COLLAR

90387-32M02-00

$81.80

18

. OIL SEAL

93102-36M33-00

$15.55

19

. OIL SEAL

93101-36M46-00

$17.41

20

. OIL SEAL

93103-32M01-00

$14.81

21

SPACER

65U-11445-00-00

Unavailable

22

PISTON (STD)

65U-11631-02-90

$171.20

22

PISTON (0.25MM OS)

65U-11635-02-00

$171.20

22

PISTON (0.50MM OS)

65U-11636-02-00

$98.44

23

PISTON RING SET (STD)

65U-11603-01-00

$86.35

23

PISTON RING SET (0.25MM OS)

65U-11604-01-00

Unavailable

23

PISTON RING SET (0.50MM OS)

65U-11605-01-00

Unavailable

24

PIN, PISTON

62T-11633-00-00

$18.15

25

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$34.68

26

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

27

CIRCLIP (8H0)

93450-21053-00

Unavailable

28

FLANGE, COUPLING

63M-45813-01-94

Unavailable

29

SEAL

62T-45127-01-00

Unavailable

30

RUBBER SHAFT COUPLING

63M-4581J-00-00

$86.35

31

FLANGE, COUPLING

64T-45813-01-8P

$145.44

32

WASHER, PLATE

90201-24800-00

$1.37

33

RIVET, BLIND

90267-489UG-00

Unavailable
