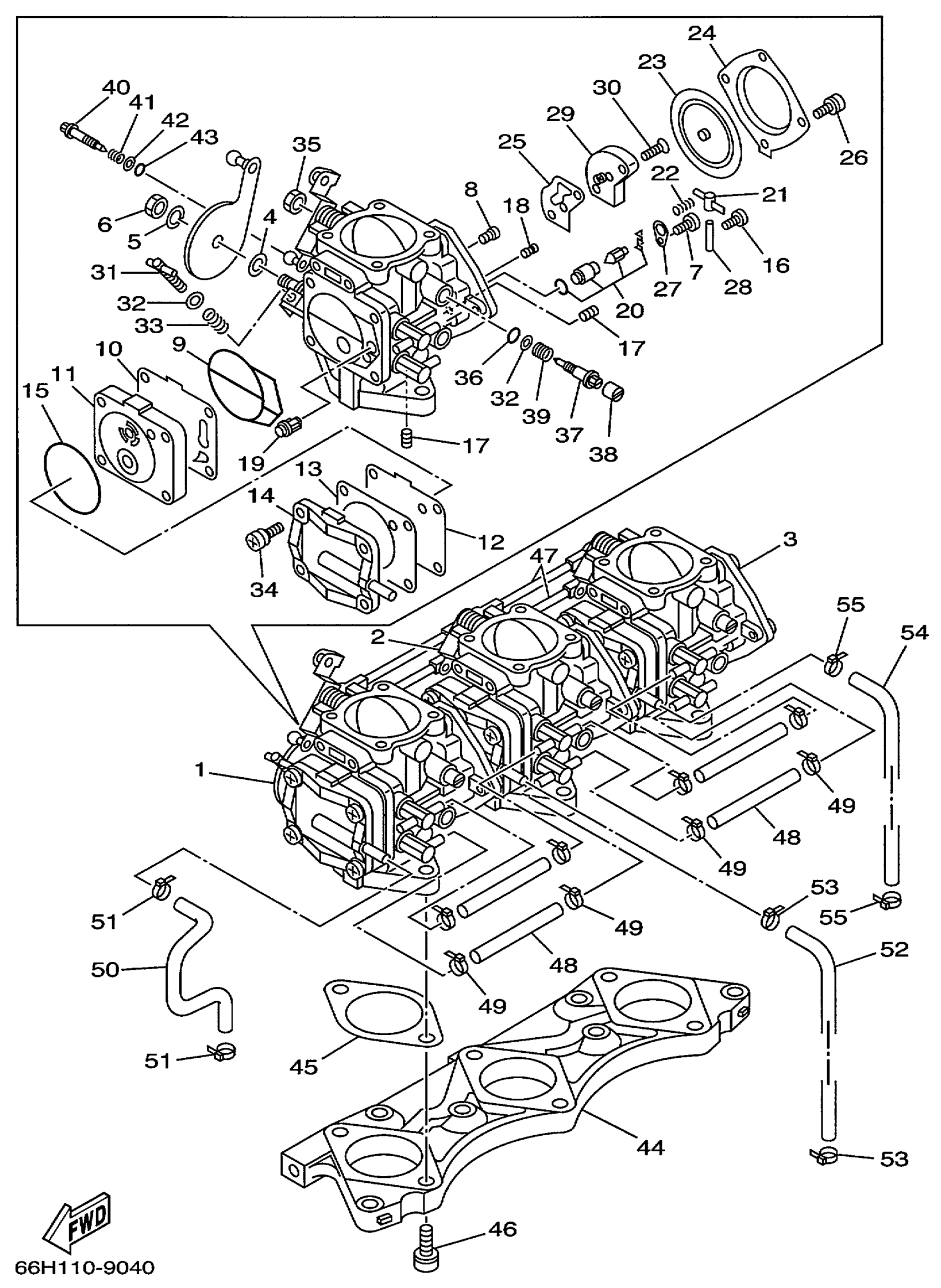

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
65U-14301-01-00
Unavailable
2
CARBURETOR ASSY 2
65U-14302-01-00
Unavailable
3
CARBURETOR ASSY 3
65U-14303-01-00
Unavailable
4
. COLLAR
6K8-14534-10-00
Unavailable
5
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
6
. NUT
95380-08700-00
Unavailable
7
. SCREW
6M6-14503-00-00
Unavailable
8
JET, MAIN (#135)
3G2-14231-27-00
$13.49
9
. O-RING
6K8-14564-00-00
Unavailable
10
. DIAPHRAGM
6K8-24411-20-00
Unavailable
11
BODY 2
6M6-24413-02-00
Unavailable
12
. VALVE, CHECK
6K8-24421-10-00
Unavailable
13
. GASKET, FUEL PUMP 1
6K8-24431-20-00
Unavailable
14
. COVER
6K8-24452-10-00
Unavailable
15
. O-RING
6K8-14563-00-00
Unavailable
16
. SCREW
6K8-14503-02-00
Unavailable
17
. SCREW
6K8-14521-10-00
Unavailable
18
JET, MAIN (# 95)
830-14231-19-00
Unavailable
18
JET, MAIN (#100)
830-14231-20-00
Unavailable
18
JET,MAIN #97.5
830-1423A-70-00
Unavailable
19
. STRAINER
6R7-14569-00-00
Unavailable
20
NEEDLE
64T-14916-01-00
Unavailable
21
. ARM, FLOAT
6K8-14547-01-00
Unavailable
22
. SPRING
63M-14253-00-00
Unavailable
23
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
24
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
25
. GASKET
6K8-14536-11-00
Unavailable
26
. SCREW
6K8-14591-10-00
Unavailable
27
. PLATE
6K8-14527-11-00
Unavailable
28
. PIN, FLOAT
439-14186-00-00
Unavailable
29
. BODY 1
6R7-24412-01-00
Unavailable
30
SCREW, STOP
6K8-14523-12-00
Unavailable
31
SCREW,ADJUST
6M6-14521-01-00
Unavailable
32
WASHER,NEEDLE
812-14235-00-00
Unavailable
33
. SPRING, THROTTLE STOP
47X-14133-00-00
Unavailable
34
SCREW, WITH WASHER(61B)
97985-05330-00
Unavailable
35
. NUT
95382-06700-00
Unavailable
36
. O-RING
6K8-14562-00-00
Unavailable
37
. PLATE, NEEDLE FITTING
6K8-14946-10-00
Unavailable
38
. CAP, CARBURETOR
6K8-14471-10-00
Unavailable
39
SPRING, THROTTLE VALVE
68V-14331-00-00
Unavailable
40
. SCREW, PILOT
65U-14923-10-00
Unavailable
41
. SPRING
6K8-14589-00-00
Unavailable
42
WASHER, NEEDLE
822-14235-00-00
Unavailable
43
O-RING
583-14561-00-00
Unavailable
44
PLATE
65U-14243-00-00
Unavailable
45
GASKET
64X-14398-00-00
Unavailable
46
BOLT, HOLDING
64X-14162-00-00
Unavailable
47
ROD, ACCEL LEVER
65U-41217-00-00
Unavailable
48
HOSE
90445-10MA7-00
Unavailable
49
CLAMP
90465-10098-00
Unavailable
50
PIPE 5
65U-24315-01-00
Unavailable
51
CLAMP
90465-10098-00
Unavailable
52
PIPE 4
65U-24314-01-00
Unavailable
53
CLAMP
90465-10098-00
Unavailable
54
PIPE 4
65U-24314-01-00
Unavailable
55
CLAMP
90465-10098-00
Unavailable
