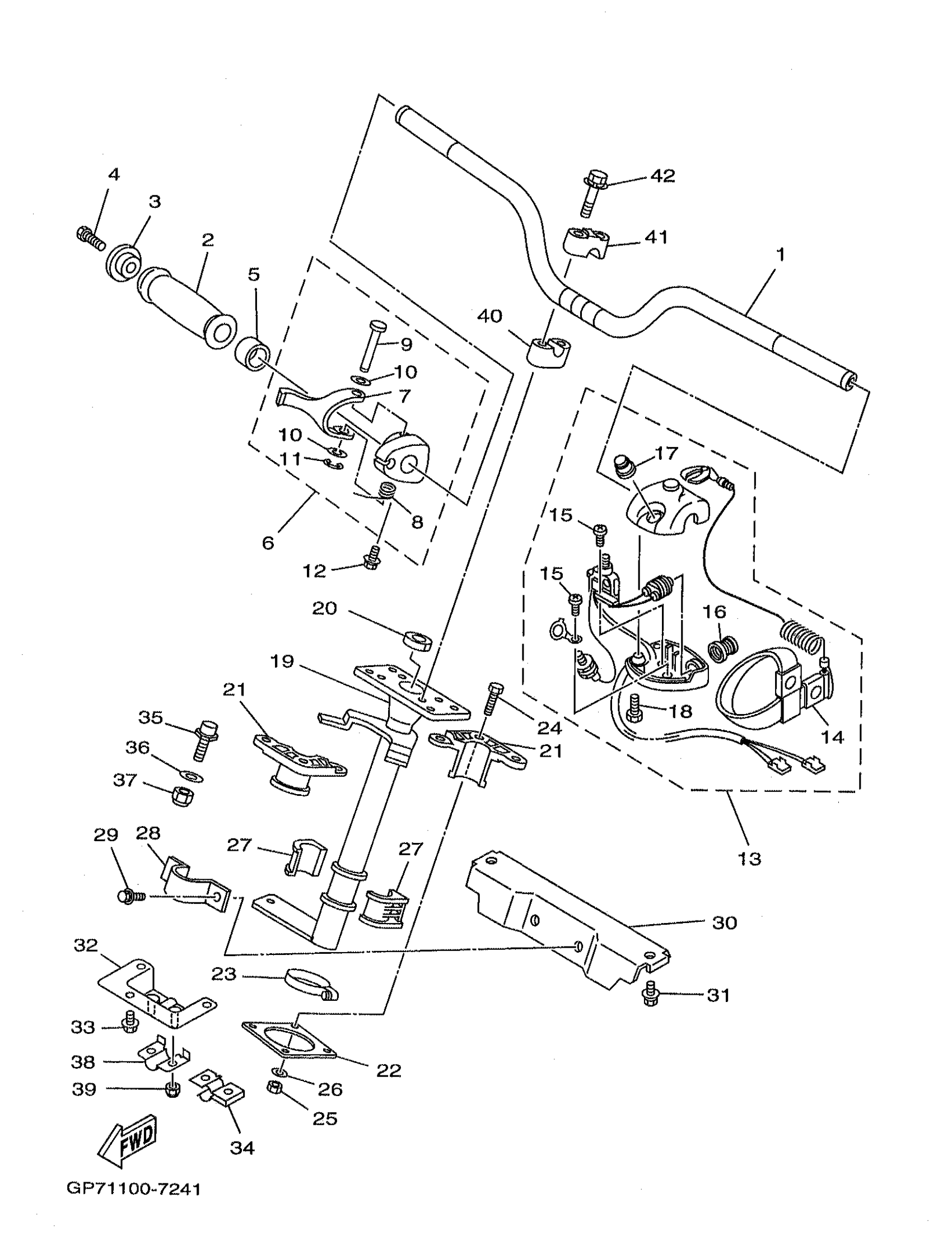

Yamaha GP1200W (WAVE RUNNER GP1200) 1998 STEERING 1 Diagram
#
1
HANDLE
GJ1-U1552-03-00
Unavailable
2
GRIP, HANDLE
GP7-U155D-01-00
Unavailable
3
GRIP, END
GP7-U155F-00-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-05908-00
Unavailable
5
SPACER(1LX)
90560-22281-00
$13.99
6
THROTTLE LEVER ASSY
GJ1-67250-01-00
Unavailable
7
. LEVER, THROTTLE
GJ1-67255-00-00
Unavailable
8
. SPRING
EW2-67256-00-00
Unavailable
9
. SHAFT
EW2-67257-01-00
Unavailable
10
WASHER, PLAIN (646)
92990-05600-00
$0.80
11
CIRCLIP (EU0)
99080-04600-00
Unavailable
12
SCREW, WITH WASHER
90159-059U2-00
Unavailable
13
SWITCH BOX ASSY
GP7-68310-01-00
Unavailable
14
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
15
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
16
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
17
. START BUTTON COMP
FK7-68313-02-00
Unavailable
18
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
19
COLUMN, STEERING
GP7-61541-00-00
Unavailable
20
PACKING, STEERING COLUMN
GH1-U1469-00-00
Unavailable
21
BEARING, COLUMN
GH1-6141B-00-00
Unavailable
22
SEAL, RUBBER
GH1-U143C-30-00
Unavailable
23
BAND, HOSE 42
90601-142U6-00
Unavailable
24
BOLT(JF7)
97080-06030-00
Unavailable
25
NUT, SELF-LOCKING
95720-06300-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
BEARING, STEERING
GH1-6141D-01-00
Unavailable
28
JOINT, BEARING
EU0-61588-00-00
Unavailable
29
BOLT, WITH WASHER
90119-08800-00
Unavailable
30
BRACKET, BEARING
GP7-61433-00-00
Unavailable
31
BOLT, WITH WASHER
90119-08800-00
Unavailable
32
BRACKET, STOPPER CABLE
GP7-61467-00-00
Unavailable
33
BOLT, WITH WASHER
90119-06830-00
Unavailable
34
HOLDER, STOPPER
GP7-6146K-01-00
Unavailable
35
PIN, STOPPER
FN8-6131B-00-00
Unavailable
36
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
37
NUT, NYLON (FN8)
95720-10300-00
Unavailable
38
STOPPER, CABLE
GP7-61468-00-00
Unavailable
39
NUT, SELF-LOCKING
95720-06300-00
Unavailable
40
HOLDER, HANDLE UPPER
EU0-23814-02-00
Unavailable
41
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
42
BOLT,WITH WASHER
90119-08831-00
Unavailable
