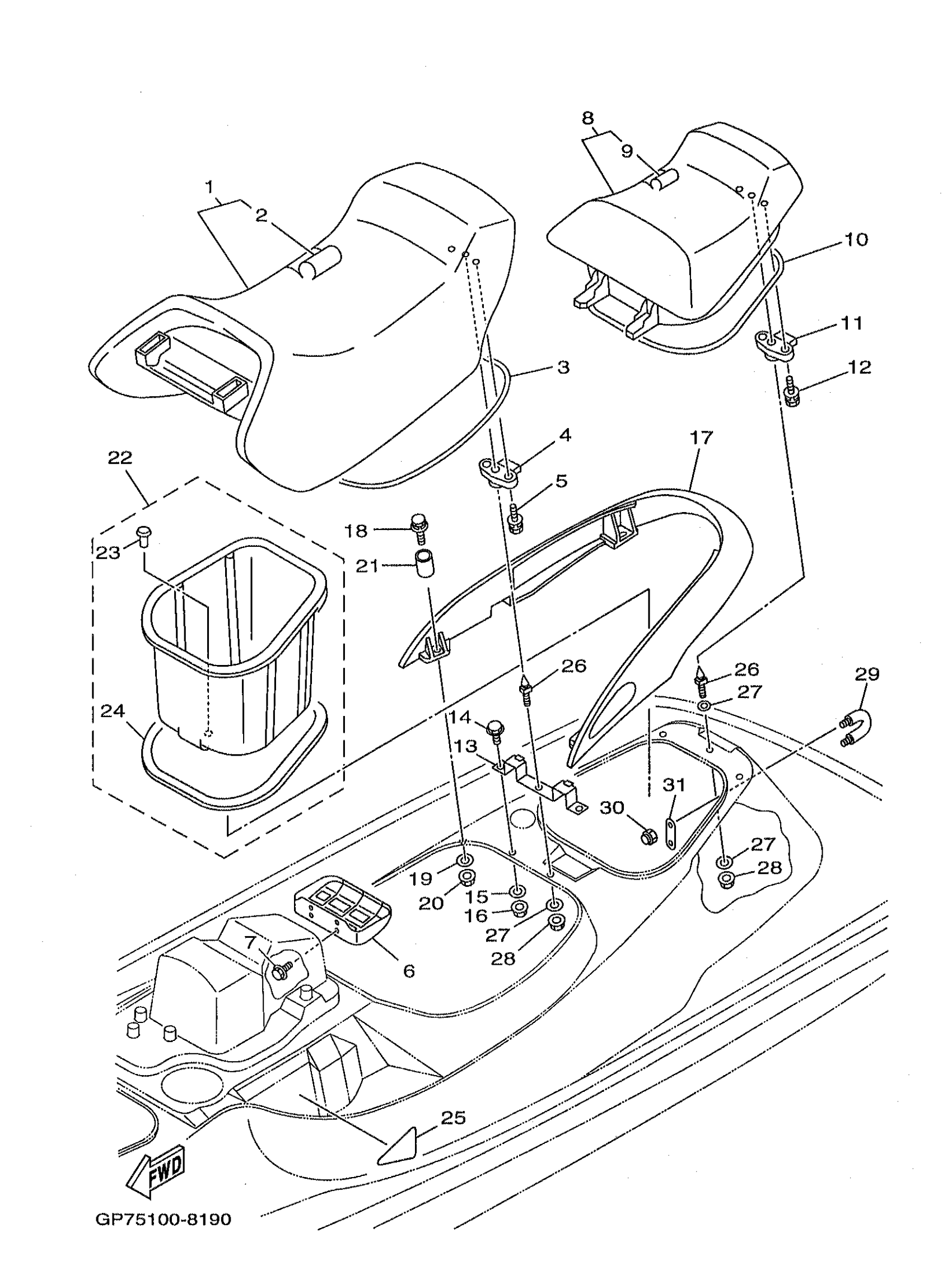

Yamaha GP1200W (WAVE RUNNER GP1200) 1998 SEAT UNDER LOCKER Diagram

#

Description

Price

1

DRIVER SEAT ASSEMBLY.1

GP8-U3710-13-00

Unavailable

2

. COVER, SEAT 1

GP8-U371B-10-00

Unavailable

3

. PACKING

GP7-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

GJ3-63850-03-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

STAY, SEAT 1

GP7-U378C-00-00

Unavailable

7

BOLT, WITH WASHER

90119-08800-00

Unavailable

8

DAMPER, SEAT ASSEMBLY

GP8-U3760-11-00

Unavailable

9

. COVER, SEAT

GP8-U372B-10-00

Unavailable

10

. PACKING 3

GP7-U266B-00-00

Unavailable

11

SEAT LOCK ASSY

GJ3-63850-03-00

Unavailable

12

BOLT, WITH WASHER

90119-06808-00

Unavailable

13

STAY, SEAT 2

GP7-6378D-00-00

Unavailable

14

BOLT

97080-10025-00

Unavailable

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

NUT, NYLON (FN8)

95720-10300-00

Unavailable

17

GRIP, HAND

GP7-6271B-00-00

Unavailable

18

BOLT, WITH WASHER(GA7)

90119-08932-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

21

COLLAR

90387-08924-00

Unavailable

22

UNDER LOCK ASSY

GP7-U474A-00-00

Unavailable

23

. PLUG, BLIND

90605-502U1-00

Unavailable

24

. PACKING 5

GP7-U266D-03-00

Unavailable

25

PAD, HATCH 2

GP7-U517N-01-00

Unavailable

26

PIN

GH1-U3774-00-00

Unavailable

27

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

28

NUT, NYLON (FN8)

95720-10300-00

Unavailable

29

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

30

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

31

PLATE A

GP7-U4953-10-00

Unavailable
