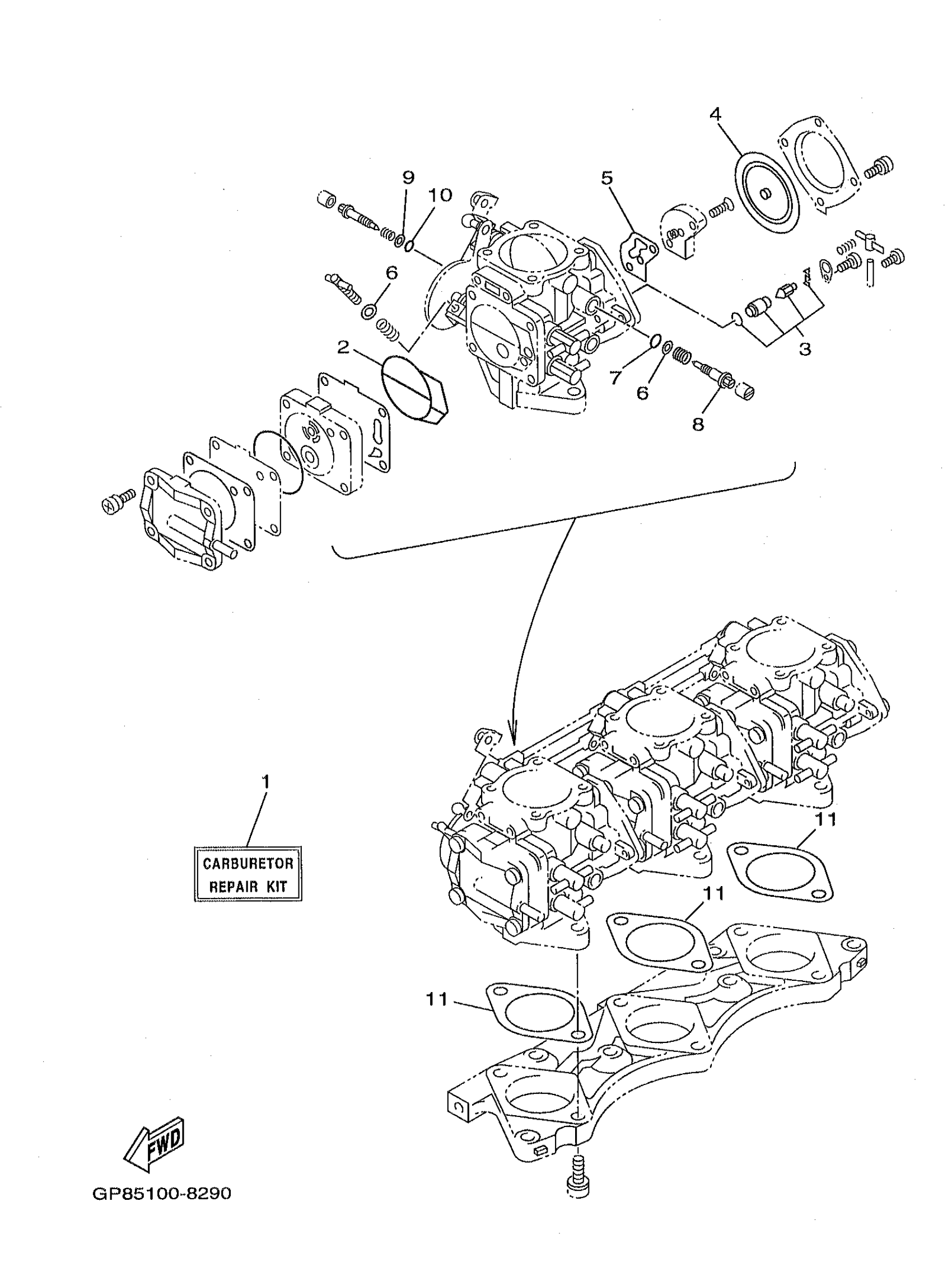

Yamaha GP1200W (WAVE RUNNER GP1200) 1998 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

65U-W0093-00-00

$289.16

2

. O-RING

6K8-14564-00-00

$8.51

3

NEEDLE

64T-14916-01-00

$49.49

4

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

5

. GASKET

6K8-14536-11-00

$8.14

6

WASHER,NEEDLE

812-14235-00-00

$2.44

7

. O-RING

6K8-14562-00-00

$1.88

8

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

9

WASHER, NEEDLE

822-14235-00-00

$3.63

10

O-RING

583-14561-00-00

$4.44

11

GASKET

64X-14398-00-00

$28.52
