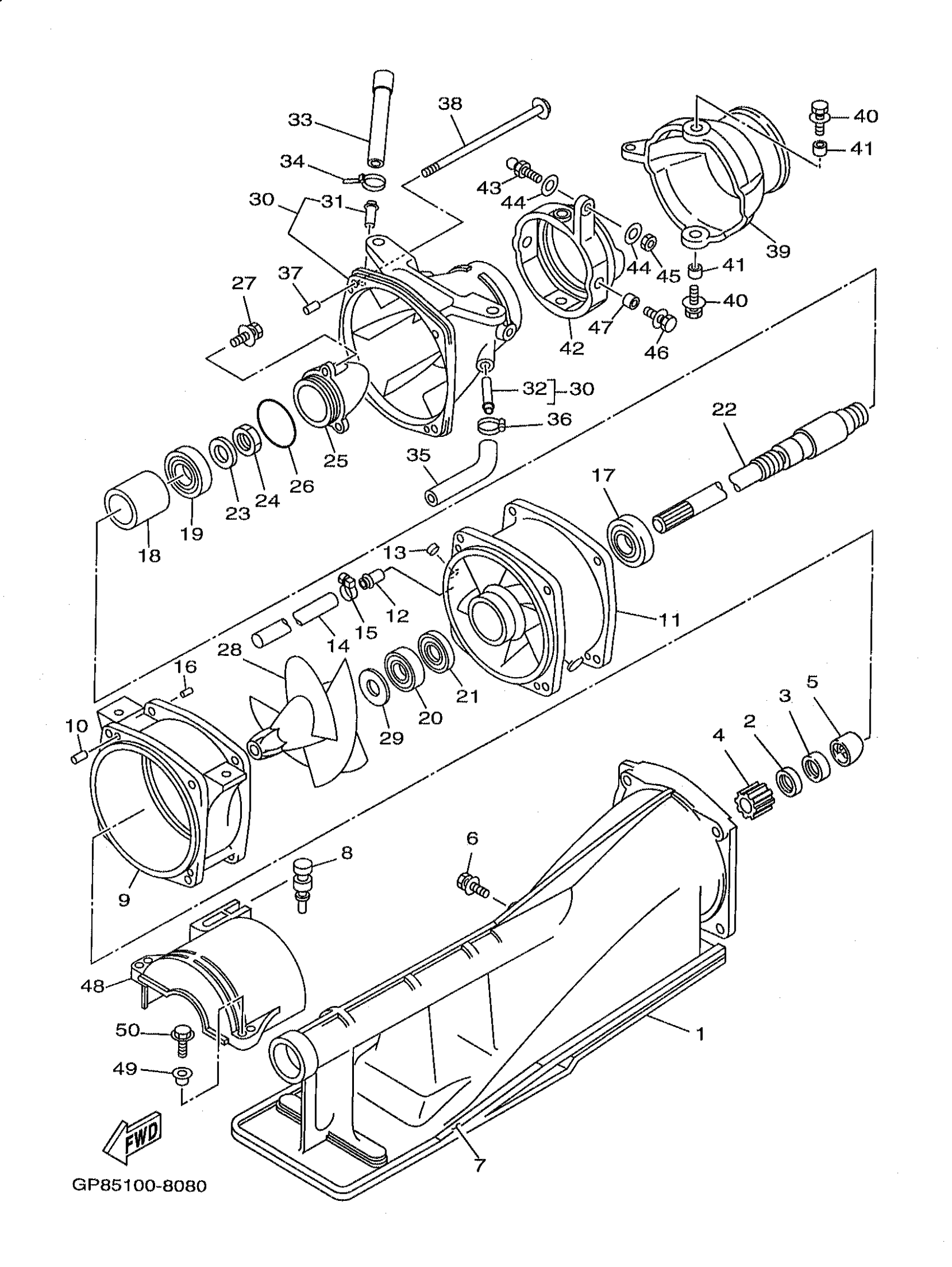

Yamaha GP1200W (WAVE RUNNER GP1200) 1998 JET UNIT 1 Diagram
#
1
DUCT, INTAKE
65U-R1311-00-00
Unavailable
2
OIL SEAL
93102-17M49-00
$12.49
3
OIL SEAL
93102-17M50-00
$26.99
4
BUSHING, DRIVE SHAFT
65V-45318-00-00
Unavailable
5
SPACER
65U-R1348-01-00
Unavailable
6
BOLT, WITH WASHER
90119-06892-00
Unavailable
7
. FELT, PACKING
6R8-51367-01-00
Unavailable
8
GROMMET(6R7)
90480-06M46-00
$12.49
9
HOUSING, IMPELLER
63M-51312-02-94
Unavailable
10
PIN, DOWEL (614)
93606-12019-00
$4.24
11
DUCT, IMPELLER
63M-51315-02-00
Unavailable
12
NIPPLE
65A-R1129-10-00
Unavailable
13
PLUG
90331-12M05-00
$7.49
14
HOSE (L108)
90445-18M03-00
$20.99
15
BAND, HOSE 18
90601-118UF-00
Unavailable
16
PIN, DOWEL (614)
93606-12019-00
$4.24
17
BEARING (6K8)
93306-205U1-00
Unavailable
18
SPACER 1
65V-45538-00-00
Unavailable
19
BEARING
93306-304XB-00
Unavailable
20
OIL SEAL(6R7)
93102-25M34-00
Unavailable
21
OIL SEAL(6R7)
93101-25M50-00
Unavailable
22
SHAFT, DRIVE
65U-45511-00-00
Unavailable
23
958-58204-00 WASHER,PLAIN
92990-16200-00
Unavailable
24
NUT
95317-16700-00
Unavailable
25
CAP KIT
65A-R1326-10-KT
Unavailable
26
. O-RING
93210-46M16-00
Unavailable
27
BOLT,WITH WASHER
90119-06890-00
Unavailable
28
IMPELLER
66F-R1321-00-00
Unavailable
29
SPACER
62T-51348-00-00
Unavailable
30
NOZZLE
65U-R1318-10-00
Unavailable
31
. NIPPLE
65A-R1129-00-00
Unavailable
32
NIPPLE,HOSE
65A-R1334-01-00
Unavailable
33
PIPE 1
61X-51673-00-00
Unavailable
34
CLAMP
90465-10098-00
Unavailable
35
HOSE (L380)
90445-14M25-00
Unavailable
36
CLAMP
90465-10098-00
Unavailable
37
PIN, DOWEL (614)
93606-12019-00
$4.24
38
BOLT,WASHER BASED
90105-088D7-00
Unavailable
39
NOZZLE, DEFLECTOR
65U-R1313-00-00
Unavailable
40
BOLT, WITH WASHER
90119-08852-00
Unavailable
41
COLLAR(6R7)
90387-08M06-00
Unavailable
42
RING,TRIM
64Y-51190-00-94
Unavailable
43
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
44
WASHER,PLATE
90201-068M4-00
Unavailable
45
NUT(650)
95380-06700-00
Unavailable
46
BOLT, WITH WASHER
90119-08852-00
Unavailable
47
COLLAR
90387-08M08-00
Unavailable
48
COVER
65A-R1381-00-00
Unavailable
49
COLLAR
90387-06M60-00
Unavailable
50
BOLT, WITH WASHER
90119-06892-00
Unavailable
