1998 Yamaha Wave Runner GP1200 (GP1200W) Intake Diagram

← All diagrams

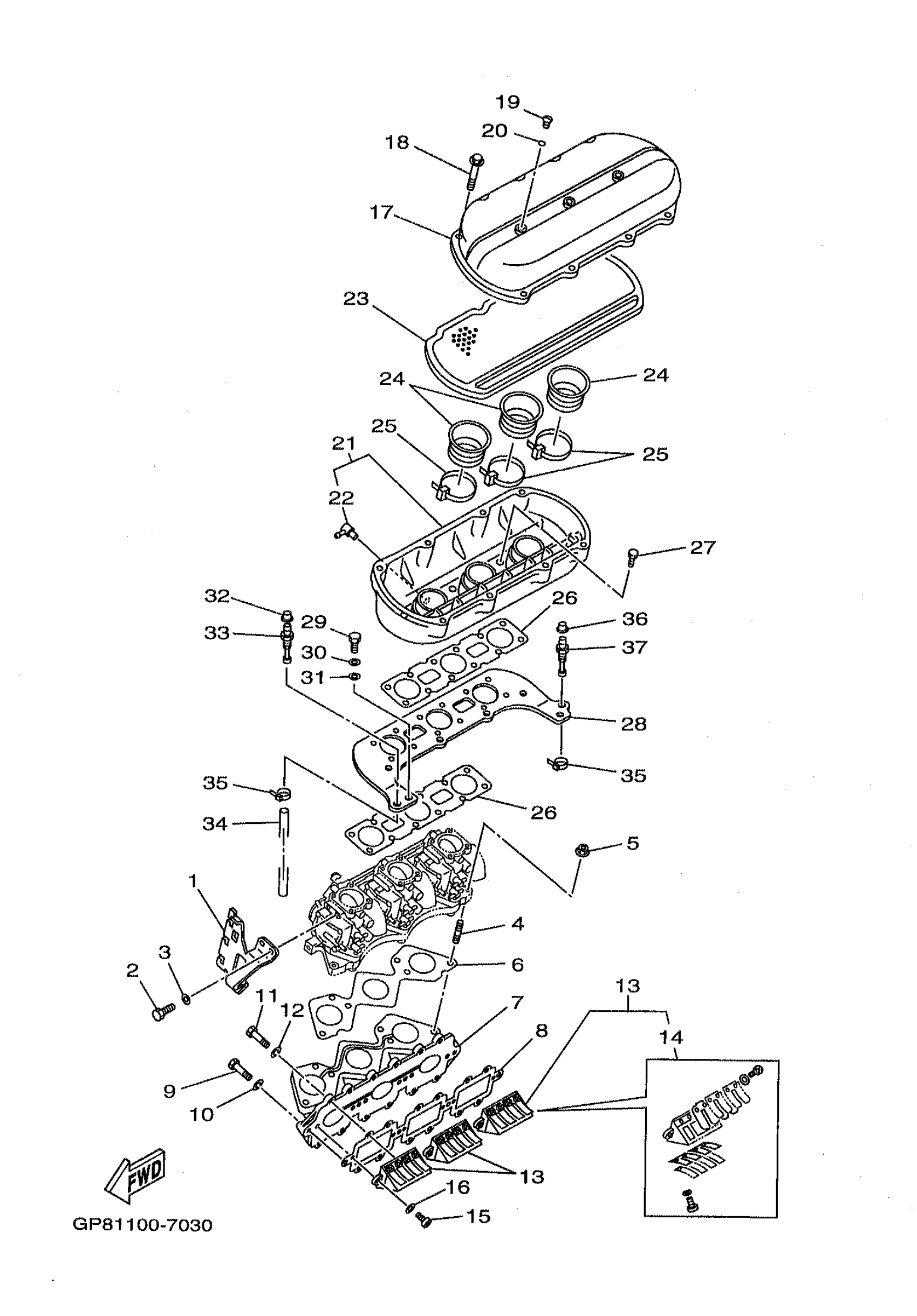

Find the part on the Intake diagram for your 1998 Yamaha Wave Runner GP1200 (GP1200W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP1200 (GP1200W) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE

65U-14527-01-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

BOLT,STUD

90116-08M55-00

1
Out of stock

4

BOLT, STUD

90116-08M60-00

1

$4.62

In stock

5

NUT

90179-08M15-00

1

$8.99

In stock

6

GASKET

65U-13556-00-00

1

$49.49

In stock

7

MANIFOLD, INTAKE

65U-13555-00-8S

1

$366.99

In stock

7

MANIFOLD, INTAKE

65U-13555-00-8S

1

$366.99

In stock

8

GASKET

65U-13566-00-00

1

$16.99

In stock

9

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

REED VALVE ASSY

65U-13610-00-00

1
Out of stock

14

. REED SET

65U-W0004-00-00

1
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

COVER, CARBURETOR 1

65U-14283-00-00

1
Out of stock

18

BOLT

90109-05MA0-00

—

$12.99

In stock

19

GROMMET

62T-14435-00-00

1

$3.95

In stock

20

. O-RING

93210-13M63-00

1

$3.84

In stock

21

COVER, CARBURETOR 2

65U-14284-01-4D

1

$430.99

In stock

21

COVER, CARBURETOR 2

65U-14284-02-8S

1
Out of stock

22

NIPPLE, HOSE

6E5-11372-01-00

1

$9.35

In stock

23

ELEMENT, AIR CLEANER

65U-14451-00-00

1
Out of stock

24

FUNNEL, AIR

65U-14469-00-00

1
Out of stock

25

CLAMP

90465-14M66-00

—

$3.37

In stock

26

GASKET, AIR COOLER COVER 1

65U-13674-00-00

1

$8.31

In stock

27

BOLT

90109-06M76-00

1

$2.77

In stock

28

PLATE

65U-14255-00-00

1
Out of stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

30

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

31

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

32

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

33

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

34

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

35

CLAMP

90465-10098-00

1

$2.24

In stock

36

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

37

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock
