1998 Yamaha Wave Runner GP1200 (GP1200W) Generator Diagram

← All diagrams

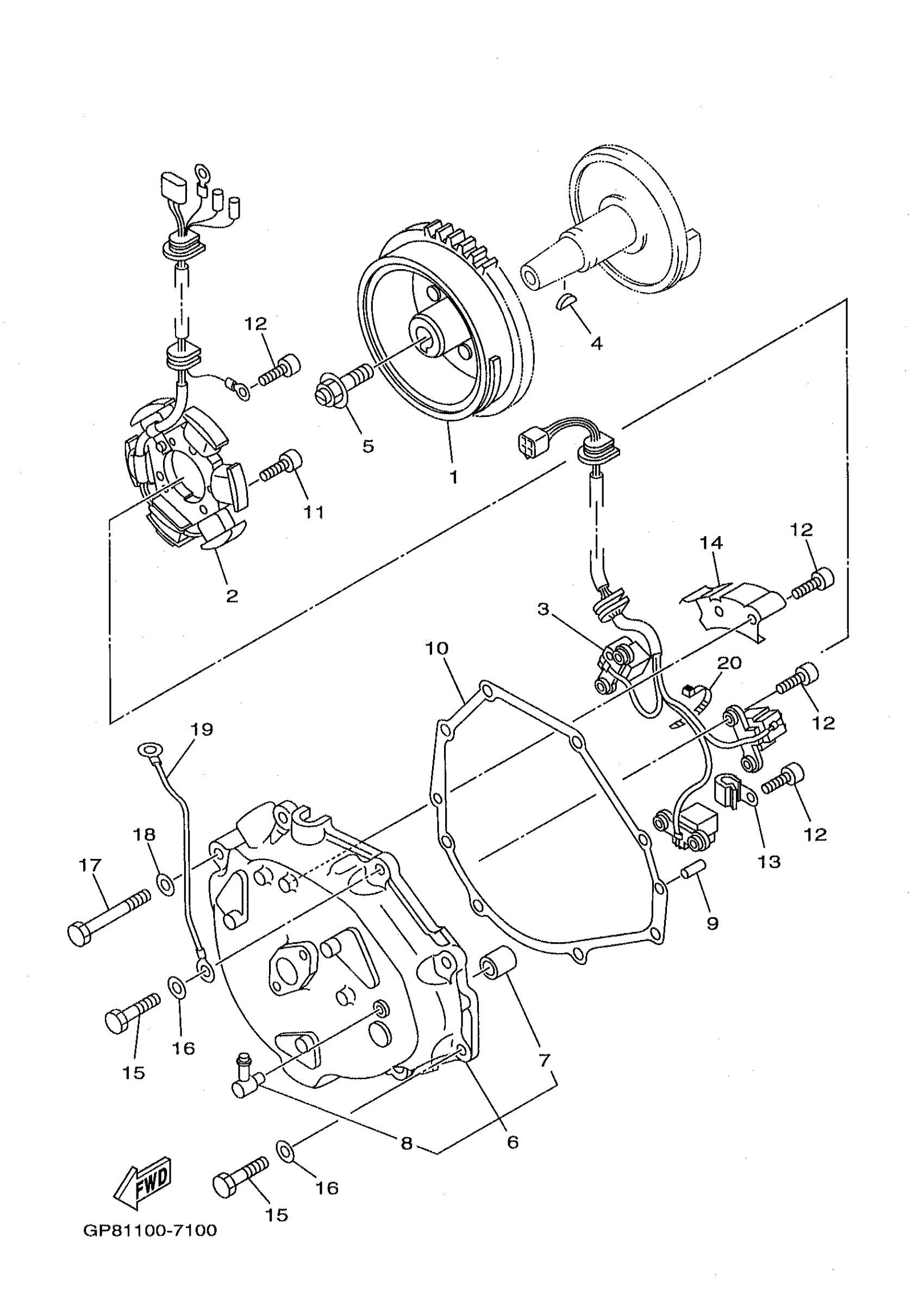

Find the part on the Generator diagram for your 1998 Yamaha Wave Runner GP1200 (GP1200W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP1200 (GP1200W) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

65U-85550-01-00

1
Out of stock

2

STATOR ASSY

65U-85510-01-00

1

$321.81

In stock

3

COIL, PULSER

65U-85580-00-00

1
Out of stock

4

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

5

BOLT(63M)

90109-10M72-00

1

$31.99

In stock

6

COVER, FLYWHEEL

65U-81337-00-4D

1
Out of stock

6

COVER, FLYWHEEL

65U-81337-00-8S

1

$285.99

In stock

7

. BUSH, SOLID

90380-12M29-00

1
Out of stock

8

. NIPPLE, HOSE

676-11372-00-00

1

$12.66

In stock

9

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

10

GASKET, HOLE COVER

63M-81365-00-00

1

$67.49

In stock

11

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

12

BOLT,SOCKET

91318-06014-00

1
Out of stock

13

CLAMP

90465-06M67-00

1
Out of stock

14

CLAMP

65U-81328-00-00

1

$9.22

In stock

15

BOLT, HEXAGON (FJ1)

97080-08030-00

1

$4.62

In stock

16

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

17

BOLT, HEXAGON

97095-08055-00

—

$4.92

In stock

18

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

19

WIRE LEAD

6H5-82117-00-00

1
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock
