1998 Yamaha Wave Runner GP1200 (GP1200W) Electrical 1 Diagram

← All diagrams

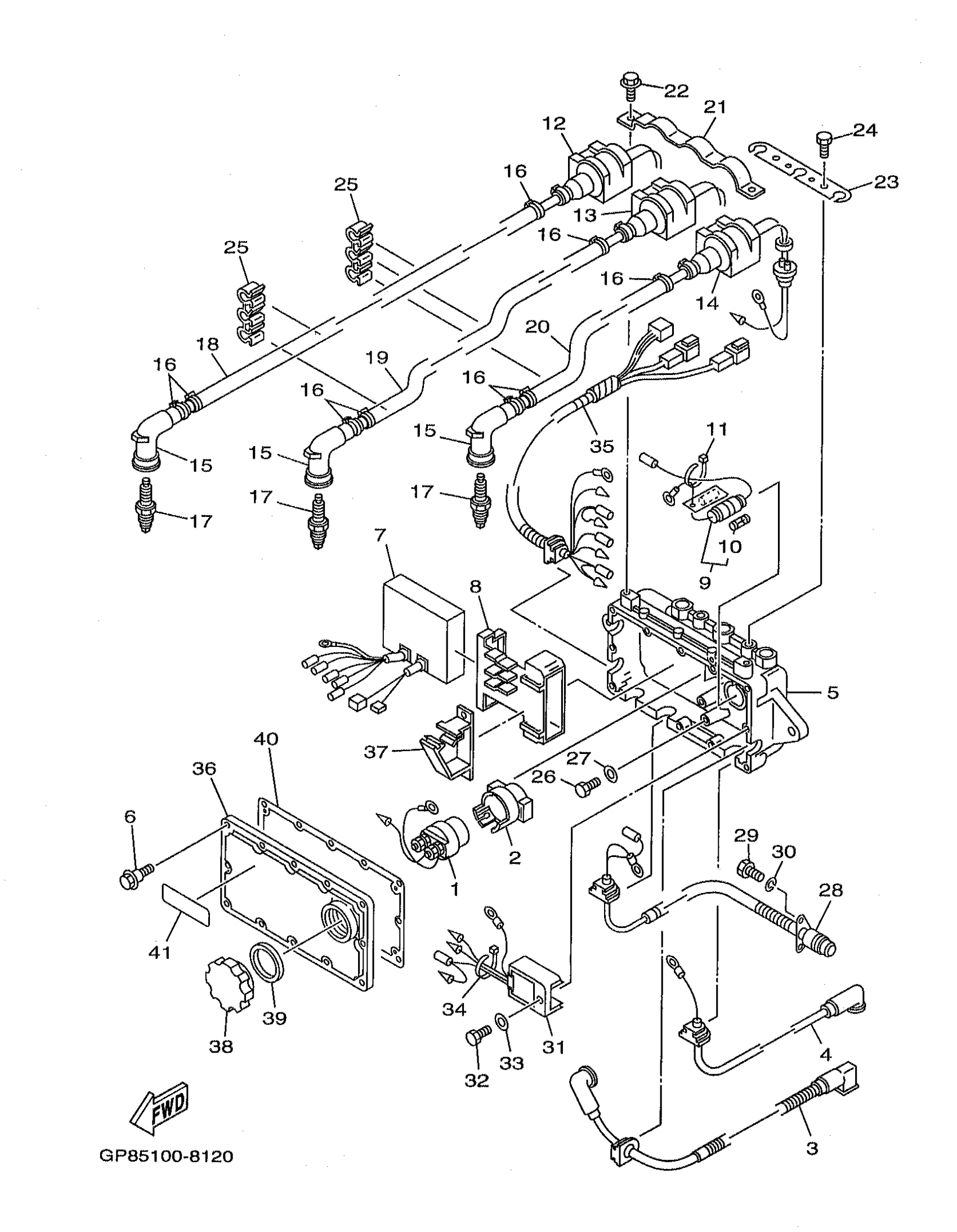

Find the part on the Electrical 1 diagram for your 1998 Yamaha Wave Runner GP1200 (GP1200W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP1200 (GP1200W) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER RELAY ASSY

6G1-81941-10-00

1

$71.27

In stock

2

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

3

WIRE, LEAD

65U-82117-10-00

1
Out of stock

4

WIRE, LEAD

6M6-82117-21-00

1
Out of stock

5

HOUSING

65U-8552A-00-94

1
Out of stock

6

BOLT

90109-05MA0-00

1

$12.99

In stock

7

C.D.I. UNIT

65U-85540-00-00

1
Out of stock

8

BAND

65U-85546-00-00

1
Out of stock

9

FUSE HOLDER ASSY

65U-82150-00-00

1
Out of stock

10

FUSE (10A)

1E6-82151-00-00

1

$6.22

In stock

11

CLAMP

90465-10098-00

1

$2.24

In stock

12

IGNITION COIL ASSY

65U-85570-00-00

1
Out of stock

13

IGNITION COIL ASSY

65U-85570-10-00

1
Out of stock

14

IGNITION COIL ASSY

65U-85570-20-00

1

$143.67

In stock

15

PLUG CAP ASSY

63M-82370-00-00

1

$71.27

In stock

15

PLUG CAP ASSY

63M-82370-01-00

1

$66.49

In stock

16

CLAMP

90465-10098-00

1

$2.24

In stock

17

1

$4.21

In stock

18

TUBE, CORD

63M-82351-00-00

1

$13.99

In stock

19

TUBE, CORD

65U-82351-00-00

1
Out of stock

20

TUBE, CORD

65U-82351-10-00

1
Out of stock

21

BRACKET

65U-85542-00-00

1

$38.99

In stock

22

BOLT, WITH WASHER

97513-08516-00

1
Out of stock

23

COVER

65U-85525-00-00

1
Out of stock

24

BOLT(GH1)

97080-06012-00

1
Out of stock

25

CLAMP, CORD

65U-81317-10-00

1

$7.38

In stock

26

BOLT(GH1)

97080-06012-00

1
Out of stock

27

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

28

THERMOSWITCH ASSEMBLY

65U-82560-00-00

1
Out of stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

1

$113.80

In stock

32

BOLT(7U8)

97080-06020-00

1
Out of stock

33

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

34

CLAMP

90465-10098-00

1

$2.24

In stock

35

EXTENSION, WIRE LEAD

65U-82553-00-00

1

$245.99

In stock

36

COVER, CASE

65U-8552E-00-00

1
Out of stock

37

CLAMP

90464-06M29-00

1

$6.46

In stock

38

CAP

6M6-8132W-00-00

1

$14.49

In stock

39

GASKET

6M6-81844-00-00

1

$10.99

In stock

40

GASKET, TERMINAL

65U-81921-00-00

1

$68.49

In stock

41

MARK 3

6R7-83623-40-00

1

$7.38

In stock
