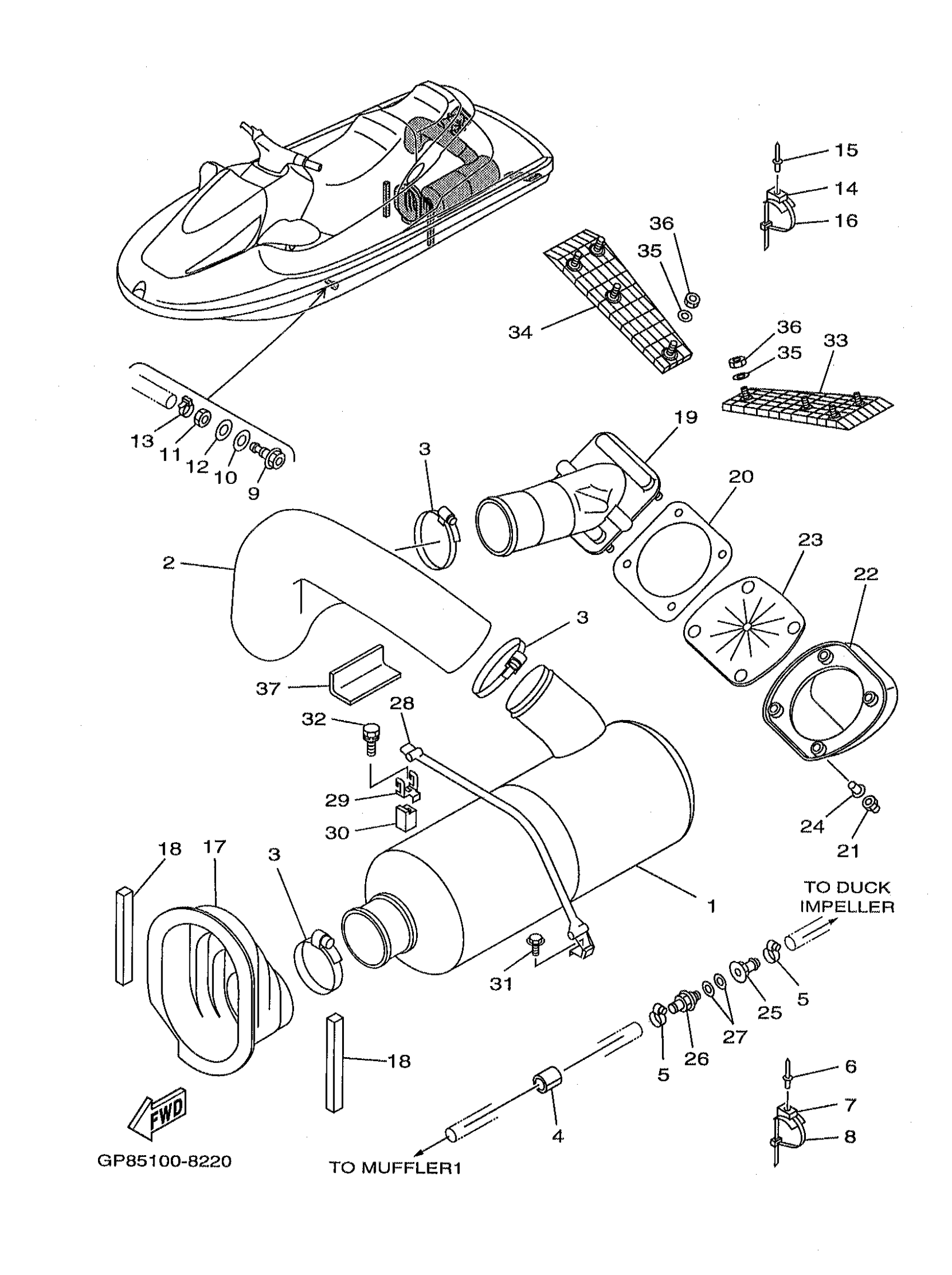

Yamaha GP1200W (WAVE RUNNER GP1200) 1998 EXHAUST 2 Diagram
#
1
WATER LOCK COMP.
GP8-67550-01-00
Unavailable
2
HOSE, EXHAUST
GP8-U7555-00-00
Unavailable
3
BAND, HOSE 95
90601-195UD-00
Unavailable
4
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
5
BAND, HOSE 18
90601-118UF-00
Unavailable
6
RIVET, BLIND
90267-48802-00
Unavailable
7
CLAMP COMP (EU0)
90600-91736-00
$8.49
8
BAND (EU0)
90601-20009-00
Unavailable
9
PILOT, WATER
GJ1-6753B-02-00
Unavailable
10
PACKING
GP3-U1438-00-00
Unavailable
11
NUT
GP7-61652-00-00
Unavailable
12
WASHER, PLAIN
92990-14200-00
$5.49
13
CLAMP
90465-10098-00
Unavailable
14
CLAMP COMP (EU0)
90600-91736-00
$8.49
15
RIVET, BLIND
90267-489U7-00
Unavailable
16
BAND (EU0)
90601-20009-00
Unavailable
17
SEAL, BULKHEAD 1
GP8-64536-00-00
Unavailable
18
SEAL, BULKHEAD 2
GP7-U4537-00-00
Unavailable
19
EXHAUST, THRU-HULL COMP.
GP7-U7560-00-00
Unavailable
20
PACKING
GP8-U7525-00-00
Unavailable
21
NUT
90179-08978-00
Unavailable
22
COVER, EXHAUST
GP7-6751F-00-00
Unavailable
23
VALVE, EXHAUST
GP8-6751G-00-00
Unavailable
24
COLLAR
90387-08802-00
Unavailable
25
THROUGH-HULL CONNECTION 3/8"
90604-80793-00
Unavailable
26
THROGUH-HULL CONNECTION 3/8
90604-80794-00
Unavailable
27
GASKET(GJ1)
90430-16910-00
Unavailable
28
C HOOK COMP.
GJ3-U7570-00-00
Unavailable
29
HOOK A
EW2-U5772-00-00
Unavailable
30
SPACER 2
GP7-U755C-00-00
Unavailable
31
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
32
BOLT, WITH WASHER
90119-06808-00
Unavailable
33
PLATE, STEP 1
GP8-6884R-01-00
Unavailable
34
PLATE, STEP 2
GP8-6884S-01-00
Unavailable
35
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
36
NUT, SELF-LOCKING
95720-06300-00
Unavailable
37
PROTECTOR
GJ1-U8953-00-00
Unavailable
