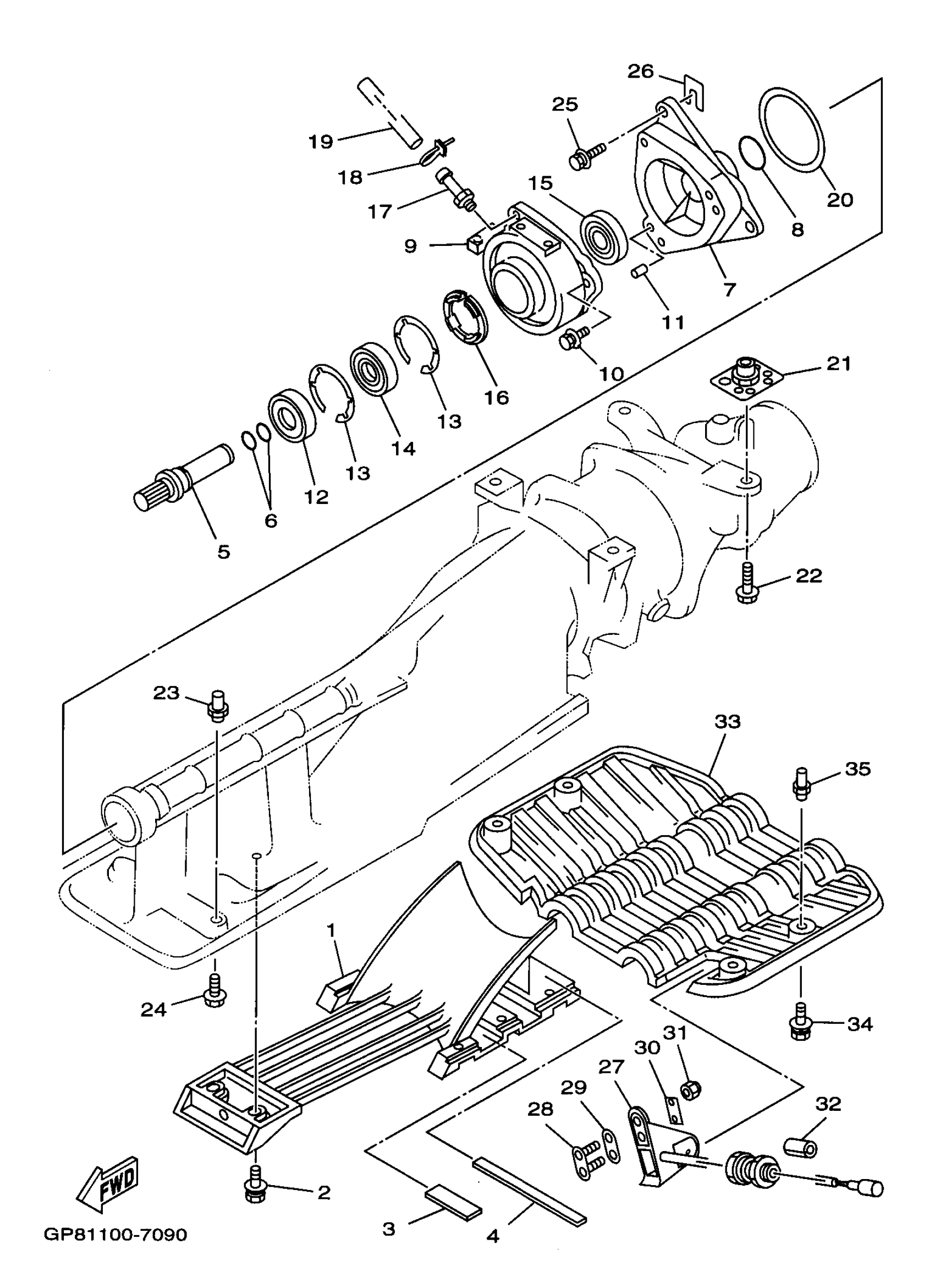

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 JET UNIT 2 Diagram
#
1
SCREEN, INTAKE
65R-R1333-00-00
Unavailable
2
BOLT, WITH WASHER
90119-069UC-00
Unavailable
3
. FELT, PACKING
63M-51367-00-00
Unavailable
4
. FELT, PACKING
63M-51368-00-00
Unavailable
5
SHAFT, COUPLER
63M-51323-01-00
Unavailable
7
HOUSING, BEARING
65A-G5331-00-00
Unavailable
9
HOUSING, BEARING
61X-G5332-00-00
Unavailable
10
BOLT, WITH WASHER
90119-08841-00
Unavailable
13
CIRCLIP
93430-47M04-00
Unavailable
14
BEARING(62G)
93306-205U6-00
Unavailable
16
SPACER 1
65A-G5538-00-00
Unavailable
17
NIPPLE, HOSE
61L-45378-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
HOSE (L445)
90445-09M21-00
Unavailable
20
SEAL
6K8-45127-00-00
Unavailable
21
NUT
90179-10925-00
Unavailable
22
BOLT, WITH WASHER
90119-109U8-00
Unavailable
23
NUT(FJ0)
90179-06947-00
Unavailable
24
BOLT, WITH WASHER
90119-06896-00
Unavailable
25
BOLT, WITH WASHER
90119-08907-00
Unavailable
26
SHIM (0.5)
GD0-U7249-00-05
Unavailable
26
SHIM (0.5)
GD0-U7249-00-05
Unavailable
27
SPEED SENSOR
GP7-U8K31-02-00
Unavailable
28
BRACKET, SPEED SENSOR
GP7-U8K33-00-00
Unavailable
29
PACKING
GP7-U8K34-00-00
Unavailable
30
NUT, SELF-LOCKING
95720-06300-00
Unavailable
31
PLATE, SPEED SENSOR
GP7-U8K35-00-00
Unavailable
32
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
33
PLATE 2
GP7-U273B-00-00
Unavailable
34
BOLT, WITH WASHER
90119-08829-00
Unavailable
35
NUT
90179-08815-00
Unavailable
