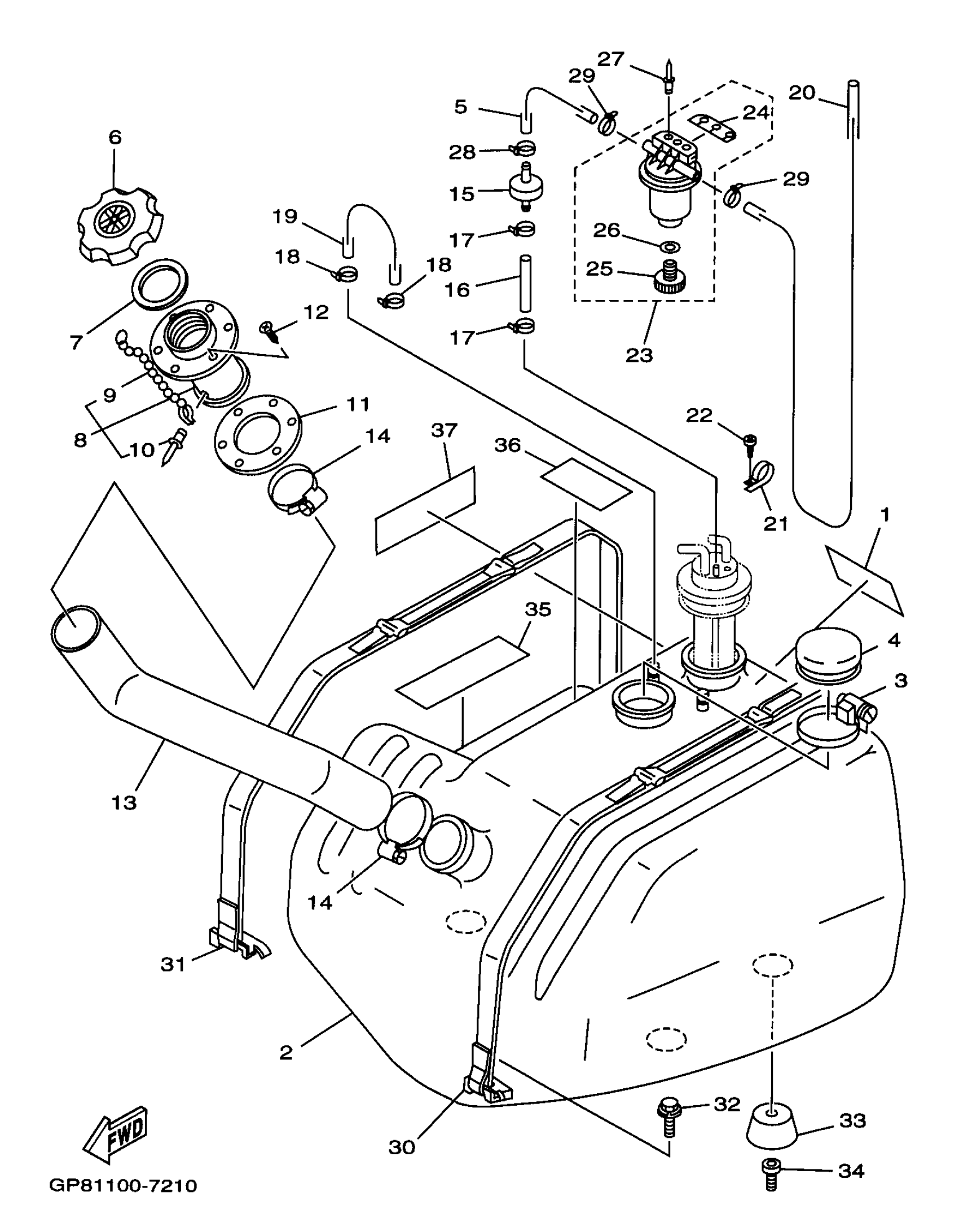

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 FUEL TANK Diagram
#
1
LABEL, FUEL TANK
GH3-6418D-00-00
Unavailable
2
TANK, FUEL
GH3-U7711-00-00
Unavailable
3
BAND, HOSE 62
90601-162U5-00
Unavailable
4
COVER
FN8-6771K-00-00
Unavailable
5
HOSE, AIR VENT 3
GP7-U7856-00-00
Unavailable
6
CAP, FUEL FILLER
EU0-67831-32-00
Unavailable
7
PACKING 1
EU0-67832-00-00
Unavailable
8
SOCKET
EU0-W6783-30-00
Unavailable
9
. CHAIN BALL
EU0-67835-00-00
Unavailable
10
. RIVET, BLIND
90267-40935-00
Unavailable
11
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
12
SCREW, FLAT HEAD TAPPING
EU0-U7869-00-00
Unavailable
13
HOSE
GP8-U7844-00-00
Unavailable
14
BAND, HOSE 55
90601-155U4-00
Unavailable
15
CHECK VALVE
EU0-67767-31-00
Unavailable
16
HOSE, AIR VENT 3
GP7-U785H-00-00
Unavailable
17
CLAMP
90465-10098-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
HOSE, AIR VENT 3
GP7-U7856-00-00
Unavailable
20
HOSE, AIR VENT
GP7-U785G-10-00
Unavailable
21
CLIP, NYLON 18
90600-918U3-00
Unavailable
22
SCREW, PANHEAD TAPPING (J20)
97780-60116-00
Unavailable
23
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
24
. PLATE, FILTER
EW2-62142-00-00
Unavailable
25
. PLUG, DRAIN
70R-24543-00-00
Unavailable
26
. O-RING
70R-24489-00-00
Unavailable
27
RIVET (EU0)
90267-48938-00
Unavailable
28
HOSE (L180)
90445-094K7-00
Unavailable
29
CLAMP
90465-10098-00
Unavailable
30
BELT, TANK 1
GJ1-67743-01-00
Unavailable
31
BELT, TANK 1
GJ8-67743-01-00
Unavailable
32
BOLT, WITH WASHER
90119-08800-00
Unavailable
33
DAMPER, FUEL TANK
GH1-U782B-00-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD
90110-089U1-00
Unavailable
35
MAT 1
GJ1-U759B-00-00
Unavailable
36
MAT 2
GJ1-U759C-00-00
Unavailable
37
MAT 3
GH1-U759D-00-00
Unavailable
