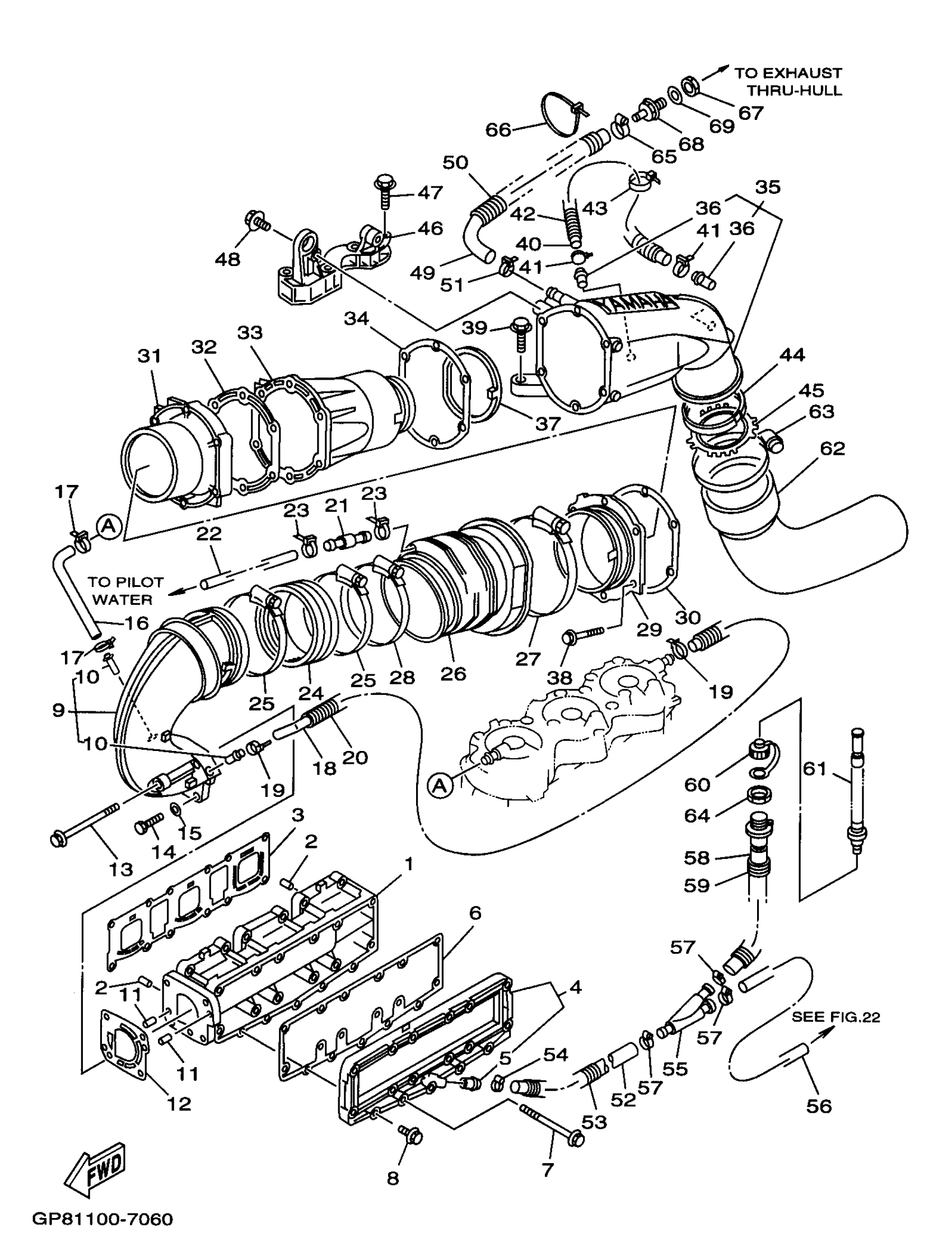

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 EXHAUST Diagram
#
1
MUFFLER 1
63M-14711-00-00
Unavailable
2
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
3
GASKET, EXHAUST PIPE
65U-14613-01-00
Unavailable
4
PROTECTOR, MUFFLER 1
63M-14718-00-8S
Unavailable
5
. NIPPLE
63M-51129-00-00
Unavailable
6
GASKET, MUFFLER DAMPER 1
63M-14739-00-00
Unavailable
7
BOLT, WITH WASHER
90119-08M98-00
Unavailable
8
BOLT, WITH WASHER(63M)
97513-06530-00
Unavailable
9
RING, JOINT
63M-14712-00-00
Unavailable
10
. NIPPLE
6K8-51129-00-00
Unavailable
11
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
12
GASKET, MUFFLER DAMPER 2
63M-14749-01-00
Unavailable
13
BOLT, WITH WASHER
90119-08155-00
Unavailable
14
BOLT, HEXAGON
97013-08030-00
$2.49
15
.. WASHER, PLATE
92990-08600-00
Unavailable
16
HOSE 1
63M-12576-00-00
Unavailable
17
CLAMP
90465-10098-00
Unavailable
18
HOSE 2
63M-12577-00-00
Unavailable
19
CLAMP
90465-10098-00
Unavailable
20
HOSE
90446-20M53-00
Unavailable
21
PIPE, JOINT 2
6R3-24377-00-00
Unavailable
22
HOSE (L1300)
90445-14M22-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
25
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
26
JOINT, EXHAUST 1
63M-14615-00-00
Unavailable
27
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
28
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
29
OUTER COVER, EXHAUST
63M-41113-00-8S
Unavailable
30
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
31
MUFFLER 2
63M-14721-00-8S
Unavailable
32
GASKET, EXHAUST INNER COVER
63M-41122-00-00
Unavailable
33
INNER COVER,EXHAUST
65U-41121-00-8S
Unavailable
34
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
35
OUTER COVER, EXHAUST
65U-41123-00-8S
Unavailable
36
. NIPPLE
65U-14251-00-00
Unavailable
37
SEAL, RUBBER 1
63M-15761-00-00
Unavailable
38
BOLT, FLANGE
90105-08M66-00
Unavailable
39
BOLT, FLANGE
90105-10M60-00
Unavailable
40
HOSE (L420)
90445-092K1-00
Unavailable
41
CLAMP
90465-10098-00
Unavailable
42
HOSE(6TC)
90446-14M51-00
Unavailable
43
BAND, SWITCH CORD
437-83936-11-00
Unavailable
44
SEAL, EXT 1
63M-41138-00-00
Unavailable
45
STOPPER
63M-14680-00-00
Unavailable
46
STAY, MUFFLER 1
63M-14771-00-00
Unavailable
47
BOLT, WITH WASHER
90119-10M72-00
Unavailable
48
BOLT, WASHER BASED
90105-10M45-00
Unavailable
49
HOSE 3
65V-12578-00-00
Unavailable
50
HOSE
90446-27M73-00
Unavailable
51
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
52
HOSE
90445-18M16-00
Unavailable
53
HOSE
90446-24M81-00
Unavailable
54
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
55
JOINT, HOSE 1
63M-12581-00-00
Unavailable
56
HOSE (L500)
90445-18M06-00
Unavailable
57
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
58
JOINT ASSY
63M-12580-00-00
Unavailable
59
HOSE
90446-24M83-00
Unavailable
60
CAP,1
682-84385-01-00
Unavailable
61
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
62
PIPE, OUTLET
65U-14752-00-00
Unavailable
63
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
64
NUT
EU0-61652-00-00
Unavailable
65
BAND, HOSE 18
90601-118UF-00
Unavailable
66
BAND
90601-200U1-00
Unavailable
67
NUT, THRU-HULL
GP7-672A4-00-00
Unavailable
68
THROUGH HULL CONNECTION 3/8-12
90604-80797-00
Unavailable
69
GASKET(GJ1)
90430-16910-00
Unavailable
