1997 Yamaha Wave Runner GP1200 (GP1200V) Engine Hatch 2 Diagram

← All diagrams

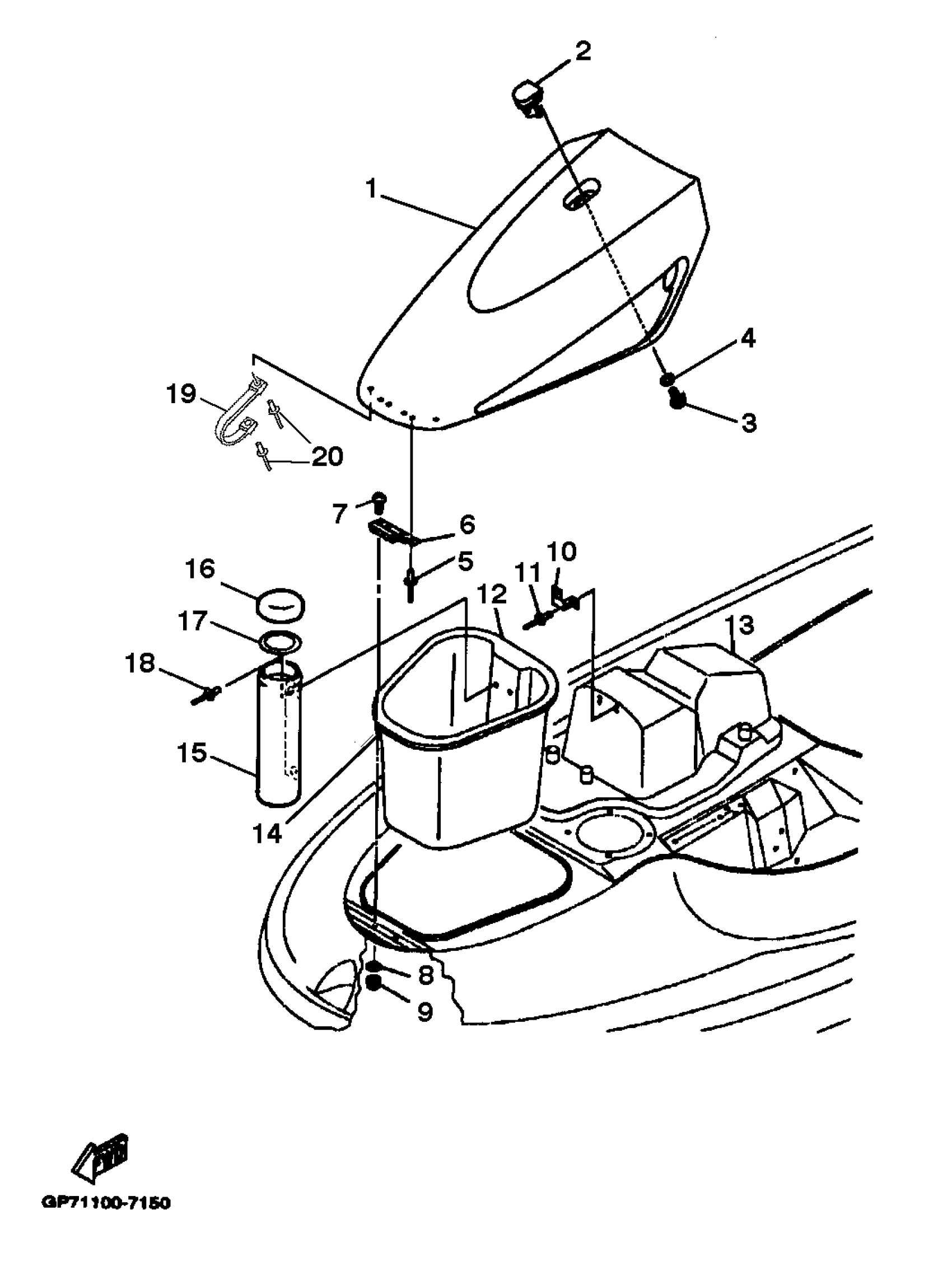

Find the part on the Engine Hatch 2 diagram for your 1997 Yamaha Wave Runner GP1200 (GP1200V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner GP1200 (GP1200V) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID,ENGINE HATCH (RED)

GP7-U517B-19-P0

1
Out of stock

2

LOCK, LID

F1K-6517C-00-00

1

$74.99

In stock

3

SCREW

90149-059U7-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

6

HINGE, LID

GP7-6517D-10-00

1
Out of stock

7

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

10

KEEP, LOCK

GP7-6517F-10-00

1

$11.99

In stock

11

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

12

BOW LOCKER ASSY

GP7-U475A-00-00

1
Out of stock

13

ENGINE HATCH COMP.

GP7-U516A-00-00

1
Out of stock

14

. PACKING, 6

GP7-U266E-03-00

1
Out of stock

15

. BOX, FIRE EXTINGUISHER

GP7-U5983-00-00

1
Out of stock

16

. CAP, CASE

EW2-U5912-01-00

1
Out of stock

17

PACKING, CASE

EW2-U5913-01-00

1
Out of stock

18

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

19

SUPPORT, LID

GP7-6517P-01-00

1

$3.95

In stock

20

RIVET, BLIND

90267-489U8-00

1

$1.54

In stock
