1997 Yamaha Wave Runner GP1200 (GP1200V) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 1997 Yamaha Wave Runner GP1200 (GP1200V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

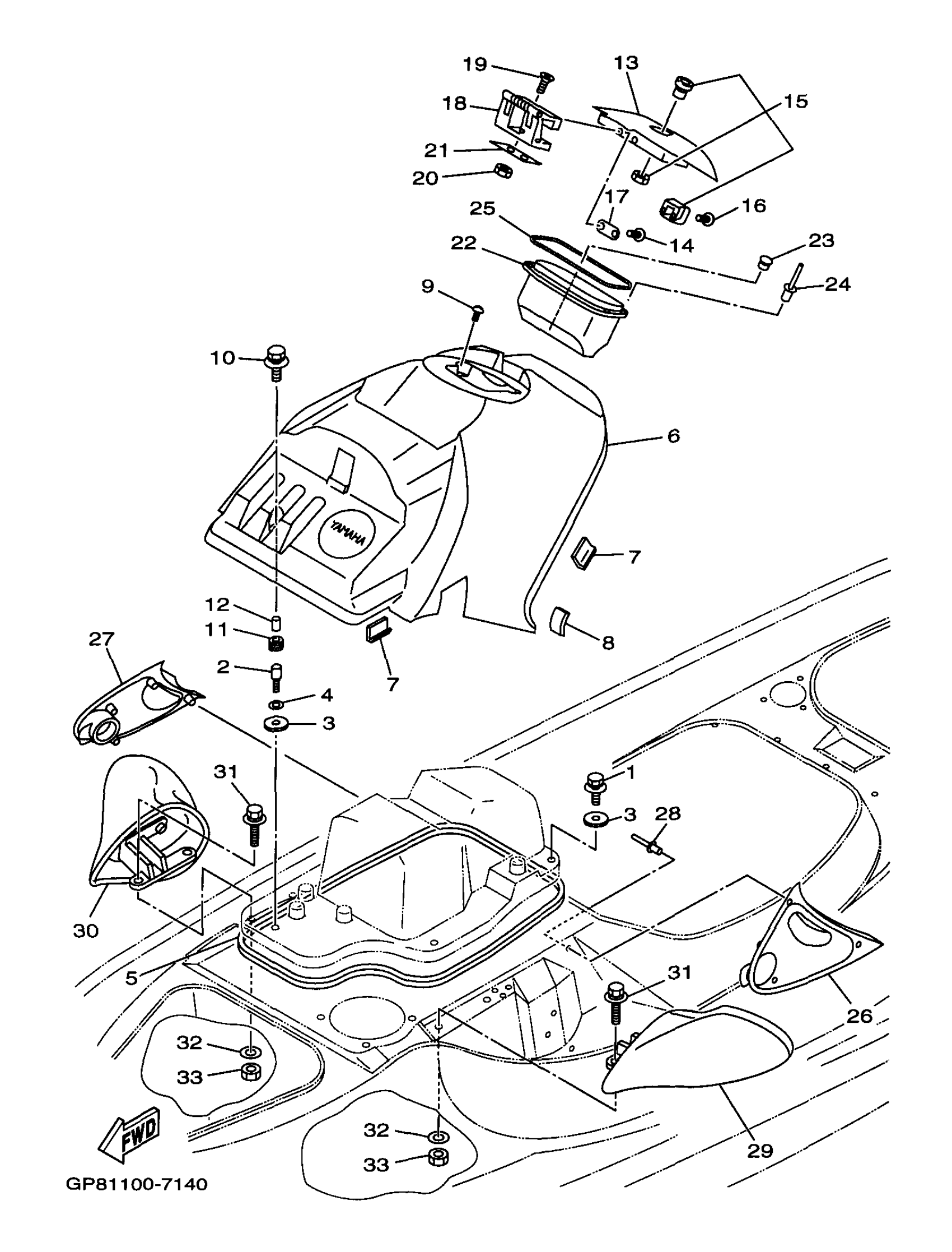

1997 Yamaha Wave Runner GP1200 (GP1200V) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

2

BOLT

90109-08913-00

1
Out of stock

3

WASHER, PLATE

90201-099U1-00

1

$2.46

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

PACKING 7

GP7-U266F-00-00

1
Out of stock

6

COVER, ENG. HATCH(RED)

GP8-U516N-09-P0

1
Out of stock

7

TRIM,HATCH 2

GP7-U5116-10-00

1
Out of stock

8

PAD, HATCH 1

GP7-U517M-01-00

1
Out of stock

9

SCREW

90149-05984-00

1

$2.77

In stock

10

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

11

GROMMET

90480-13907-00

1
Out of stock

12

COLLAR

90387-06920-00

1
Out of stock

13

LID HATCH (RED)

GP7-U517H-10-P0

1
Out of stock

14

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

15

LOCK ASSY

GP7-6287A-00-00

1
Out of stock

16

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

17

PLATE, HOOD

GP7-U5148-00-00

1
Out of stock

18

HINGE, HATCH

GP7-6517G-01-00

1

$39.98

In stock

19

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

20

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

21

PLATE, HATCH 2

GP7-U517S-00-00

1
Out of stock

22

BOX GLOVE

GP7-U516P-00-00

1
Out of stock

23

. PLUG

90605-502U2-00

1

$2.46

In stock

24

RIVET, BLIND

90267-489UK-00

1
Out of stock

25

PACKING CASE

GP7-U519D-02-00

1
Out of stock

26

COVER, SIDE 1

GP7-U377B-00-00

1
Out of stock

27

COVER, SIDE 2

GP7-U377C-00-00

1
Out of stock

28

RIVET, BLIND

90267-489UE-00

1
Out of stock

29

MIRROR (LH)

GP8-U596B-00-00

1
Out of stock

30

MIRROR (RH)

GP8-U596C-00-00

1
Out of stock

31

BOLT, WITH WASHER(GA7)

90119-08932-00

—

$28.11

In stock

32

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

33

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock
