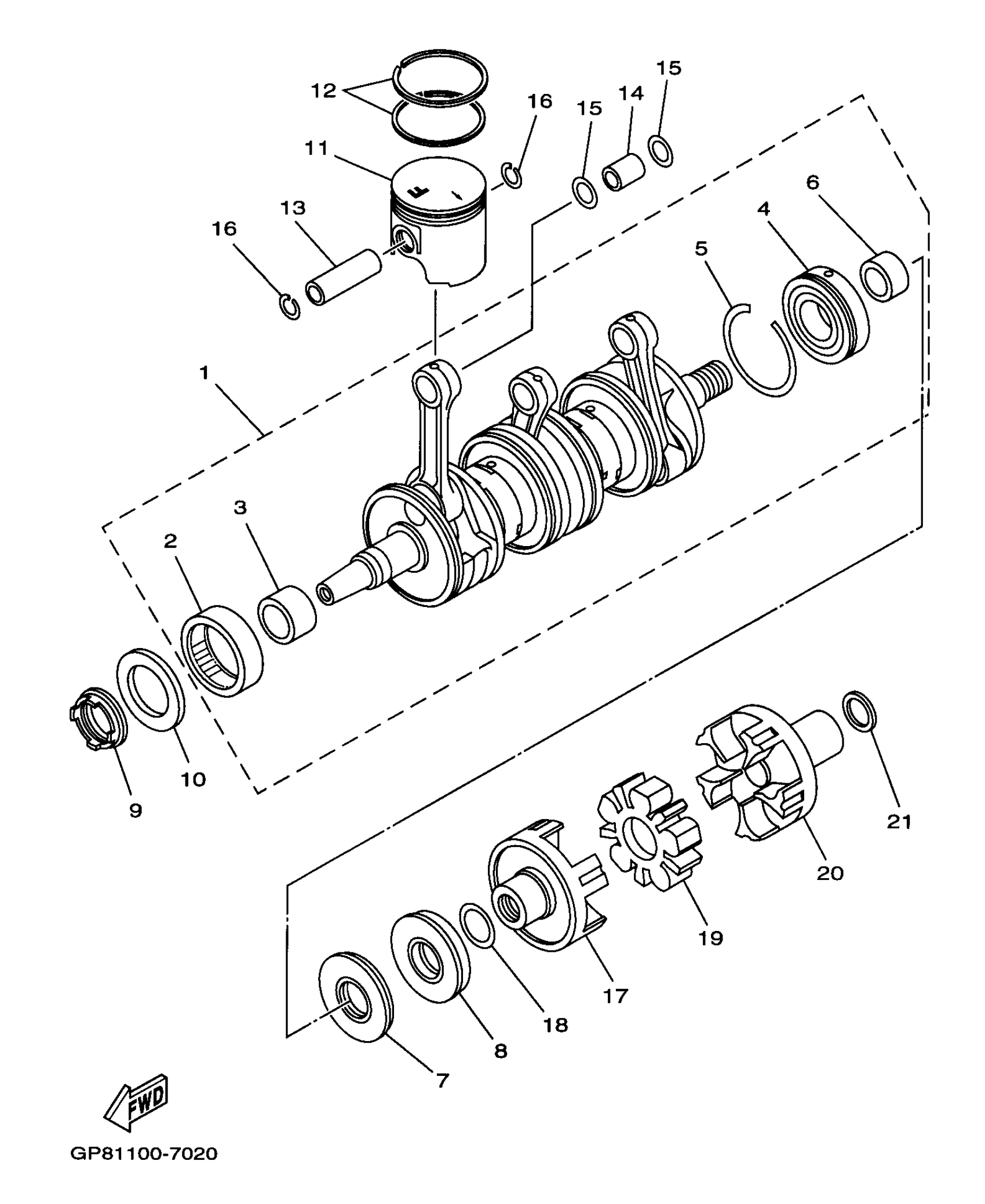

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

65U-11400-00-00

Unavailable

2

. BEARING

93390-000U4-00

Unavailable

3

. COLLAR

90387-32M02-00

Unavailable

4

BEARING(6M6)

93306-307U3-00

Unavailable

5

CIRCLIP (834)

93440-80023-00

$15.99

6

. COLLAR, DRIVE SHAFT

62T-45526-00-00

Unavailable

7

. OIL SEAL

93102-36M33-00

Unavailable

8

. OIL SEAL

93101-36M46-00

Unavailable

9

. OIL SEAL

93103-32M01-00

Unavailable

10

SPACER

65U-11445-00-00

Unavailable

11

PISTON (STD)

65U-11631-02-90

Unavailable

11

PISTON (0.25MM OS)

65U-11635-02-00

Unavailable

11

PISTON (0.50MM OS)

65U-11636-02-00

Unavailable

12

PISTON RING SET (STD)

65U-11603-01-00

Unavailable

12

PISTON RING SET (0.25MM OS)

65U-11604-01-00

Unavailable

12

PISTON RING SET (0.50MM OS)

65U-11605-01-00

Unavailable

13

PIN, PISTON

62T-11633-00-00

Unavailable

14

BEARING, CYLINDRICAL(62T)

93310-320U2-00

Unavailable

15

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

16

CIRCLIP (8H0)

93450-21053-00

Unavailable

17

FLANGE, COUPLING

63M-45813-01-94

Unavailable

18

SEAL

62T-45127-01-00

Unavailable

19

RUBBER SHAFT COUPLING

63M-4581J-00-00

Unavailable

20

FLANGE, COUPLING

64T-45813-00-8P

Unavailable

21

WASHER, PLATE

90201-24800-00

Unavailable
