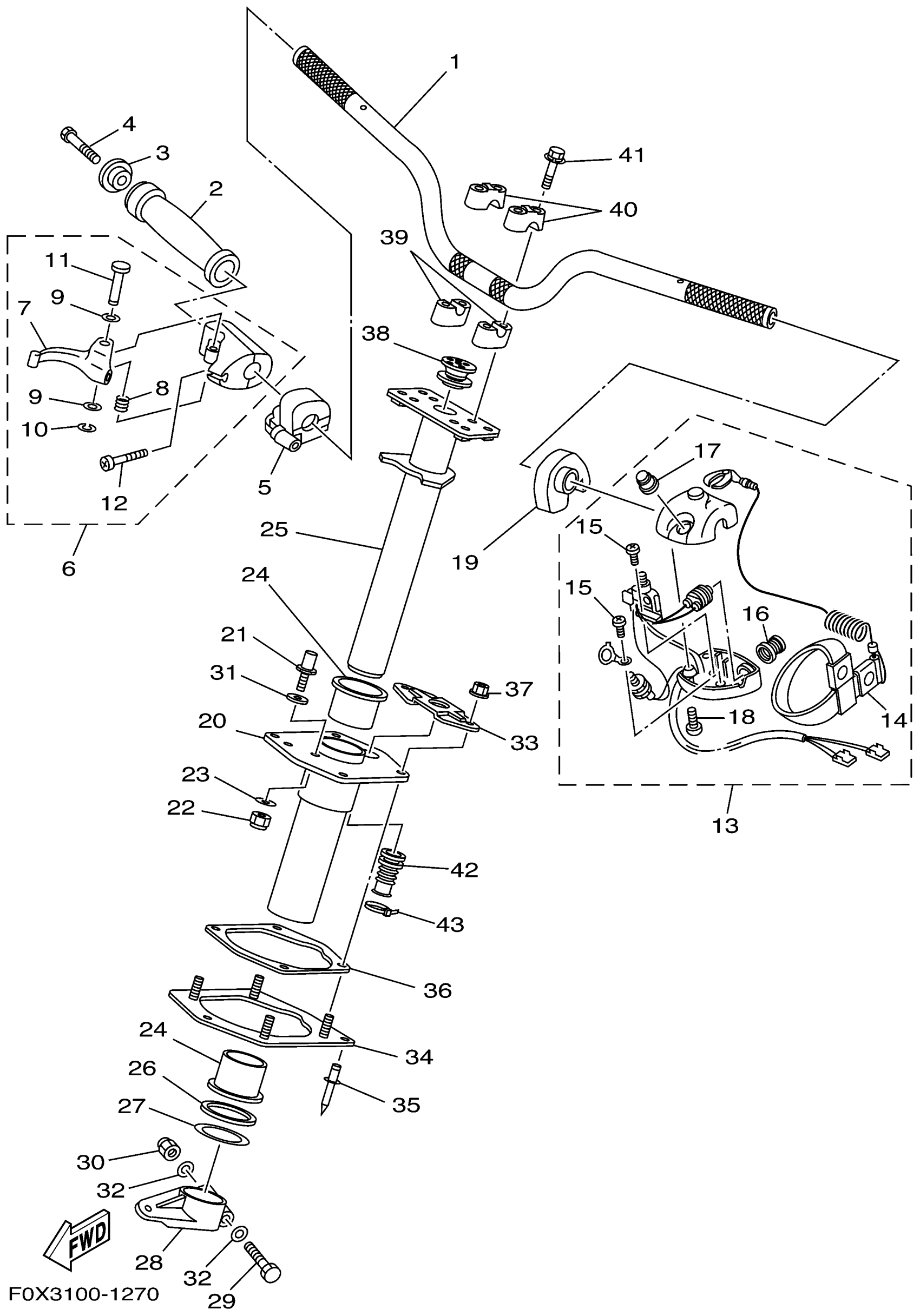

Yamaha GP1200AZ (GP1200R) F0X3 2001 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F0X-61552-00-00

$160.59

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

CHOKE LEVER ASSY

F0X-6724A-00-00

$110.59

6

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

7

LEVER, THROTTLE

F0D-67255-02-00

$27.26

8

. SPRING

EW2-67256-00-00

$6.36

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

$1.70

11

. SHAFT

F0D-67257-00-00

$16.99

12

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

13

SWITCH BOX ASSY

F0X-68310-01-00

Unavailable

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

15

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

16

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

17

. START BUTTON COMP

FK7-68313-02-00

$11.31

18

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

19

SPACER

F0X-6143G-00-00

$22.71

20

HOUSING ASSY

F0X-6152M-00-00

$280.29

21

PIN, STOPPER

FN8-6131B-00-00

$77.26

22

NUT, NYLON (FN8)

95720-10300-00

Unavailable

23

WASHER, PLATE

92990-10600-00

$2.57

24

BEARING, COLUMN

F0X-6141B-00-00

Unavailable

25

COLUMN, STEERING

F0X-61541-00-00

Unavailable

26

WASHER

F0X-6153P-00-00

Unavailable

27

WASHER

F0X-6153P-10-00

Unavailable

28

ARM, STEERING

F0X-6151B-00-00

Unavailable

29

BOLT

90101-08003-00

Unavailable

30

NUT, SELF-LOCKING

90185-08002-00

Unavailable

31

WASHER, PLATE

90201-10017-00

Unavailable

32

.. WASHER, PLATE

92990-08600-00

$2.17

33

PLATE

F0X-61596-00-00

$18.92

34

PLATE, BRACKET

F0X-6133B-00-00

Unavailable

35

RIVET, BLIND

90267-489U6-00

$1.37

36

SEAL, RUBBER

F0X-6143C-00-00

$16.99

37

NUT, NYLON (6J8)

95780-08300-00

$10.55

38

PACKING, STEERING COLUMN

F0X-61469-00-00

Unavailable

39

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

40

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

41

BOLT,WITH WASHER

90119-08831-00

Unavailable

42

GROMMET

F0D-6822E-00-00

$18.49

43

CLAMP

90464-32801-00

$1.23
