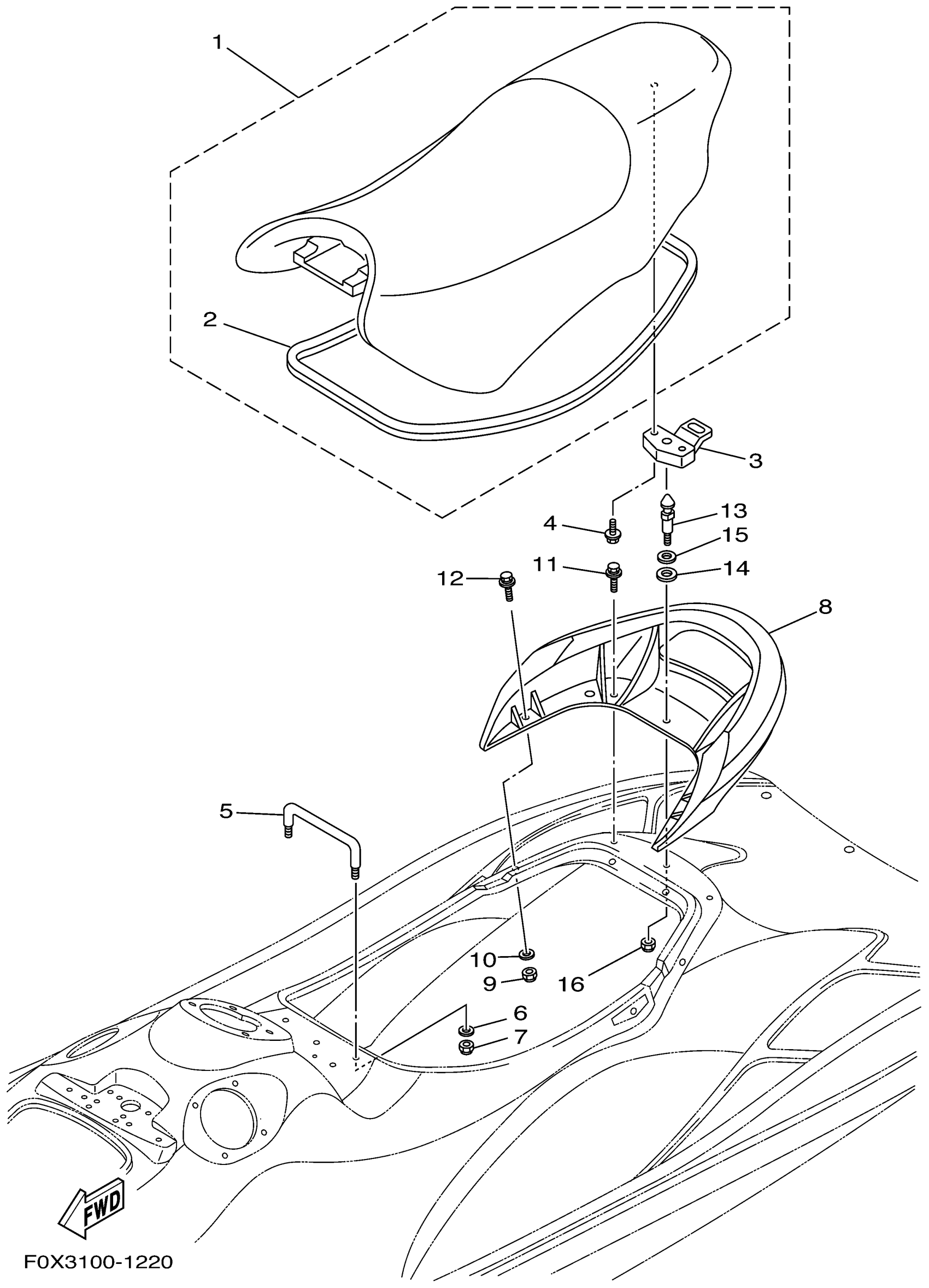

Yamaha GP1200AZ (GP1200R) F0X3 2001 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY (BLUE)

F1G-U371A-00-00

Unavailable

2

PACKING

F0X-U2664-00-00

Unavailable

3

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

4

BOLT, WITH WASHER

90119-06808-00

$2.16

5

STAY, SEAT 1

F0X-6378C-00-00

$51.50

6

WASHER, PLATE

90201-099U3-00

$2.16

7

NUT, NYLON (6J8)

95780-08300-00

$10.55

8

GRIP, HAND

F0X-U271B-00-00

Unavailable

9

NUT, NYLON (6J8)

95780-08300-00

$10.55

10

WASHER

9299R-08600-00

$2.00

11

BOLT, WITH WASHER

90119-08907-00

$5.45

12

BOLT, WITH WASHER

90119-08829-00

$3.88

13

PIN

F0X-U3774-00-00

Unavailable

14

PACKING 1

F0X-6375E-00-00

$3.64

15

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

16

NUT, NYLON

9572R-10300-00

$3.37
