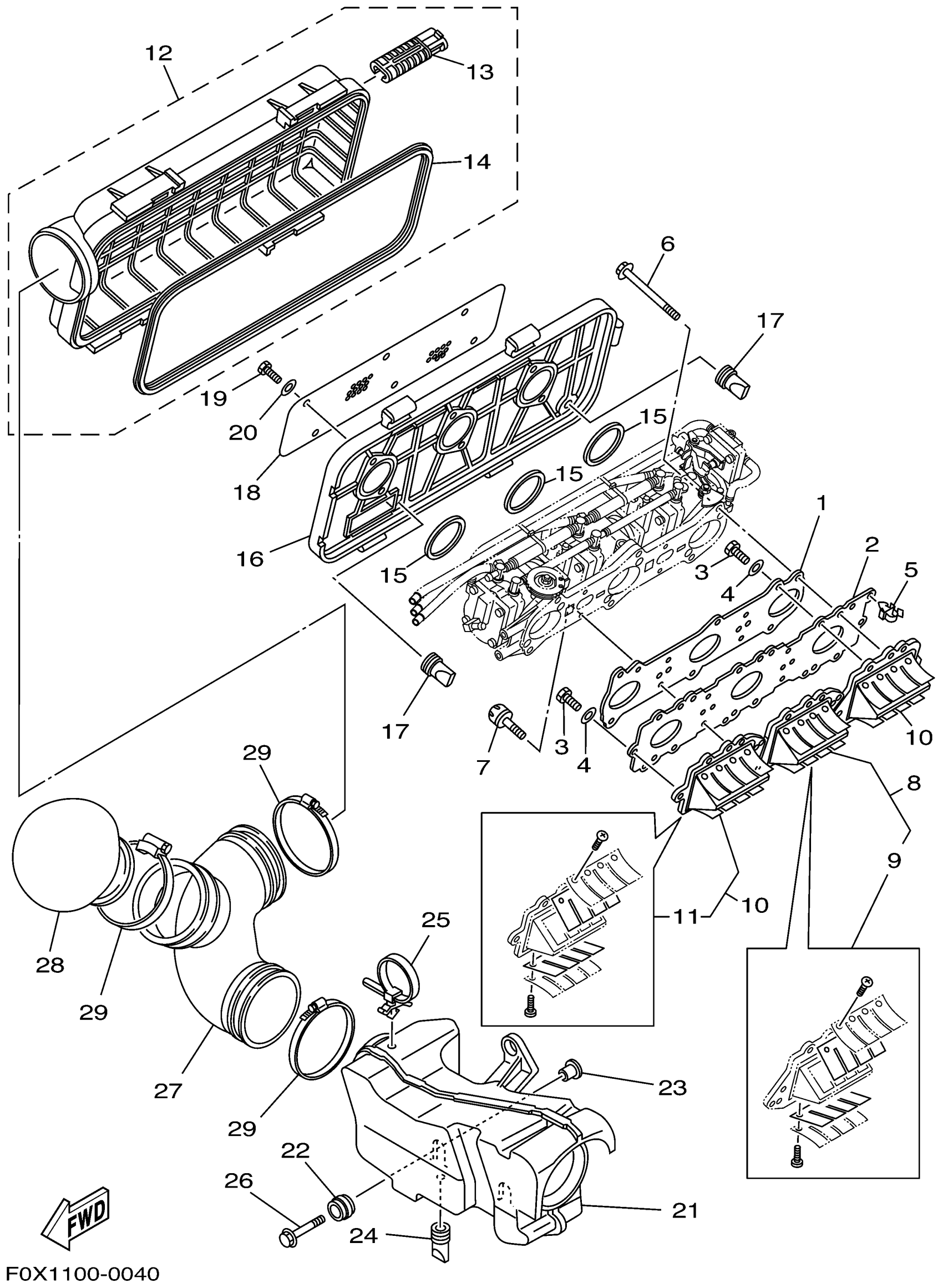

Yamaha GP1200AZ (GP1200R) F0X3 2001 INTAKE Diagram
#
1
. PLATE
66V-13556-00-00
Unavailable
2
. PLATE, REED VALVE
66V-13624-00-00
Unavailable
3
BOLT(62Y)
97013-06025-00
$1.06
4
WASHER, PLAIN (646)
92990-06600-00
$2.80
5
CLAMP
90464-14M55-00
$2.07
6
BOLT, WASHER BASED
90105-08M86-00
$15.99
7
BOLT
90109-06M00-00
Unavailable
8
REED VALVE ASSY
66V-13610-00-00
Unavailable
9
. REED SET
66V-W0004-00-00
Unavailable
10
REED VALVE ASSY
66V-13620-00-00
Unavailable
11
. REED SET
66V-W0004-00-00
Unavailable
12
COVER SUB ASSY
66V-14480-01-00
Unavailable
13
. HOLDER
66V-13898-00-00
Unavailable
14
. SEAL
66V-14457-00-00
Unavailable
15
. O-RING
66E-13473-00-00
Unavailable
16
COVER, CARBURETOR 2
67X-14284-00-00
Unavailable
17
RUBBER, SEAL 2
67X-42717-00-00
Unavailable
18
ELEMENT, AIR CLEANER
66V-14451-00-00
Unavailable
19
BOLT, HEXAGON
97013-06045-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
$2.80
21
SILENCER ASSY, INTAKE
67X-14440-00-00
Unavailable
22
GROMMET
90480-22M15-00
Unavailable
23
COLLAR
90387-08M37-00
Unavailable
24
RUBBER, SEAL 2
67X-42717-00-00
Unavailable
25
CLAMP
90464-50001-00
Unavailable
26
BOLT, WITH WASHER
90119-08187-00
Unavailable
27
PIPE
67X-14419-00-00
Unavailable
28
PIPE, SILENCER
67X-1441J-00-00
Unavailable
29
CLAMP, HOSE
90460-99M23-00
Unavailable
