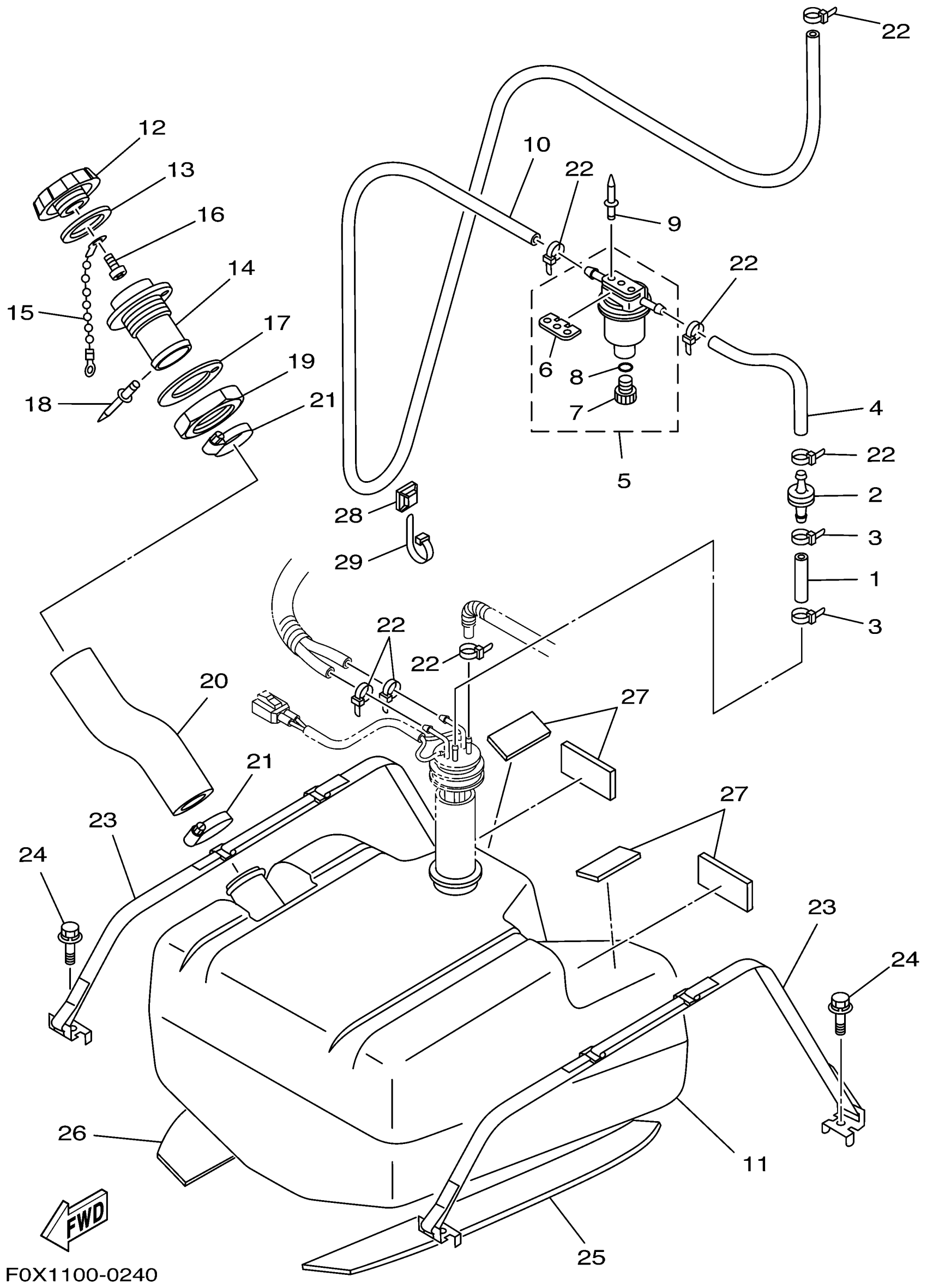

Yamaha GP1200AZ (GP1200R) F0X3 2001 FUEL TANK Diagram

#

Description
Price

1

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

2

CHECK VALVE

EU0-67767-31-00

$20.93

3

CLAMP

90465-10098-00

$1.68

4

HOSE, AIR VENT 3

GJ3-U7856-10-00

Unavailable

5

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

6

. PLATE, FILTER

EW2-62142-00-00

$44.99

7

. PLUG, DRAIN

70R-24543-00-00

$9.08

8

. O-RING

70R-24489-00-00

$5.00

9

RIVET, BLIND

90267-489U2-00

$1.43

10

HOSE, AIR VENT

GP7-U785G-10-00

$8.32

11

TANK, FUEL

F0X-U7711-00-00

Unavailable

12

CAP, FUEL FILLER

GP7-U7831-01-00

$25.11

13

PACKING

GP7-U7832-01-00

$5.35

14

SOCKET

GP7-U7833-00-00

$35.88

15

CHAIN BALL

GP7-U7835-00-00

$4.51

16

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

17

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

18

RIVET, BLIND

90267-329UR-00

$1.15

19

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

20

HOSE

F0X-U7844-10-00

Unavailable

21

BAND, HOSE 55

90601-155U4-00

$5.87

22

CLAMP

90465-10098-00

$1.68

23

BELT, TANK 1

F0X-67743-00-00

$109.08

24

BOLT, WITH WASHER

90119-08800-00

$4.09

25

MAT 1

F0X-U759B-00-00

Unavailable

26

MAT 2

F0X-U759C-00-00

Unavailable

27

MAT 2

GJ1-U759C-00-00

$30.29

28

BASE, CLAMP

90600-900U6-00

Unavailable

29

CLAMP(JN6)

90464-40825-00

Unavailable
