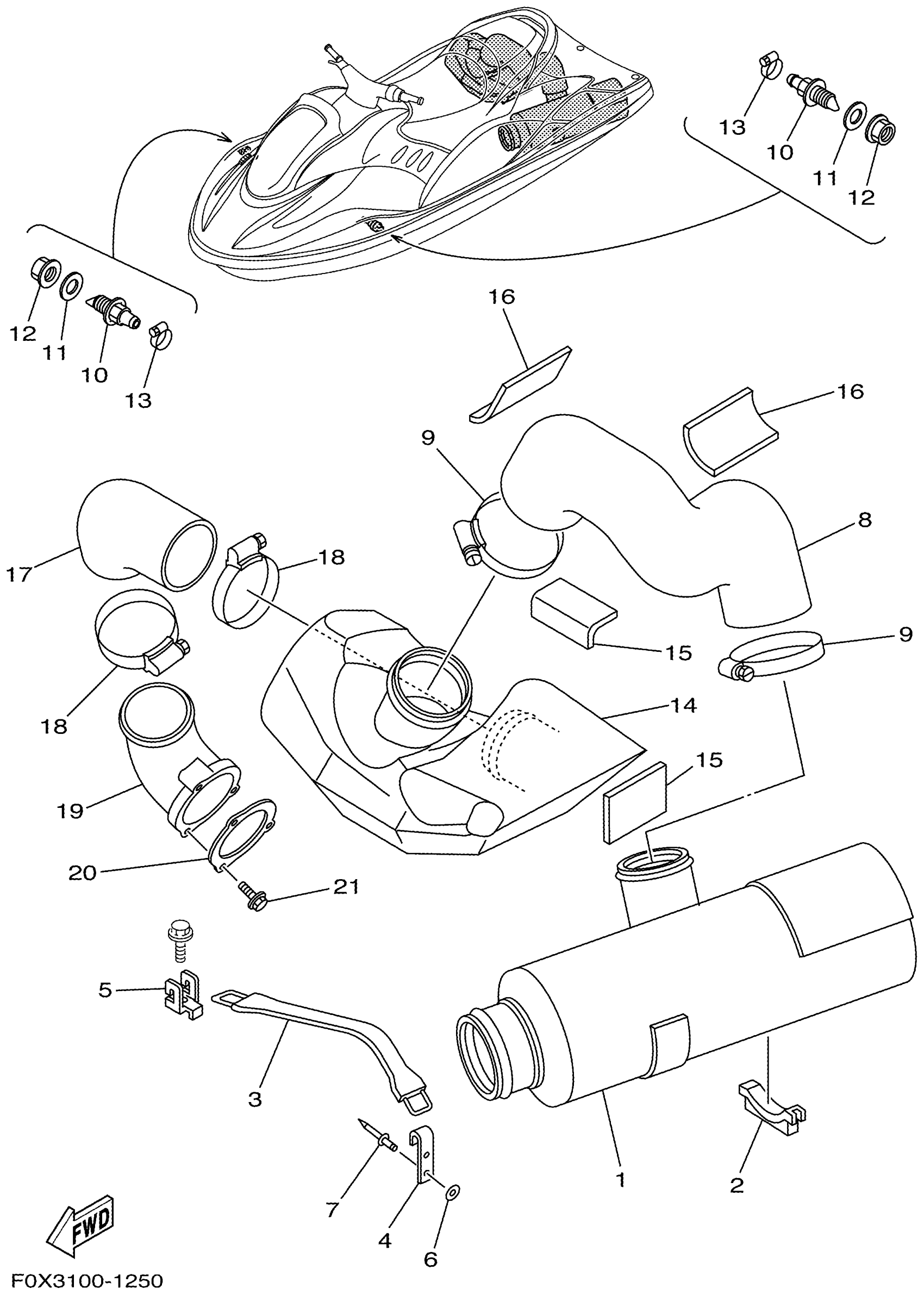

Yamaha GP1200AZ (GP1200R) F0X3 2001 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F0X-67550-02-00

Unavailable

2

MAT, WATER LOCK

F0X-6755J-00-00

Unavailable

3

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

Unavailable

5

HOOK A

EW2-U5772-00-00

Unavailable

6

WASHER

9299R-05200-00

Unavailable

7

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

8

HOSE, EXHAUST

F0X-U7555-00-00

Unavailable

9

HOSE CLAMP ASSY

90450-99801-00

Unavailable

10

PILOT, WATER

F0X-6753B-00-00

Unavailable

11

GASKET(GJ1)

90430-16910-00

Unavailable

12

NUT

F0X-62733-00-00

Unavailable

13

BAND, HOSE 18

90601-118UF-00

Unavailable

14

TANK, WATER

F0X-U4261-13-00

Unavailable

15

MAT, WATER LOCK

GP8-6755J-00-00

Unavailable

16

MAT

GU0-67593-00-00

Unavailable

17

HOSE, EXHAUST 2

F0X-U758C-00-00

Unavailable

18

BAND, HOSE 95

90601-195UD-00

Unavailable

19

THRU-HULL,EXHAUST

F0D-67565-01-00

Unavailable

20

PACKING

F0D-U7525-01-00

Unavailable

21

BOLT, WITH WASHER

90119-06896-00

Unavailable
