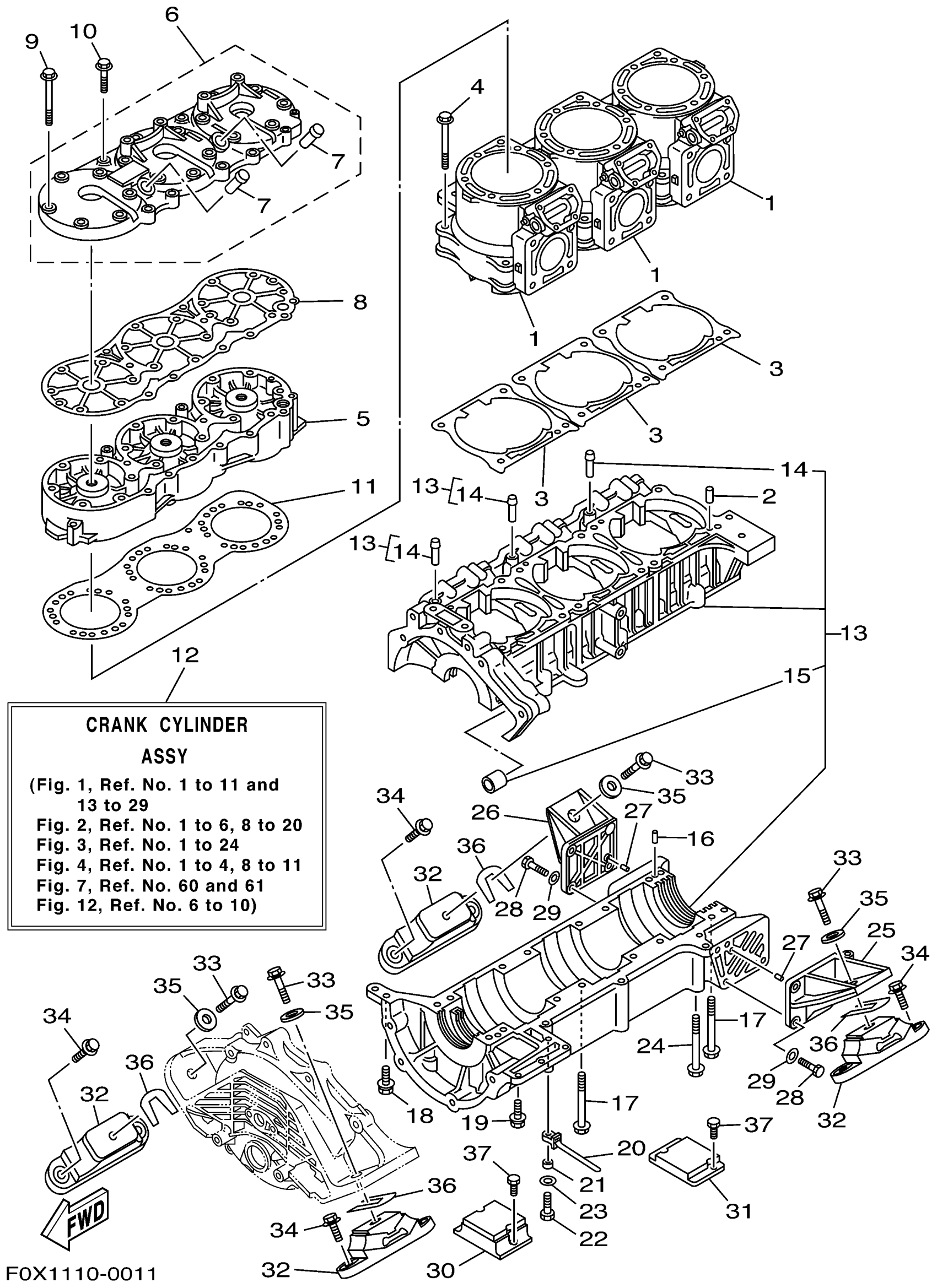

Yamaha GP1200AZ (GP1200R) F0X3 2001 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

66V-W1130-00-94

Unavailable

2

PIN, DOWEL (614)

93606-12019-00

$4.24

3

GASKET, CYLINDER

66E-11351-02-00

Unavailable

4

BOLT (6F5)

90119-10M07-00

$4.82

5

HEAD, CYLINDER 1

67X-11111-00-8S

Unavailable

6

COVER, CYLINDER HEAD 1

66V-11191-01-00

Unavailable

7

. NIPPLE

66E-51129-00-00

Unavailable

8

GASKET, HEAD COVER 1

66V-11193-01-00

Unavailable

9

BOLT, WITH WASHER

90119-08M99-00

Unavailable

10

BOLT, WITH WASHER

90119-08MA0-00

Unavailable

11

GASKET, CYLINDER HEAD 1

66V-11181-01-00

Unavailable

12

CRANK CYLINDER ASSY

67X-W0090-11-8S

Unavailable

13

CRANKCASE ASSY

68N-15100-00-00

Unavailable

14

. NIPPLE

66V-14251-00-00

Unavailable

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

$4.24

17

BOLT, WITH WASHER

90119-08M63-00

Unavailable

18

BOLT, WITH WASHER

90119-08009-00

Unavailable

19

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

20

CLAMP

90465-12M53-00

Unavailable

21

COLLAR

90387-06M05-00

Unavailable

22

BOLT (62Y)

97013-06040-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT, WITH WASHER

90119-06M84-00

Unavailable

25

BRACKET, REAR UPPER 1

66V-21425-01-8P

Unavailable

26

BRACKET, REAR UPPER 2

66V-21426-01-8P

Unavailable

27

PIN, DOWEL (614)

93606-12019-00

$4.24

28

BOLT (682)

97013-08025-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

STOPPER, UPPER MOUNT

66V-44532-00-94

Unavailable

31

STOPPER, LOWER MOUNT RUBBER

66V-44574-00-94

Unavailable

32

MOUNT RUBBER

67X-44517-10-00

Unavailable

33

BOLT, WITH WASHER

90119-08856-00

Unavailable

34

BOLT, WITH WASHER

90119-08826-00

Unavailable

35

WASHER, PLATE

90201-099U3-00

Unavailable

36

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

36

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

36

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

36

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

36

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable

37

BOLT

90101-06917-00

Unavailable
