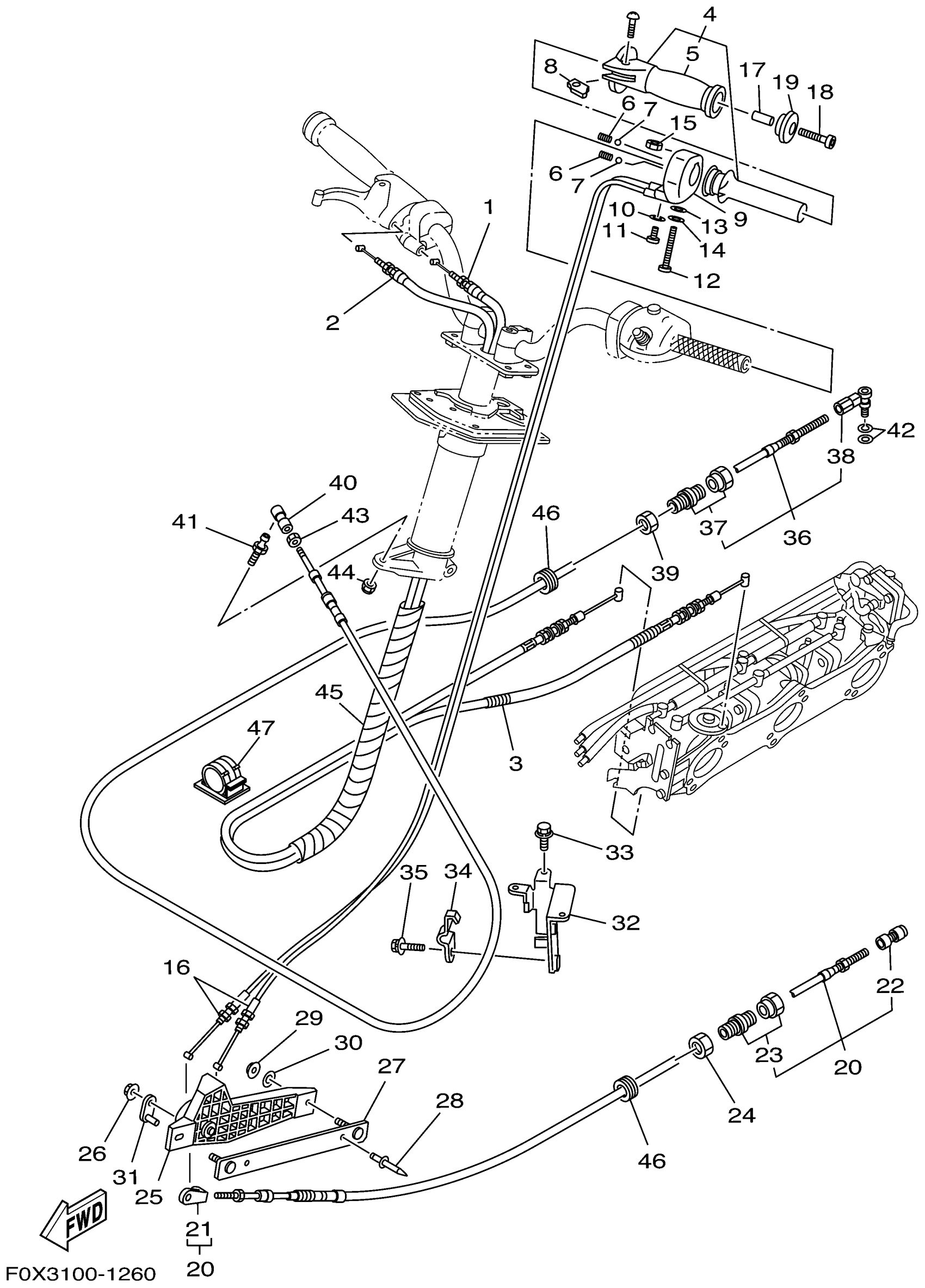

Yamaha GP1200AZ (GP1200R) F0X3 2001 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, CHOKE

67X-67242-00-00

$115.14

2

CABLE, THROTTLE

66V-67252-00-00

Unavailable

3

HOSE

90446-10ME3-00

$4.60

4

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

5

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

6

SPRING

GP7-U152P-00-00

$12.86

7

BALL

GP7-U152R-00-00

Unavailable

8

LEVER ASSY

GP7-U151M-00-00

Unavailable

9

HOUSING ASSY

GP7-U152M-00-00

Unavailable

10

WASHER, PLAIN (646)

92990-04600-00

$0.91

11

SCREW, BINDING (M01)

98980-04010-00

$5.02

12

SCREW PAN HEAD

98580-06565-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

WASHER

9299R-06100-00

Unavailable

15

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

16

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

17

COLLAR

90387-05800-00

$3.86

18

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

19

GRIP, END

GP7-U155F-00-00

$2.88

20

CABLE,NOZZLE CONTROL 3

F0X-6153E-19-00

$281.80

21

. END, CABLE

GH1-U046C-00-00

Unavailable

22

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

23

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

24

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

25

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

26

NUT, NYLON

9572R-06300-00

$2.80

27

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

28

RIVET, BLIND

90267-489U6-00

$1.37

29

NUT, NYLON

9572R-06300-00

$2.80

30

WASHER

9299R-06200-00

$0.43

31

PIN

F0D-U152C-10-00

Unavailable

32

BRACKET, STOPPER CABLE

F0X-61467-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06827-00

Unavailable

34

STOPPER, CABLE

F0X-61468-00-00

$13.99

35

BOLT, WITH WASHER

90119-06830-00

Unavailable

36

CABLE, STEERING

F0X-U1481-10-00

Unavailable

37

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

38

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

39

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

40

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

41

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

42

WASHER, PLATE

90201-06906-00

$2.80

43

NUT

9538R-06700-00

$1.01

44

NUT, NYLON

9572R-06300-00

$2.80

45

HOSE, WITH UNION

90448-25800-00

Unavailable

46

GROMMET

90480-279U1-00

$11.35

47

CLAMP

90600-925U9-00

Unavailable
