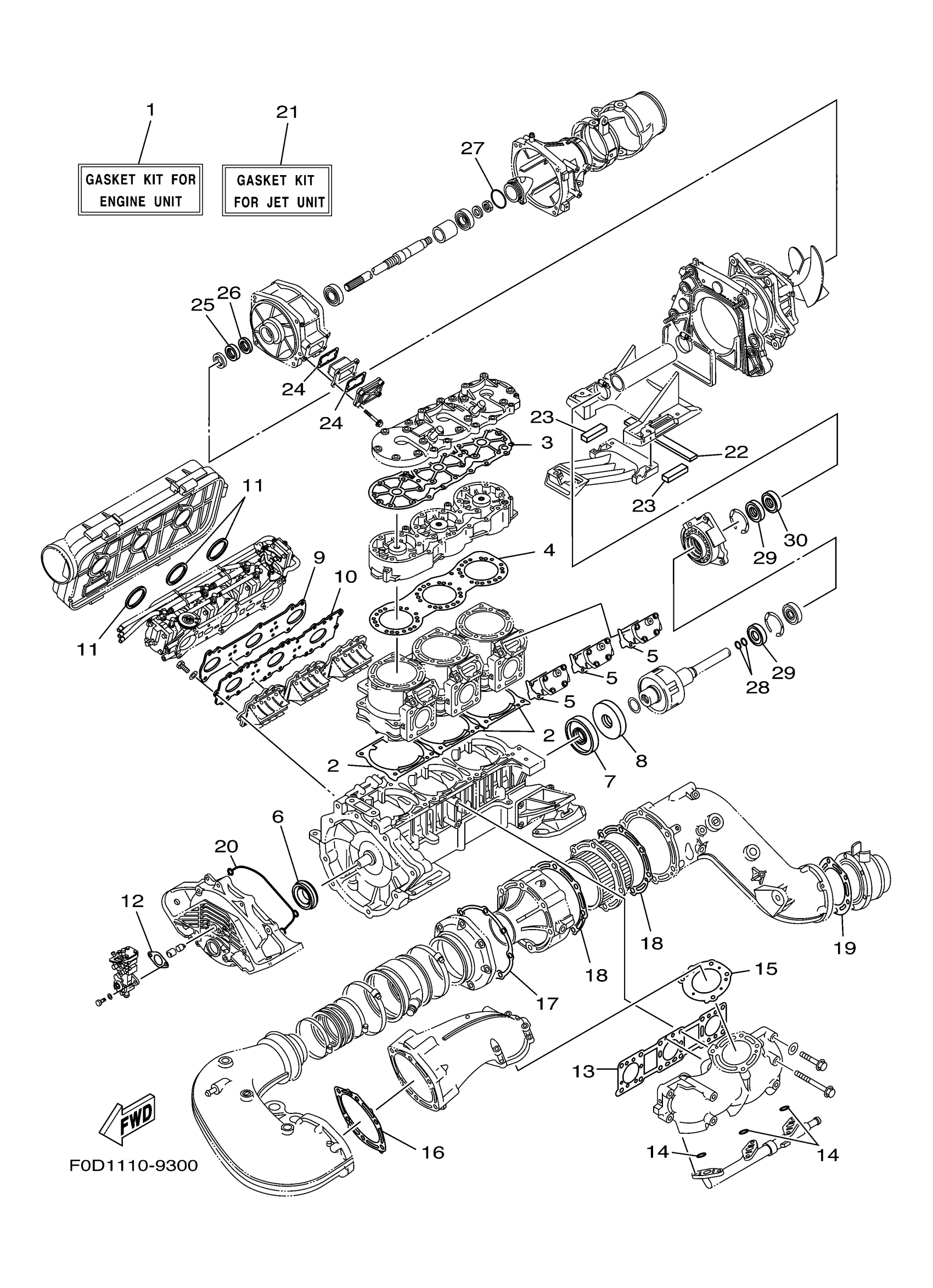

Yamaha GP1200AY (GP1200) F0X1 2000 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

66V-W0001-01-00

Unavailable

2

GASKET, CYLINDER

66E-11351-02-00

Unavailable

3

GASKET, HEAD COVER 1

66V-11193-01-00

Unavailable

4

GASKET, CYLINDER HEAD 1

66V-11181-01-00

Unavailable

5

GASKET, COVER

66E-1131B-02-00

Unavailable

6

OIL SEAL

93103-35011-00

Unavailable

7

OIL SEAL

93101-34001-00

Unavailable

8

OIL SEAL

93101-34002-00

Unavailable

9

. PLATE

66V-13556-00-00

Unavailable

10

. PLATE, REED VALVE

66V-13624-00-00

Unavailable

11

. O-RING

66E-13473-00-00

Unavailable

12

GASKET, PUMP CASE

63M-13116-00-00

Unavailable

13

GASKET, EXHAUST PIPE

66V-14613-01-00

Unavailable

14

O-RING(6R7)

93210-17MA4-00

$7.49

15

GASKET, MUFFLER DAMPER 1

66V-14739-01-00

Unavailable

16

GASKET, MUFFLER DAMPER 2

66V-14749-01-00

Unavailable

17

GASKET, EXHAUST OUTER COVER

66V-41114-01-00

Unavailable

18

GASKET, EXHAUST OUTER COVER

66V-41124-01-00

Unavailable

19

GASKET, EXHAUST PIPE

66V-14623-01-00

Unavailable

20

. O-RING

66V-81168-00-00

Unavailable

21

GASKET KIT FOR JET UNIT

66V-W0001-20-00

Unavailable

22

FELT, PACKING

66V-R1367-00-00

Unavailable

23

FELT, PACKING 2

66V-R1368-00-00

Unavailable

24

. O-RING

66V-42414-00-00

Unavailable

25

OIL SEAL

93101-28M66-00

Unavailable

26

OIL SEAL

93101-28002-00

Unavailable

27

. O-RING

93210-46M16-00

Unavailable

28

O-RING

93210-19001-00

Unavailable

29

OIL SEAL(62T)

93101-25M55-00

Unavailable

30

OIL SEAL

93101-24001-00

Unavailable
