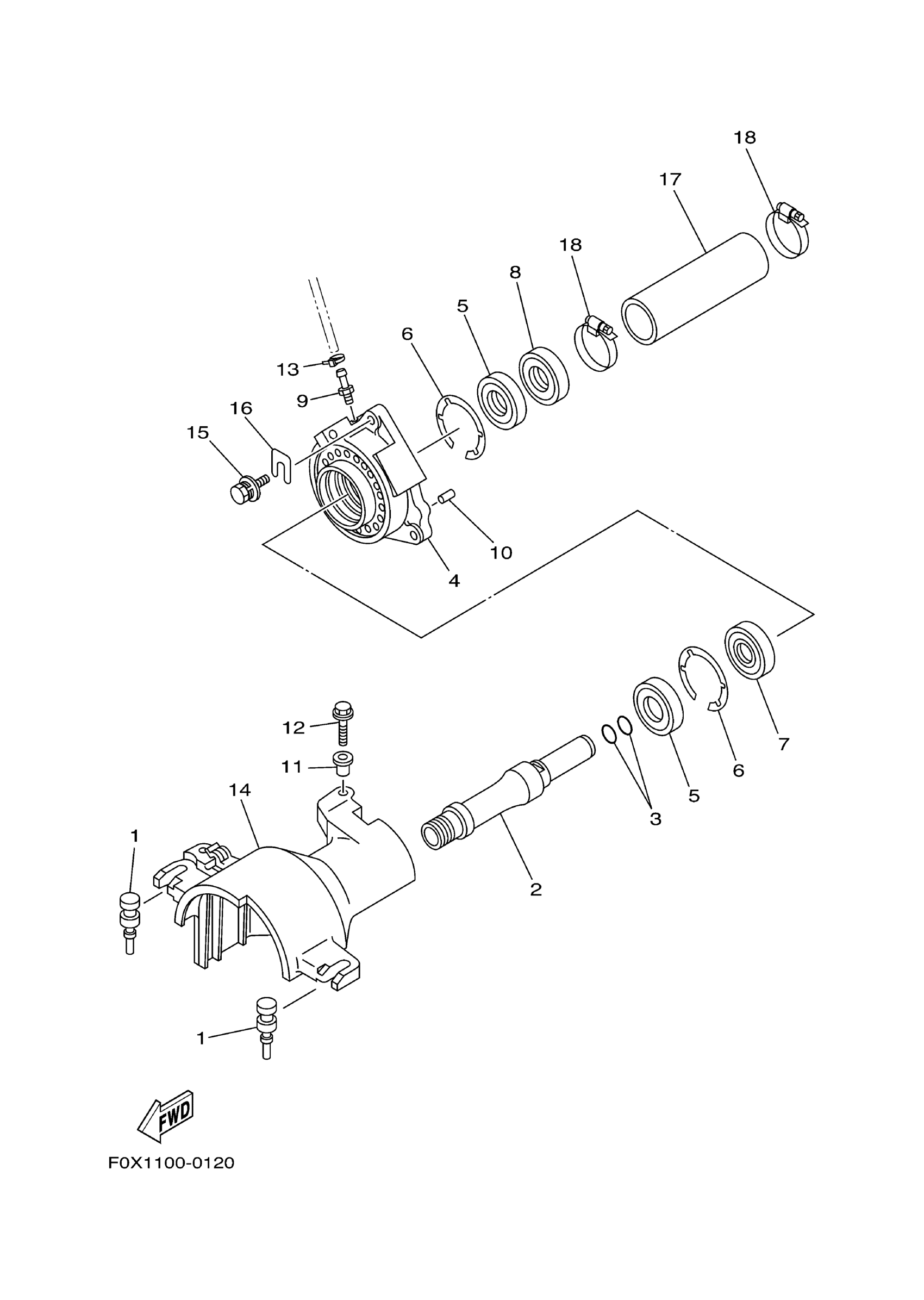

Yamaha GP1200AY (GP1200) F0X1 2000 JET UNIT 2 Diagram

#

Description
Price

1

GROMMET(6R7)

90480-06M46-00

$9.31

2

SHAFT, COUPLER

66V-51323-01-00

$360.59

3

O-RING

93210-19001-00

$3.49

4

HOUSING, BEARING

61X-G5332-00-00

$134.54

5

OIL SEAL(62T)

93101-25M55-00

$24.36

6

CIRCLIP

93430-47M04-00

$5.18

7

BEARING(62G)

93306-205U6-00

$55.29

8

OIL SEAL

93101-24001-00

$30.69

9

NIPPLE, HOSE

61L-45378-00-00

$11.35

10

PIN, DOWEL (614)

93606-12019-00

$3.05

11

COLLAR

90387-06M60-00

$6.37

12

BOLT, WITH WASHER

90119-06892-00

$3.79

13

CLAMP

90465-10098-00

$1.68

14

COVER

66V-R1381-01-00

Unavailable

15

BOLT, WITH WASHER

90119-08907-00

$5.45

16

SHIM (0.5)

GD0-U7249-00-05

$1.94

16

SHIM (0.5)

GD0-U7249-00-05

$1.94

17

PIPE, 1

F0X-U883B-01-00

Unavailable

18

BAND, HOSE 52

90601-152U3-00

$5.67
