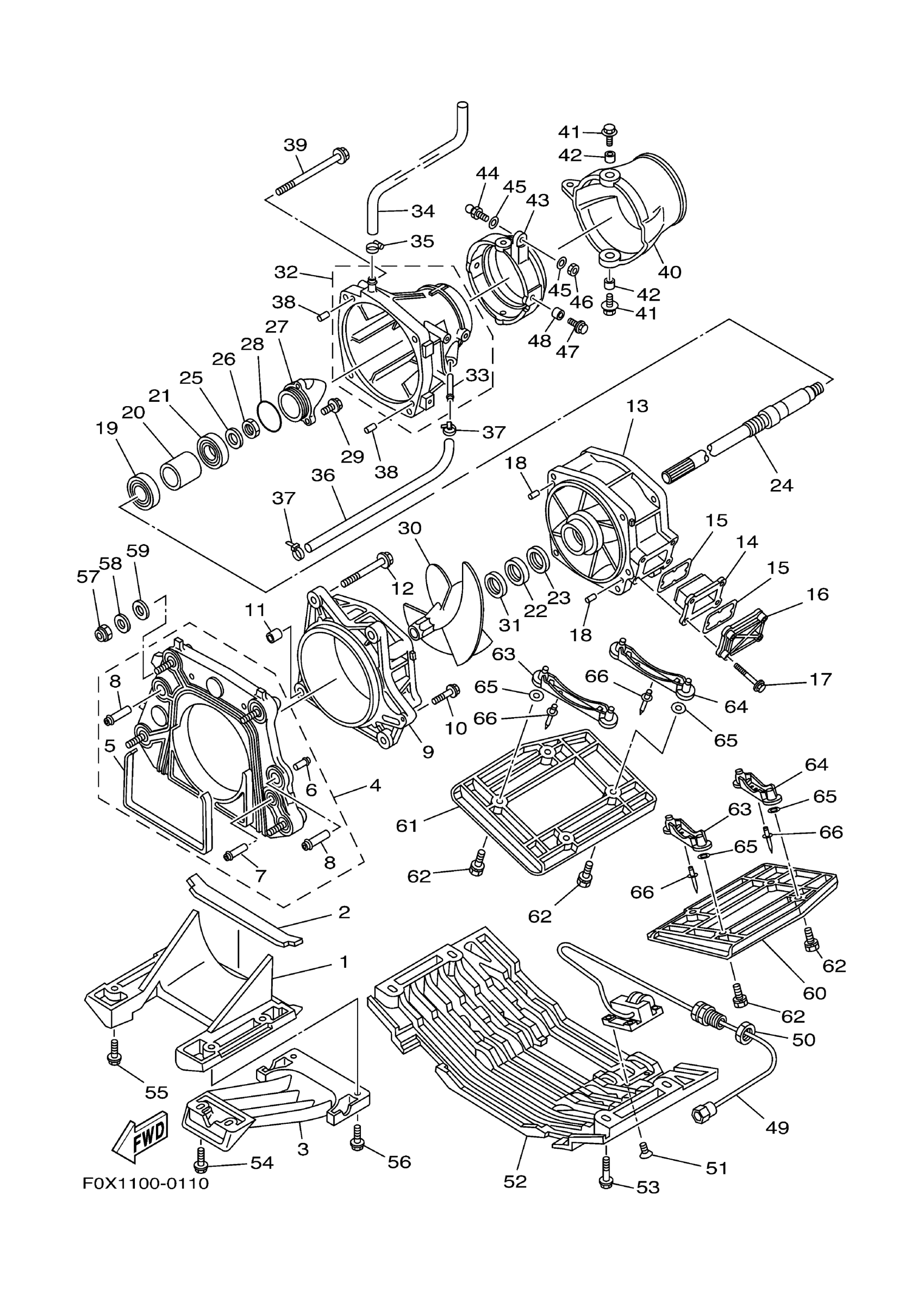

Yamaha GP1200AY (GP1200) F0X1 2000 JET UNIT 1 Diagram

#

Description

Price

1

DUCT, INTAKE

67X-51311-00-94

Unavailable

2

FELT, PACKING

66V-R1367-00-00

Unavailable

3

SCREEN, INTAKE

67X-51333-00-94

Unavailable

4

PLATE, TRANSOM

66V-G5831-02-00

Unavailable

5

. FELT, PACKING

66V-51367-10-00

Unavailable

6

. NIPPLE

65A-R1129-00-00

Unavailable

7

. NIPPLE

66V-51129-01-00

Unavailable

8

. NIPPLE

66V-51129-10-00

Unavailable

9

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

10

BOLT, WITH WASHER

90119-06894-00

Unavailable

11

PIN, DOWEL(4JT)

99590-14016-00

$4.24

12

BOLT, WITH WASHER

90119-10811-00

Unavailable

13

DUCT, IMPELLER

66V-51315-01-00

Unavailable

14

FILTER

66V-46882-00-00

Unavailable

15

. O-RING

66V-42414-00-00

Unavailable

16

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

17

BOLT,WITH WASHER

90119-06898-00

Unavailable

18

PIN, DOWEL (614)

93606-12019-00

Unavailable

19

BEARING (6K8)

93306-205U1-00

Unavailable

20

SPACER 1

65V-45538-00-00

Unavailable

21

BEARING

93306-304XB-00

Unavailable

22

OIL SEAL

93101-28M66-00

Unavailable

23

OIL SEAL

93101-28002-00

Unavailable

24

SHAFT, DRIVE

66V-45511-00-00

Unavailable

25

WASHER

9299R-16600-00

Unavailable

26

NUT

95317-16700-00

Unavailable

27

CAP KIT

65A-R1326-10-KT

Unavailable

28

. O-RING

93210-46M16-00

Unavailable

29

BOLT,WITH WASHER

90119-06890-00

Unavailable

30

IMPELLER

68N-R1321-00-00

Unavailable

31

SPACER

66V-R1348-10-00

Unavailable

32

NOZZLE

67X-51318-00-94

Unavailable

33

. NIPPLE,HOSE

63M-51334-00-00

Unavailable

34

PIPE 1

67X-51673-00-00

Unavailable

35

BAND, HOSE 18

90601-118UF-00

Unavailable

36

HOSE (L380)

90445-14M25-00

Unavailable

37

CLAMP

90465-10098-00

Unavailable

38

PIN, DOWEL (614)

93606-12019-00

Unavailable

39

BOLT, WITH WASHER

90119-10807-00

Unavailable

40

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

41

BOLT, WITH WASHER

90119-08852-00

Unavailable

42

COLLAR(6R7)

90387-08M06-00

Unavailable

43

RING, TRIM

66G-51190-00-94

Unavailable

44

STUD, JOINT BALL

GH3-U146E-00-00

Unavailable

45

WASHER,PLATE

90201-068M4-00

Unavailable

46

NUT

9538R-06700-00

Unavailable

47

BOLT, WITH WASHER

90119-08852-00

Unavailable

48

COLLAR(6R7)

90387-08M06-00

Unavailable

49

SENSOR SPEED

GJ1-U8K31-03-00

Unavailable

50

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

51

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

52

PLATE 2

F1G-U273B-01-00

Unavailable

53

BOLT, WITH WASHER

90119-08829-00

Unavailable

54

BOLT, WITH WASHER

90119-06896-00

Unavailable

55

BOLT, WITH WASHER

90119-08829-00

Unavailable

56

BOLT,WITH WASHER

90119-06890-00

Unavailable

57

NUT, NYLON

9572R-10300-00

Unavailable

58

WASHER, PLATE

90201-10801-00

Unavailable

59

WASHER, PLATE

90201-109U6-00

Unavailable

60

PLATE, STEP 1

F0X-6884R-00-00

Unavailable

61

PLATE, STEP 2

F0X-6884S-00-00

Unavailable

62

BOLT, WITH WASHER

90119-06892-00

Unavailable

63

PLATE, STEP 1

F0X-6885R-00-00

Unavailable

64

PLATE, STEP 2

F0X-6885S-00-00

Unavailable

65

PACKING 1

F0X-62663-01-00

Unavailable

66

RIVET, BLIND

90267-48806-00

Unavailable
