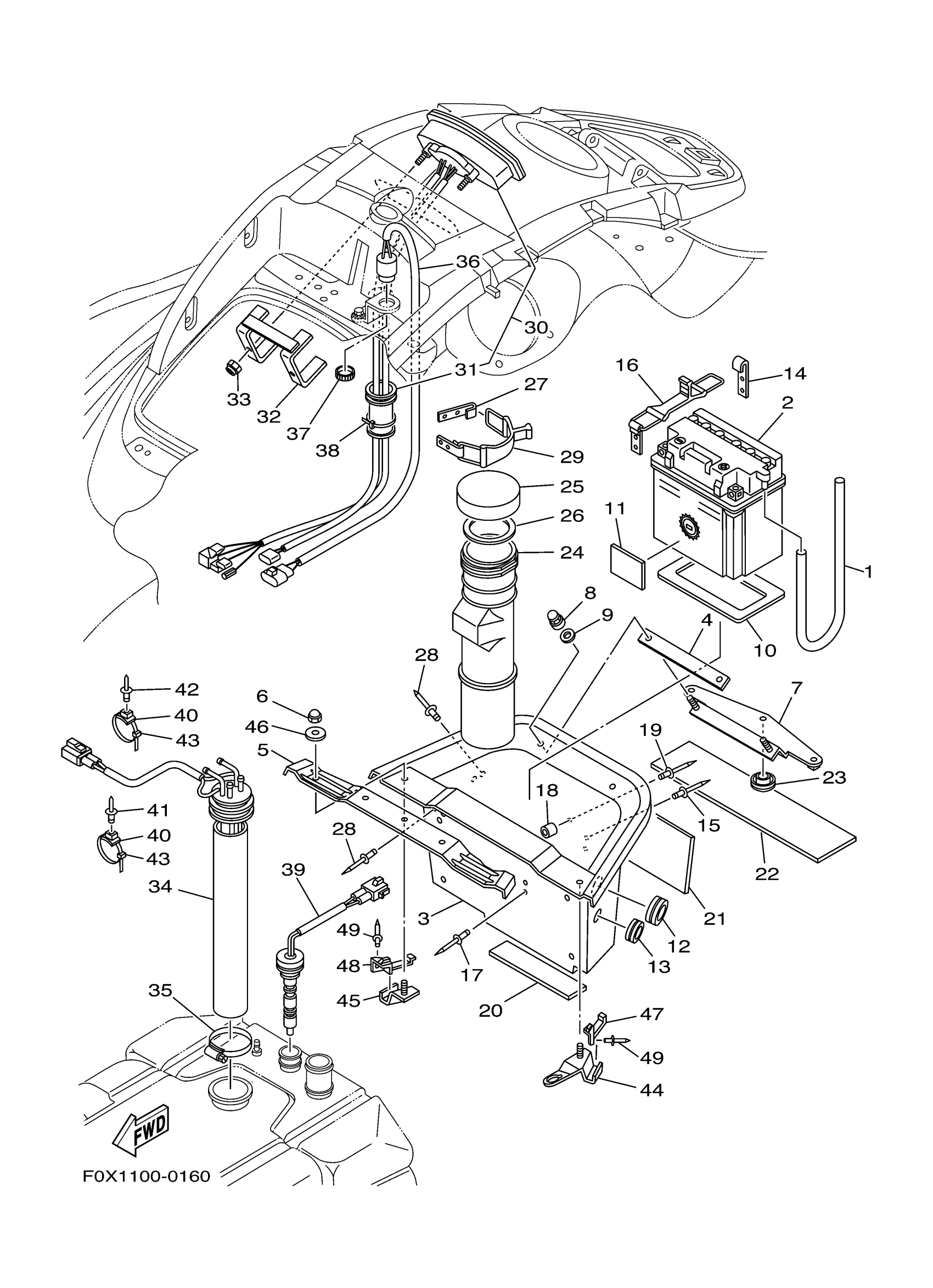

Yamaha GP1200AY (GP1200) F0X1 2000 ELECTRICAL 2 Diagram

#

Description
Price

1

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

2

BATTERY ASSY

EU0-82110-08-00

Unavailable

3

CASE, BATTERY

F1G-U8211-01-00

Unavailable

4

PACKING 5

F0X-U266D-00-00

Unavailable

5

BEAM, DECK 1

F0X-68952-00-00

Unavailable

6

NUT, CROWN

90176-06005-00

Unavailable

7

BRACKET, BASE BATTERY

F0X-6821H-00-00

Unavailable

8

NUT

90179-08978-00

Unavailable

9

WASHER

9299R-08200-00

$2.29

10

PAD, BATTERY

F1S-U8221-00-00

Unavailable

11

MAT 2

F0D-U759C-00-00

Unavailable

12

GROMMET

90480-279U1-00

Unavailable

13

GROMMET

90480-38800-00

Unavailable

14

HOOK A

GA7-65772-00-00

Unavailable

15

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

16

HOOK COMP

GJ1-66607-00-00

Unavailable

17

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

18

CUSHION, RUBBER

GK5-63768-00-00

Unavailable

19

RIVET (EU0)

90267-48938-00

Unavailable

20

TRIM, MAT

F0X-6352C-00-00

Unavailable

21

MAT

GU0-67593-00-00

Unavailable

22

MAT, LOWER

F0X-6351B-00-00

Unavailable

23

CAP

F0X-65568-00-00

Unavailable

24

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

25

. CAP, CASE

EW2-U5912-01-00

Unavailable

26

PACKING, CASE

EW2-U5913-01-00

Unavailable

27

HOOK A

GA7-65772-00-00

Unavailable

28

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

29

HOOK COMP

GJ1-66607-00-00

Unavailable

30

METER ASSY

F0X-6820A-01-00

Unavailable

31

GROMMET

GU2-6822E-01-00

Unavailable

32

BRACKET, METER

GP7-68238-10-00

Unavailable

33

NUT, FLANGE

9572R-05300-00

Unavailable

34

SENDER, FUEL

F0V-U824B-04-00

Unavailable

35

BAND, HOSE 62

90601-162U5-00

Unavailable

36

BUZZER

F1S-68341-00-00

Unavailable

37

NUT

F0X-U8239-00-00

Unavailable

38

CLAMP

90464-32801-00

Unavailable

39

SENDER, OIL

F0D-U824C-21-00

Unavailable

40

CLAMP COMP (EU0)

90600-91736-00

Unavailable

41

RIVET, BLIND

90267-48803-00

Unavailable

42

RIVET, BLIND

90267-48802-00

Unavailable

43

CLAMP

90464-32801-00

Unavailable

44

STAY 1

F0X-65938-01-00

Unavailable

45

STAY 2

F0X-65939-01-00

Unavailable

46

WASHER, PLATE

90201-06014-00

Unavailable

47

PACKING, SEAL 2

F0X-63225-00-00

Unavailable

48

PACKING, SEAL

F0X-63226-00-00

Unavailable

49

RIVET, BLIND

90267-489U6-00

Unavailable
