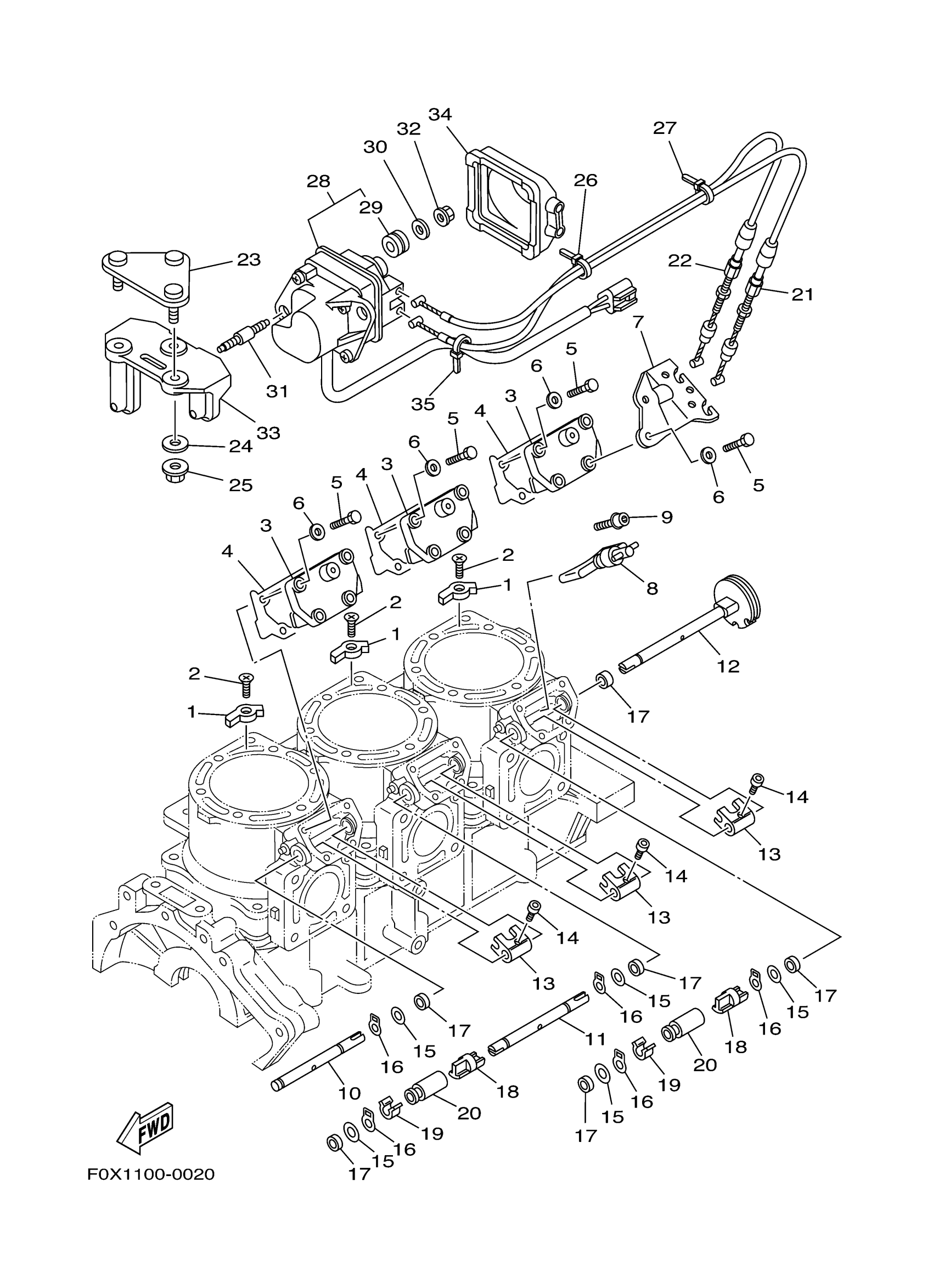

Yamaha GP1200AY (GP1200) F0X1 2000 CYLINDER CRANKCASE 2 Diagram

#

Description
Price

1

ANODE

66E-11325-00-00

Unavailable

2

SCREW, FLAT HEAD

98780-05020-00

Unavailable

3

COVER

66E-1131M-01-00

Unavailable

4

GASKET, COVER

66E-1131B-02-00

Unavailable

5

BOLT(62Y)

97013-06025-00

$1.06

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

BRACKET 1

66E-11998-10-00

Unavailable

8

VALVE ASSY.

66E-1131S-10-00

Unavailable

9

BOLT,SOCKET

91380-05010-00

Unavailable

10

SHAFT 1

66E-1131V-00-00

Unavailable

11

SHAFT 3

66V-11333-00-00

Unavailable

12

PULLEY, SHAFT

66E-1132C-00-00

Unavailable

13

LEVER, LINK

60T-11832-00-00

Unavailable

14

BOLT,SOCKET

91317-04008-00

$8.49

15

WASHER, PLATE

90201-08M09-00

Unavailable

16

CIRCLIP

93410-08M12-00

Unavailable

17

OIL SEAL

93109-08M07-00

Unavailable

18

JOINT 1

66E-1131H-00-00

Unavailable

19

JOINT 2

66E-1131J-10-00

Unavailable

20

COVER, JOINT

66E-1131C-10-00

Unavailable

21

CABLE, PULLEY 1

66E-1133E-10-00

Unavailable

22

CABLE, PULLEY 2

66E-1133F-10-00

Unavailable

23

BRACKET, YPVS

GU0-6824E-00-00

Unavailable

24

WASHER

9299R-08200-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

Unavailable

26

BAND

90601-200U2-00

Unavailable

27

BAND

90601-200U2-00

Unavailable

28

SERVO MOTOR ASSY

67X-85820-00-00

Unavailable

29

GROMMET 839774310000

90480-14023-00

Unavailable

30

WASHER, PLATE

90201-06020-00

Unavailable

31

BOLT, STUD

90116-06M67-00

Unavailable

32

NUT, NYLON

9572R-06300-00

Unavailable

33

BRACKET, REFLECTOR 1

66E-85112-00-94

Unavailable

34

COVER, WIRE

66E-85825-00-00

Unavailable

35

CLAMP

90465-10098-00

Unavailable
