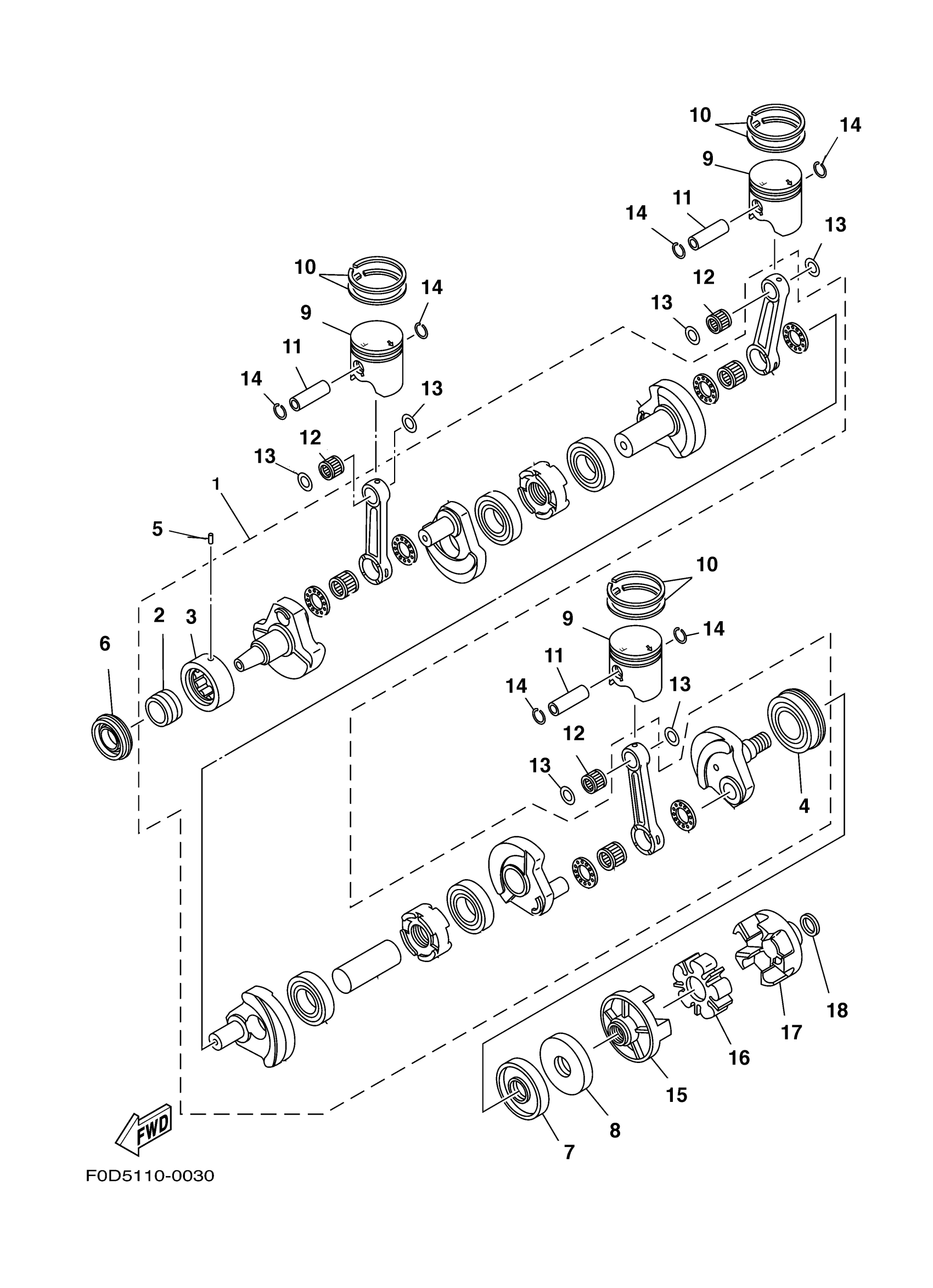

Yamaha GP1200AY (GP1200) F0X1 2000 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66V-11400-00-00

$1,917.90

2

. COLLAR

90387-35M01-00

$92.52

3

. BEARING

93390-000U6-00

Unavailable

4

. BEARING

93306-308U1-00

$102.97

5

PIN (2H7)

93603-10049-00

Unavailable

6

OIL SEAL

93103-35011-00

$34.45

7

OIL SEAL

93101-34001-00

$20.09

8

OIL SEAL

93101-34002-00

$20.09

9

PISTON (STD)

66V-11631-00-A0

$155.21

9

PISTON (STD)

66V-11631-00-B0

$150.73

9

PISTON (STD)

66V-11631-00-C0

$150.73

9

PISTON (STD)

66V-11631-00-D0

Unavailable

10

PISTON RING SET (STD)

66V-11603-00-00

$59.65

11

PIN, PISTON

60T-11633-00-00

$33.01

12

BEARING

93310-422U2-00

$28.11

13

WASHER, PLATE

90201-22M04-00

Unavailable

14

CLIP, PISTON PIN

66E-11634-00-00

$0.92

15

FLANGE, COUPLING

66E-45813-10-94

$101.95

16

RUBBER SHAFT COUPLING

66E-4581J-00-00

$58.19

17

FLANGE, COUPLING

66E-45813-10-94

$101.95

18

WASHER, PLATE

90201-27008-00

Unavailable
