2000 Yamaha GP1200 (GP1200AY) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2000 Yamaha GP1200 (GP1200AY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

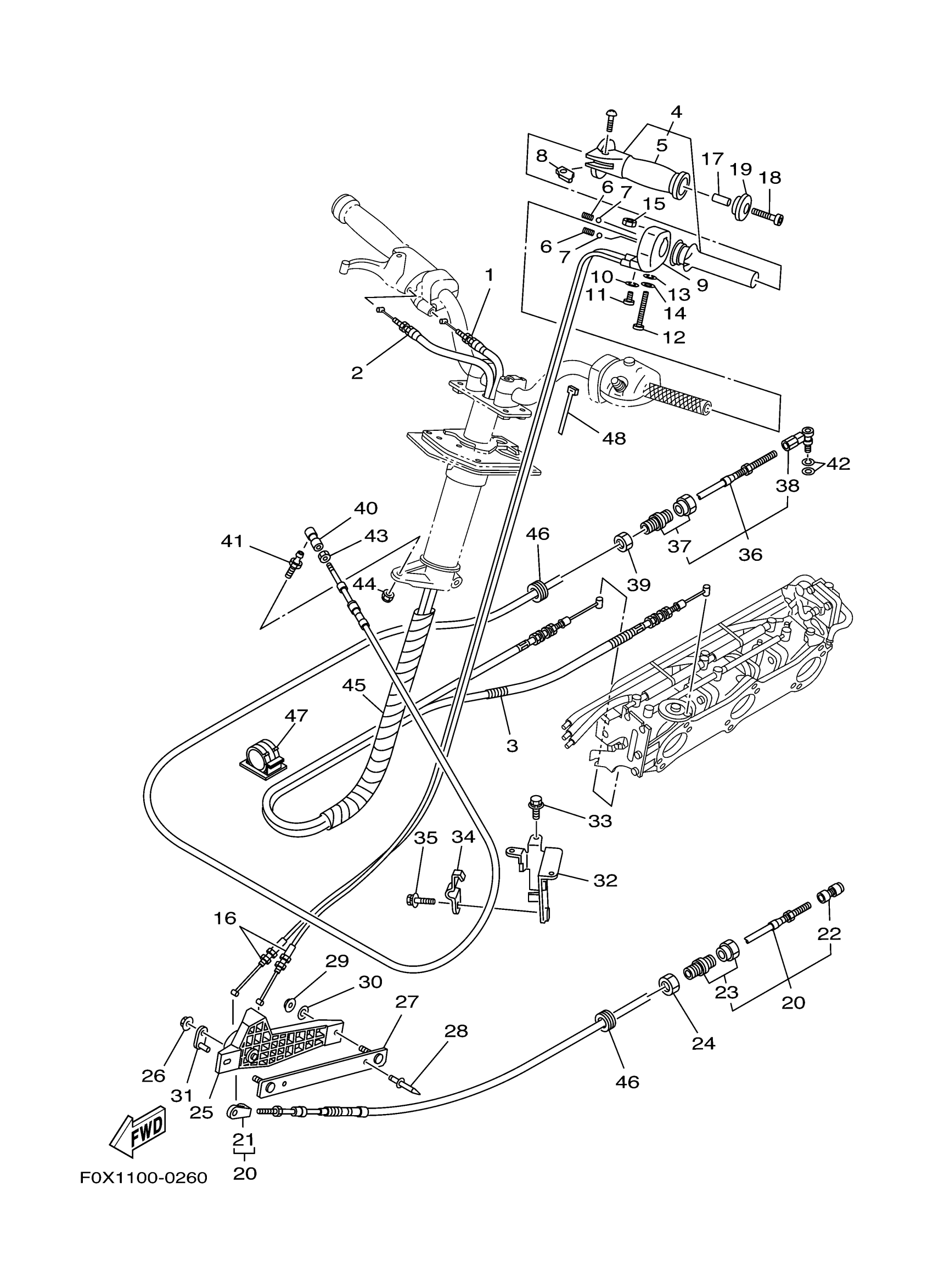

2000 Yamaha GP1200 (GP1200AY) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, CHOKE

67X-67242-00-00

1
Out of stock

2

CABLE, THROTTLE

66V-67252-00-00

1
Out of stock

3

HOSE

90446-10ME3-00

1
Out of stock

4

GRIP, HANDLE ASSY.

GP7-U157A-00-00

1
Out of stock

5

. GRIP, HANDLE

GP7-U155C-00-00

1
Out of stock

6

SPRING

GP7-U152P-00-00

1
Out of stock

7

BALL

GP7-U152R-00-00

1
Out of stock

8

LEVER ASSY

GP7-U151M-00-00

1
Out of stock

9

HOUSING ASSY

GP7-U152M-00-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

11

SCREW, BINDING (M01)

98980-04010-00

1
Out of stock

12

SCREW PAN HEAD

98580-06565-00

—
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

14

WASHER

9299R-06100-00

1
Out of stock

15

NUT, SPECIAL

GH1-U143B-00-00

1
Out of stock

16

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

1
Out of stock

17

COLLAR

90387-05800-00

1
Out of stock

18

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

1
Out of stock

19

GRIP, END

GP7-U155F-00-00

1
Out of stock

20

CABLE,NOZZLE CONTROL 3

F0X-6153E-19-00

1
Out of stock

21

. END, CABLE

GH1-U046C-00-00

1
Out of stock

22

SHAFT,JOINT BALL

EU0-61461-30-00

1
Out of stock

23

. CONNECTOR, CABLE

EU0-67267-10-00

1
Out of stock

24

. NUT, DRAIN 1

EU0-62241-30-00

1
Out of stock

25

REMOCON,NOZZLE 2

F0D-U153J-10-00

1
Out of stock

26

NUT, NYLON

9572R-06300-00

1
Out of stock

27

BASE, REMOCON.

F0X-U4958-00-00

1
Out of stock

28

RIVET, BLIND

90267-489U6-00

1
Out of stock

29

NUT, NYLON

9572R-06300-00

1
Out of stock

30

WASHER

9299R-06200-00

1
Out of stock

31

PIN

F0D-U152C-10-00

1
Out of stock

32

BRACKET, STOPPER CABLE

F0X-61467-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-06827-00

1
Out of stock

34

STOPPER, CABLE

F0X-61468-00-00

1
Out of stock

35

BOLT, WITH WASHER

90119-06830-00

—
Out of stock

36

CABLE, STEERING

F0X-U1481-10-00

1
Out of stock

37

CONNECTOR, CABLE

GK5-67267-00-00

1
Out of stock

38

. STUD, JOINT BALL

F1B-61461-02-00

1
Out of stock

39

. NUT, DRAIN 1

EU0-62241-30-00

1
Out of stock

40

SHAFT,JOINT BALL

GK5-U146F-00-00

1
Out of stock

41

SHAFT, JOINT BALL

EU0-U1461-10-00

1
Out of stock

42

WASHER, PLATE

90201-06906-00

1
Out of stock

43

NUT

9538R-06700-00

1
Out of stock

44

NUT, NYLON

9572R-06300-00

1
Out of stock

45

HOSE, WITH UNION

90448-25800-00

1
Out of stock

46

GROMMET

90480-279U1-00

1
Out of stock

47

CLAMP

90600-925U9-00

1
Out of stock

48

BAND

90601-200U2-00

1
Out of stock
