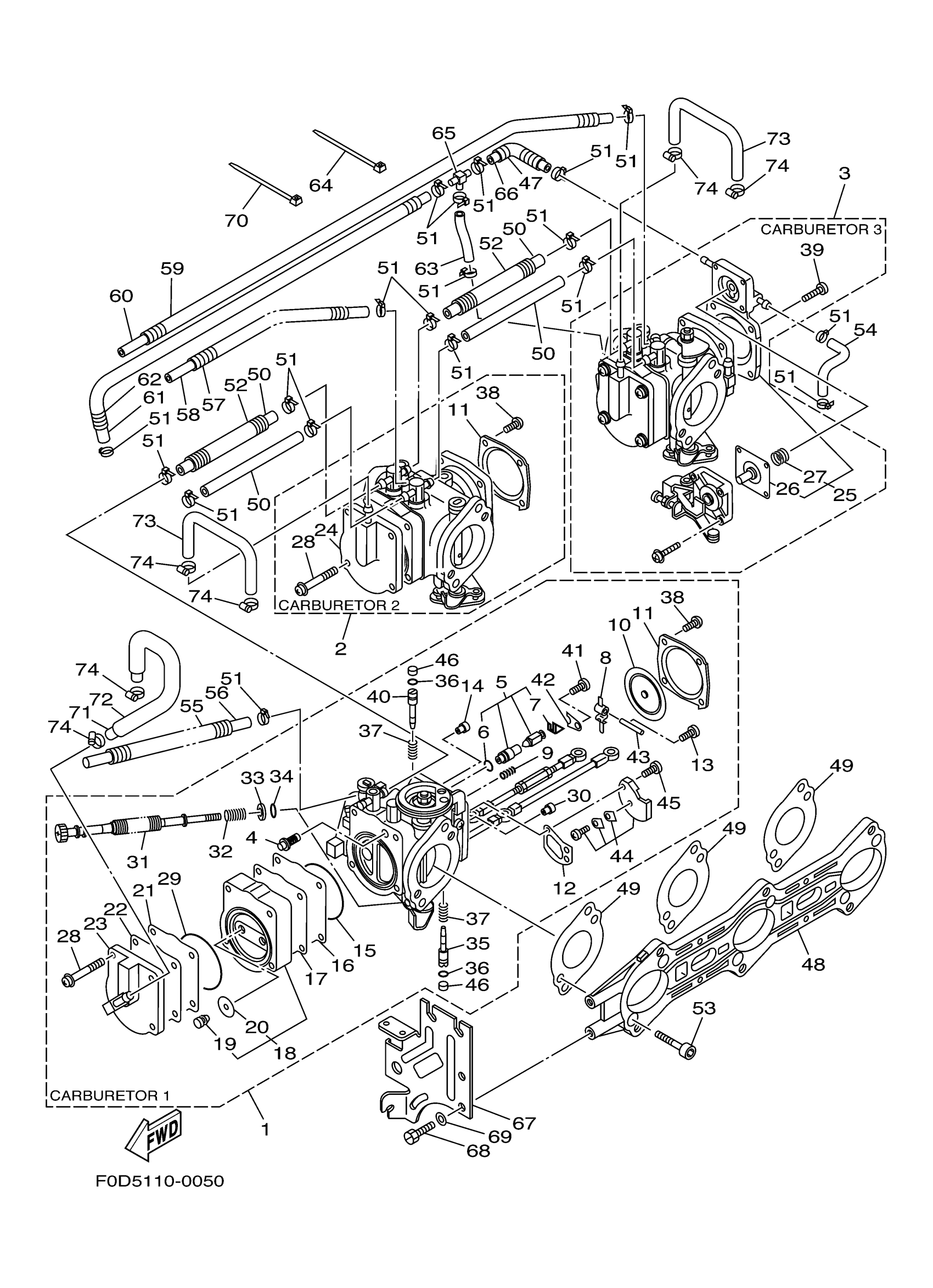

Yamaha GP1200AY (GP1200) F0X1 2000 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSY 1

67X-14301-02-00

Unavailable

2

CARBURETOR ASSY 2

67X-14302-02-00

Unavailable

3

CARBURETOR ASSY 3

67X-14303-02-00

Unavailable

4

. STRAINER

6R7-14569-00-00

Unavailable

5

NEEDLE

64T-14916-01-00

Unavailable

6

O-RING

8F2-14147-00-00

$2.96

7

CLIP

7EG-14159-00-00

$4.37

8

. ARM, FLOAT

6K8-14547-01-00

Unavailable

9

. SPRING

6R7-14253-00-00

Unavailable

10

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

11

. BODY, PUMP 1

6R7-14542-00-00

Unavailable

12

. GASKET

6K8-14536-11-00

Unavailable

13

. SCREW

6K8-14503-02-00

Unavailable

14

JET,MAIN #117.5

3G2-1423A-74-00

$13.49

15

. O-RING

66E-14563-01-00

Unavailable

16

. DIAPHRAGM

66E-24471-00-00

Unavailable

17

. DIAPHRAGM

66E-24411-00-00

Unavailable

18

BODY 2

66E-24413-01-00

Unavailable

19

.. BUSH, FUEL PUMP

65U-24492-00-00

Unavailable

20

.. VALVE, CHECK 1

66E-24362-00-00

Unavailable

21

. VALVE, CHECK

66E-24421-00-00

Unavailable

22

. GASKET, FUEL PUMP 1

66E-24431-00-00

Unavailable

23

. COVER

66V-24452-00-00

Unavailable

24

. COVER

66V-24452-10-00

Unavailable

25

. COVER, CARBURETOR

66E-14280-00-00

Unavailable

26

.. DIAPHRAGM ASSY

66E-14170-00-00

Unavailable

27

.. SPRING

66E-14286-00-00

Unavailable

28

. SCREW, PAN HEAD

90157-05M17-00

Unavailable

29

. O-RING

66E-14564-01-00

Unavailable

30

. JET, MAIN (# 950)

1HX-14231-19-00

Unavailable

31

. SCREW, CABLE ADJUSTING

66V-14124-00-00

Unavailable

32

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

33

WASHER,NEEDLE

812-14235-00-00

Unavailable

34

. O-RING

6K8-14562-00-00

Unavailable

35

. SCREW, PILOT ADJUSTING

66V-14211-00-00

Unavailable

36

O-RING (248)

93210-03119-00

Unavailable

37

. COIL, SPRING

66V-14160-00-00

Unavailable

38

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

39

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

40

. PLATE, NEEDLE FITTING

66V-14946-00-00

Unavailable

41

. SCREW

6M6-14503-00-00

Unavailable

42

. PLATE

6K8-14527-11-00

Unavailable

43

. PIN, FLOAT

439-14186-00-00

Unavailable

44

. BODY 1

66E-24412-00-00

Unavailable

45

SCREW, STOP

6K8-14523-12-00

Unavailable

46

. PLUG

66V-1432A-00-00

Unavailable

47

HOSE, WITH SPRING

90447-07003-00

Unavailable

48

PLATE

66V-14146-00-00

Unavailable

49

. GASKET

66E-14398-00-00

Unavailable

50

HOSE

90445-11M73-00

Unavailable

51

CLIP, PIPE

35H-14139-00-00

Unavailable

52

HOSE

90446-17MG6-00

Unavailable

53

BOLT, HOLDING

66E-14162-00-00

Unavailable

54

HOSE

90445-07004-00

Unavailable

55

HOSE

90446-10MG0-00

Unavailable

56

HOSE

90446-07MG1-00

Unavailable

57

HOSE

90446-10MG2-00

Unavailable

58

HOSE

90446-07MG3-00

Unavailable

59

HOSE

90446-10MG4-00

Unavailable

60

HOSE

90446-07MG5-00

Unavailable

61

HOSE

90445-07005-00

Unavailable

62

HOSE, WITH SPRING

90447-07004-00

Unavailable

63

HOSE

90445-07003-00

Unavailable

64

CLIP

4KM-14137-00-00

Unavailable

65

NIPPLE

66E-14251-00-00

Unavailable

66

HOSE

66V-14294-00-00

Unavailable

67

PLATE

66V-14527-00-00

Unavailable

68

BOLT(GH1)

97080-06012-00

Unavailable

69

WASHER, PLAIN (646)

92990-06600-00

Unavailable

70

CLAMP

90465-13M60-00

Unavailable

71

PIPE 2

66V-24312-00-00

Unavailable

72

HOSE

90446-14MA9-00

Unavailable

73

PIPE 3

66V-24313-01-00

Unavailable

74

CLAMP, HOSE(61L)

90460-11M17-00

Unavailable
