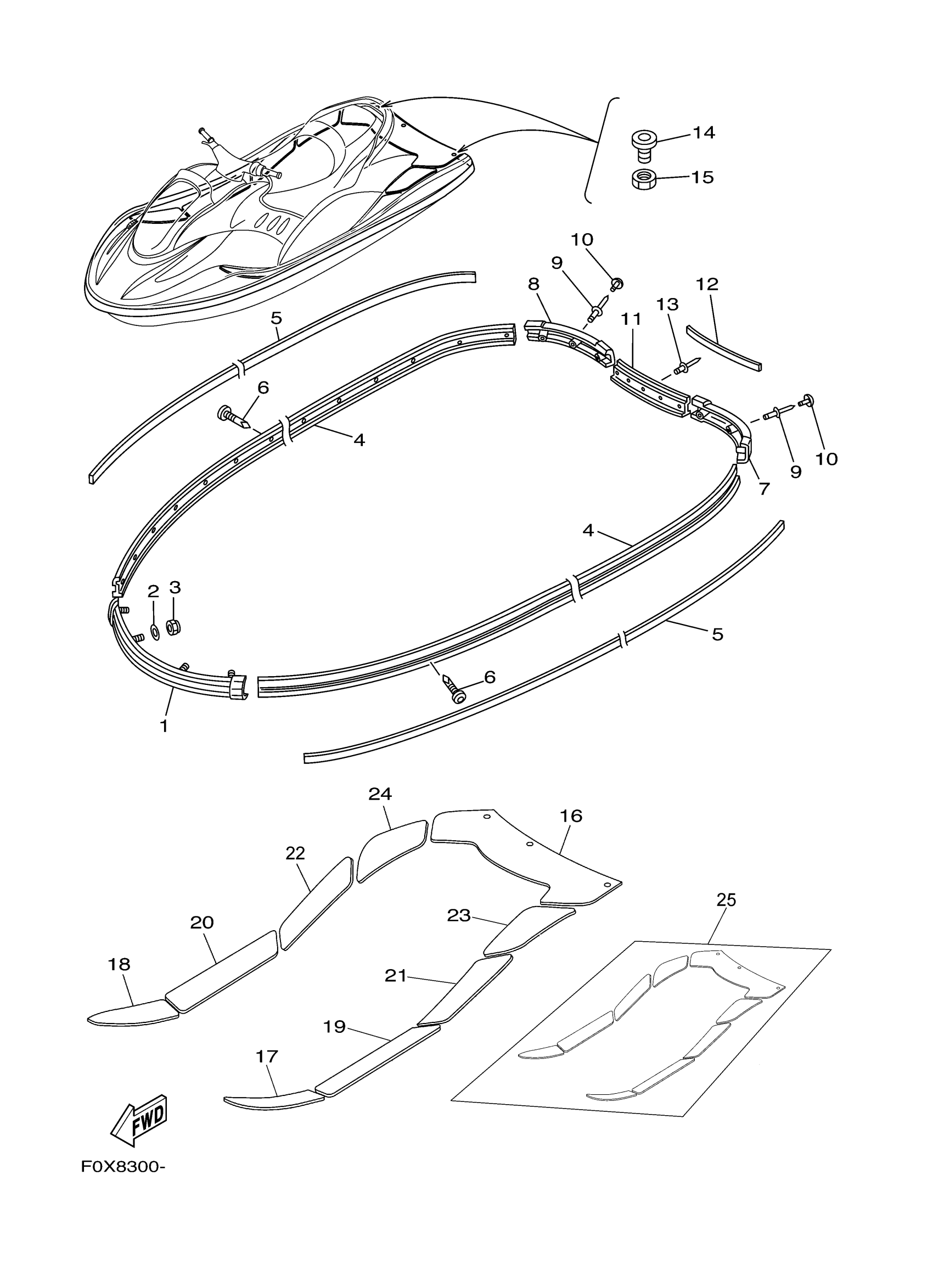

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 GUNWALE MAT Diagram
#
Description
Price
1
BOW GUNWALE COMP.
GP7-U2501-20-00
Unavailable
2
WASHER
9299R-06200-00
Unavailable
3
NUT, NYLON
9572R-06300-00
Unavailable
4
GUNWALE, SIDE
F0X-U2512-00-00
Unavailable
5
GUNWALE,INNER (BLACK)
F0X-U2519-02-00
Unavailable
6
SCREW,TAPPING
90169-059U1-00
Unavailable
7
GUNWALE, STERN 1
F0X-U251D-00-00
Unavailable
8
GUNWALE, STERN 2
F0X-U251E-00-00
Unavailable
9
RIVET, BLIND
90267-489US-00
Unavailable
10
PLUG, MUSHROOM
GJ3-U352E-50-00
Unavailable
11
COVER, GUNWALE 1
F0X-U252C-00-00
Unavailable
12
COVER, GUNWALE 2(BLACK)
F0X-U252D-01-00
Unavailable
13
RIVET, BLIND
90267-489US-00
Unavailable
14
ROPE HOLE
FN8-61651-01-00
Unavailable
15
NUT
EU0-61652-00-00
Unavailable
16
MAT, UPPER
F0X-U3581-01-00
Unavailable
17
MAT, STEP 1
F0X-U351H-00-00
Unavailable
18
MAT, STEP 2
F0X-U351J-00-00
Unavailable
19
MAT, STEP 3
F0X-U351K-02-00
Unavailable
20
MAT, STEP 4
F0X-U351M-02-00
Unavailable
21
MAT, STEP 5
F0X-U351N-00-00
Unavailable
22
MAT, STEP 6
F0X-U351P-00-00
Unavailable
23
MAT, STEP 7
F0X-U351R-01-00
Unavailable
24
MAT, STEP 8
F0X-U351S-01-00
Unavailable
25
MAT KIT BLACK
F0X-MATKT-00-BK
Unavailable
