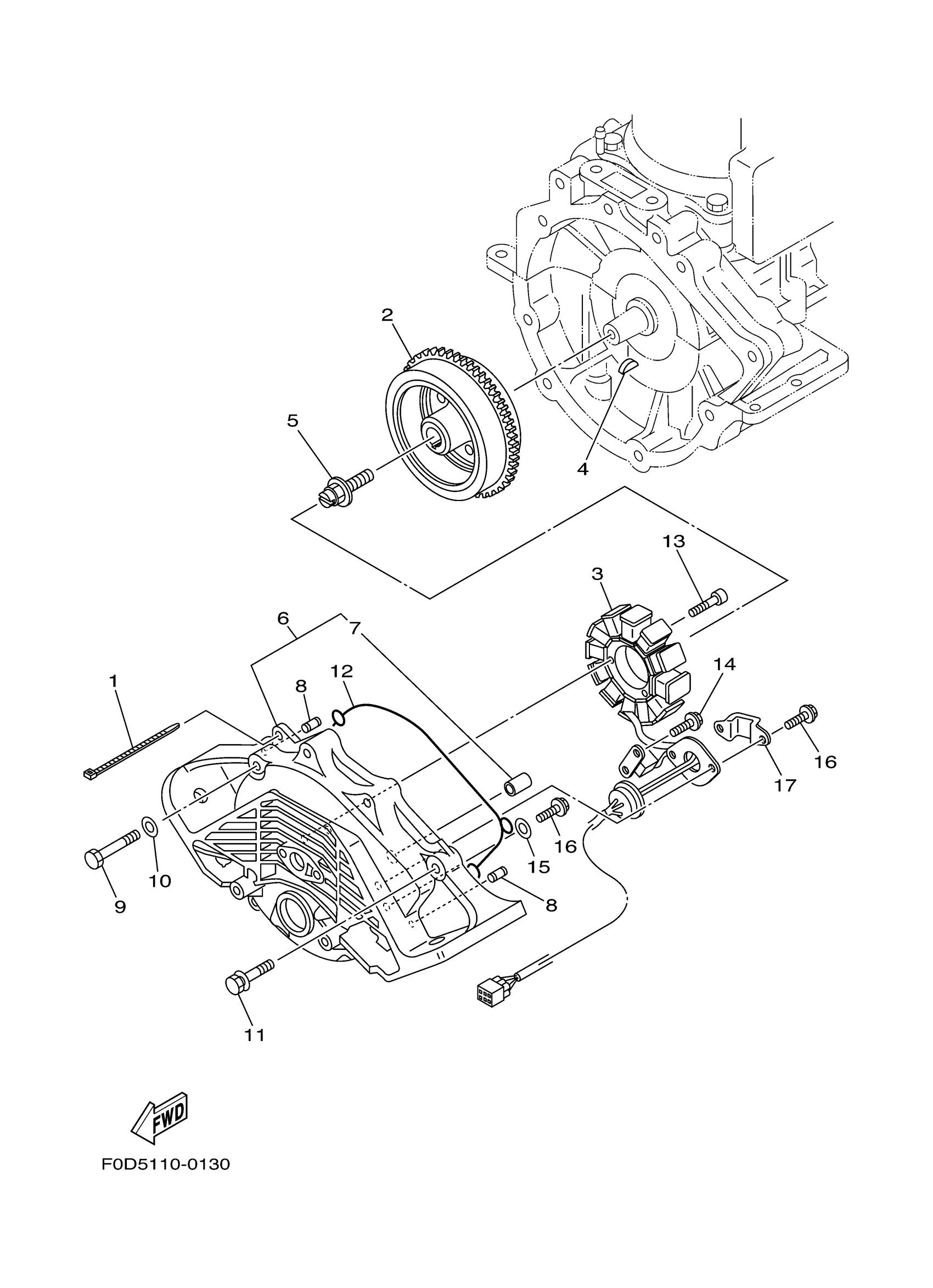

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 GENERATOR Diagram

Description

Price

CLAMP

90465-10098-00

$1.68

ROTOR ASSY

66V-85550-00-00

Unavailable

STATOR ASSY

66V-85510-00-00

$377.26

KEY, WOODRUFF

90280-05001-00

$11.00

BOLT(63M)

90109-10M72-00

$31.80

COVER, FLYWHEEL

68N-81337-00-94

$478.77

. BUSH, SOLID

90380-12M29-00

Unavailable

PIN, DOWEL

93608-16M16-00

$2.41

BOLT, HEXAGON

97013-10055-00

Unavailable

WASHER, PLATE

92990-10600-00

$2.57

BOLT, WITH WASHER

90119-10M17-00

$9.08

. O-RING

66V-81168-10-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

BOLT, WITH WASHER

97513-05514-00

$3.64

WASHER, PLATE

90201-06M02-00

$2.20

BOLT,SOCKET

91318-06014-00

Unavailable

CLAMP

66V-81328-00-00

$7.27
