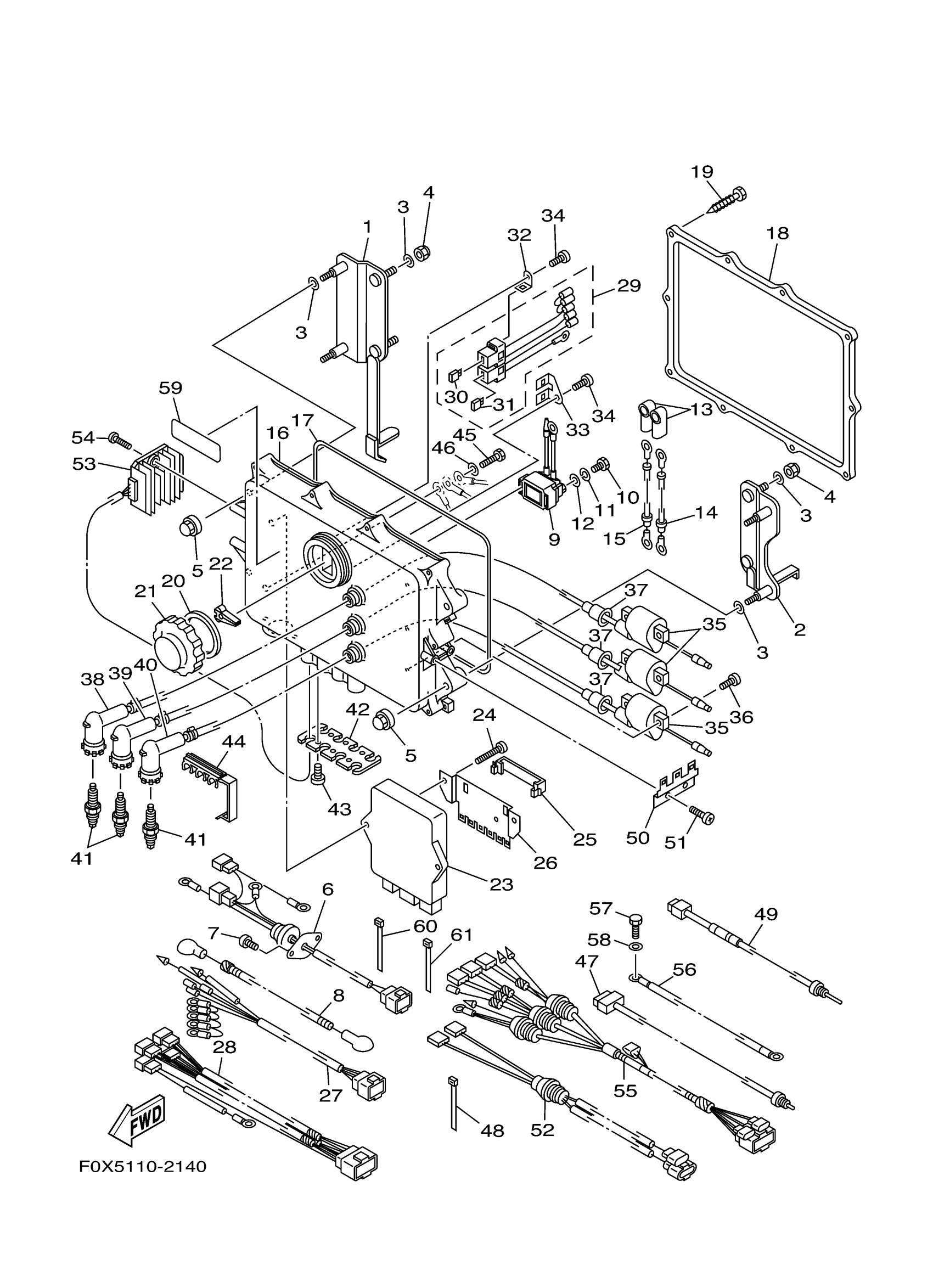

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F0X-6815D-00-00

Unavailable

2

BRACKET, ERECTRIC BOX 2

F0X-6815E-00-00

$117.63

3

WASHER

9299R-08200-00

Unavailable

4

NUT, NYLON (6J8)

95780-08300-00

$10.09

5

NUT

90179-08978-00

$6.18

6

LEAD WIRE ASSY

66V-81315-00-00

$207.34

7

SCREW, TAPPING

97780-60425-00

Unavailable

8

WIRE, LEAD

67X-82117-00-00

Unavailable

9

STARTER RELAY ASSY

68N-81940-00-00

$110.28

10

BOLT

97085-06010-00

$1.21

11

WASHER, SPRING

92995-06100-00

$2.87

12

WASHER, PLAIN (646)

92990-06600-00

$2.38

13

COVER, LEAD WIRE

66V-82119-00-00

$2.21

14

WIRE, LEAD

67X-82117-10-00

Unavailable

15

WIRE, LEAD

67X-82117-20-00

$126.46

16

HOUSING

66V-8552A-00-00

$210.28

17

GASKET, TERMINAL

66V-81921-00-00

$22.78

18

COVER, CASE

66V-8552E-00-00

$79.40

19

SCREW, TAPPING

97780-60430-00

Unavailable

20

. GASKET

66V-81844-00-00

$8.81

21

. CAP

66V-8132W-00-00

$15.43

22

. PULLER, FUSE

67F-2812A-00-00

$4.55

23

C.D.I. UNIT ASSY

66V-85540-00-00

$626.46

24

SCREW, TAPPING

97780-60530-00

Unavailable

25

CLAMP, HARNESS

66V-83919-00-00

$6.18

26

BRACKET 1

66V-83955-00-00

$15.43

27

LEAD WIRE ASSY

66V-85515-00-00

$129.40

28

WIRE, LEAD

66V-83553-00-00

$147.04

29

FUSE HOLDER ASSY

66V-82150-00-00

Unavailable

30

FUSE

5JJ-82151-20-00

Unavailable

31

. FUSE (10A)

67F-82151-40-00

$6.40

32

STAY, FUSE BOX

66V-82171-00-00

$8.07

33

STAY, FUSE HOLDER

66V-82153-00-00

$8.07

34

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

35

IGNITION COIL ASSY

66V-85570-00-00

$139.69

36

SCREW, TAPPING(65J)

97780-60625-00

$2.64

37

GROMMET

66V-82355-00-00

Unavailable

38

HIGH TENSION CORD ASSY 1

66V-82340-01-00

Unavailable

39

HIGH TENSION CORD ASSY 1

66V-82340-11-00

Unavailable

40

HIGH TENSION CORD ASSY 1

67X-82340-21-00

Unavailable

41

BR8ES-11 NGK 4PK

BR8-ES110-00-00

$4.87

42

COVER

66V-85525-00-00

$7.06

43

SCREW, TAPPING

97780-60425-00

Unavailable

44

CLAMP, CORD

65U-81317-10-00

$6.88

45

BOLT(GH1)

97080-06012-00

$2.27

46

WASHER, PLAIN (646)

92990-06600-00

$2.38

47

THERMOSENSOR ASSY

66V-85790-10-00

$122.35

48

CLAMP

90465-10098-00

$2.24

49

SENSOR, EXT, TEMP.

66V-85881-00-00

$272.04

50

BRACKET

66V-85542-00-00

$4.41

51

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

52

WIRE, SUB LEAD

66V-82509-00-00

$124.99

53

RECTIFIER & REGULATOR ASSY

66V-81960-00-00

Unavailable

54

SCREW, TAPPING

97780-60425-00

Unavailable

55

EXTENSION, WIRE LEAD

67X-82553-10-00

$347.04

56

WIRE, LEAD 2

66V-82127-00-00

Unavailable

57

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

58

WASHER, PLAIN (646)

92990-06600-00

$2.38

59

MARK 3

6R7-83623-40-00

$7.06

60

CLAMP(6E8)

90465-13M39-00

Unavailable

61

CLAMP

90465-11M52-00

$4.50
