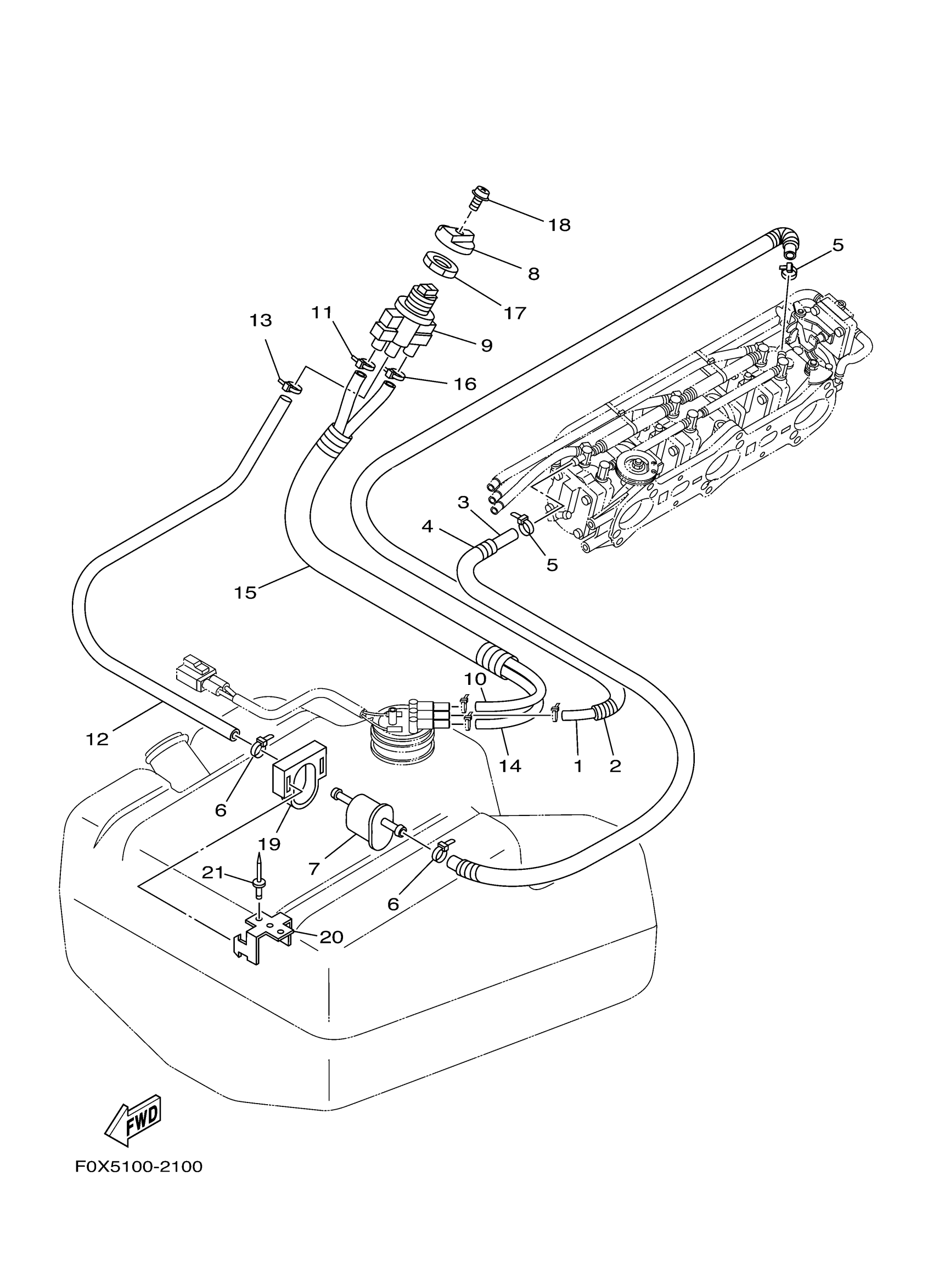

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 FUEL Diagram

#

Description
Price

1

HOSE (L1500)

90445-11009-00

Unavailable

2

HOSE, WITH SPRING

90447-13001-00

Unavailable

3

HOSE

90445-11022-00

Unavailable

4

HOSE, WITH SPRING

90447-13006-00

$17.99

5

CLAMP

90465-10098-00

$1.68

6

CLAMP

90465-10098-00

$1.68

7

FILTER ASSY

66V-24560-01-00

$32.97

8

LEVER, COCK

6K8-24524-10-00

$11.84

9

FUEL COCK ASSY 1

66V-24500-02-00

$63.62

10

HOSE (L550)

90445-11006-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

HOSE (L590)

90445-11089-00

Unavailable

13

CLAMP

90465-10098-00

$1.68

14

HOSE (L550)

90445-11008-00

Unavailable

15

HOSE(63M)

90446-27M55-00

$14.36

16

CLAMP

90465-10098-00

$1.68

17

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

18

SCREW, WITH WASHER

90159-04800-00

Unavailable

19

HOLDER, FILTER

EU0-U7817-00-00

$13.63

20

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

21

RIVET (EU0)

90267-48938-00

$5.00
