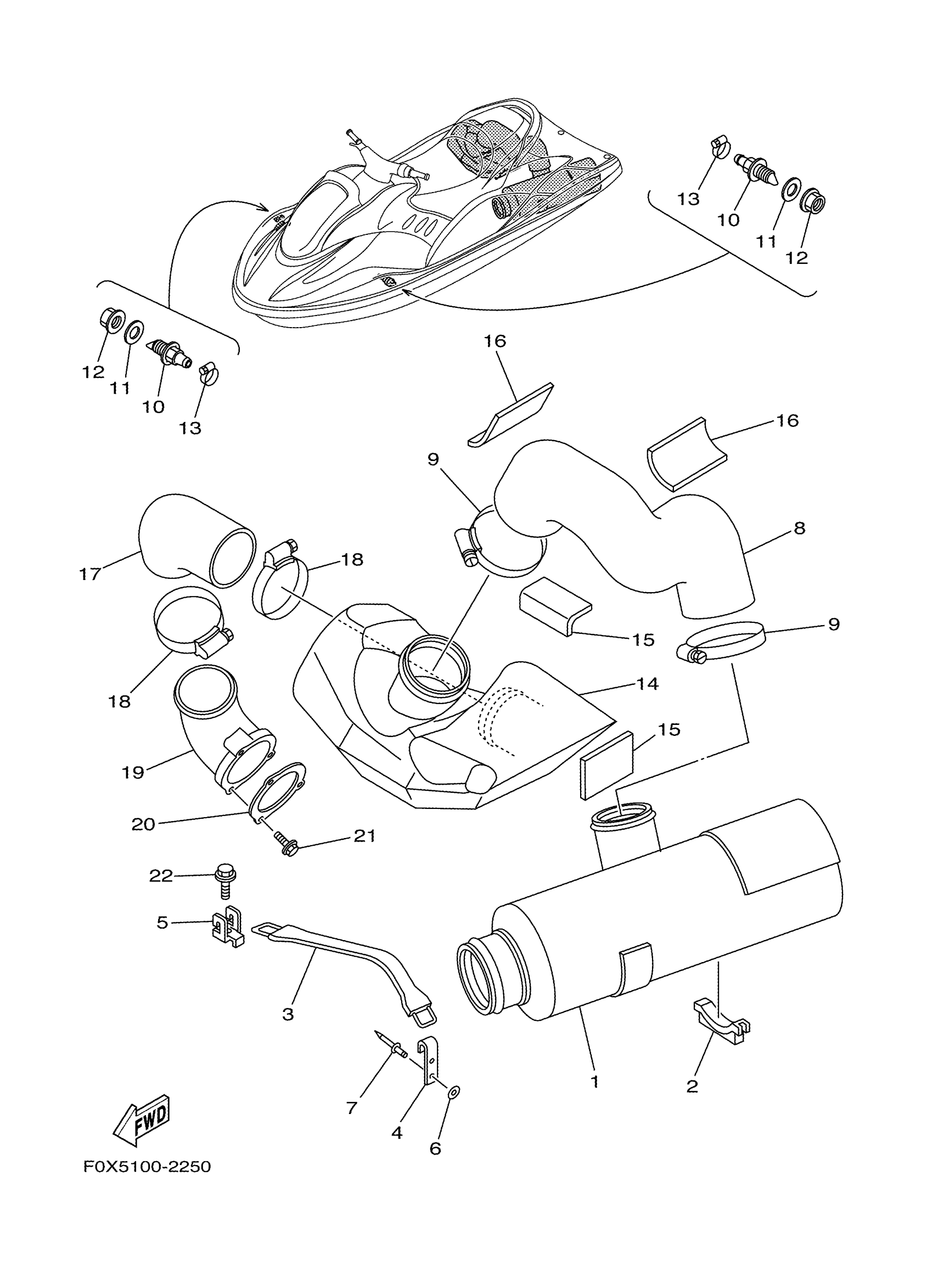

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 EXHAUST 3 Diagram
#
Description
Price
1
WATER LOCK COMP.
F0X-67550-02-00
Unavailable
2
MAT, WATER LOCK
F0X-6755J-00-00
Unavailable
3
BAND,BATTERY 1
EU0-U821D-00-00
Unavailable
4
HOOK A
GA7-65772-00-00
Unavailable
5
HOOK A
EW2-U5772-00-00
Unavailable
6
WASHER
9299R-05200-00
Unavailable
8
HOSE, EXHAUST
F0X-U7555-00-00
Unavailable
9
HOSE CLAMP ASSY
90450-99801-00
Unavailable
10
PILOT, WATER
F0X-6753B-00-00
Unavailable
11
GASKET(GJ1)
90430-16910-00
Unavailable
12
NUT
F0X-62733-00-00
Unavailable
13
BAND, HOSE 18
90601-118UF-00
Unavailable
14
TANK, WATER
F0X-U4261-13-00
Unavailable
15
MAT, WATER LOCK
GP8-6755J-00-00
Unavailable
16
MAT
GU0-67593-00-00
Unavailable
17
HOSE, EXHAUST 2
F0X-U758C-00-00
Unavailable
18
BAND, HOSE 95
90601-195UD-00
Unavailable
19
THRU-HULL,EXHAUST
F0D-67565-01-00
Unavailable
20
PACKING
F0D-U7525-01-00
Unavailable
21
BOLT, WITH WASHER
90119-06896-00
Unavailable
22
BOLT, WITH WASHER
90119-06830-00
Unavailable
