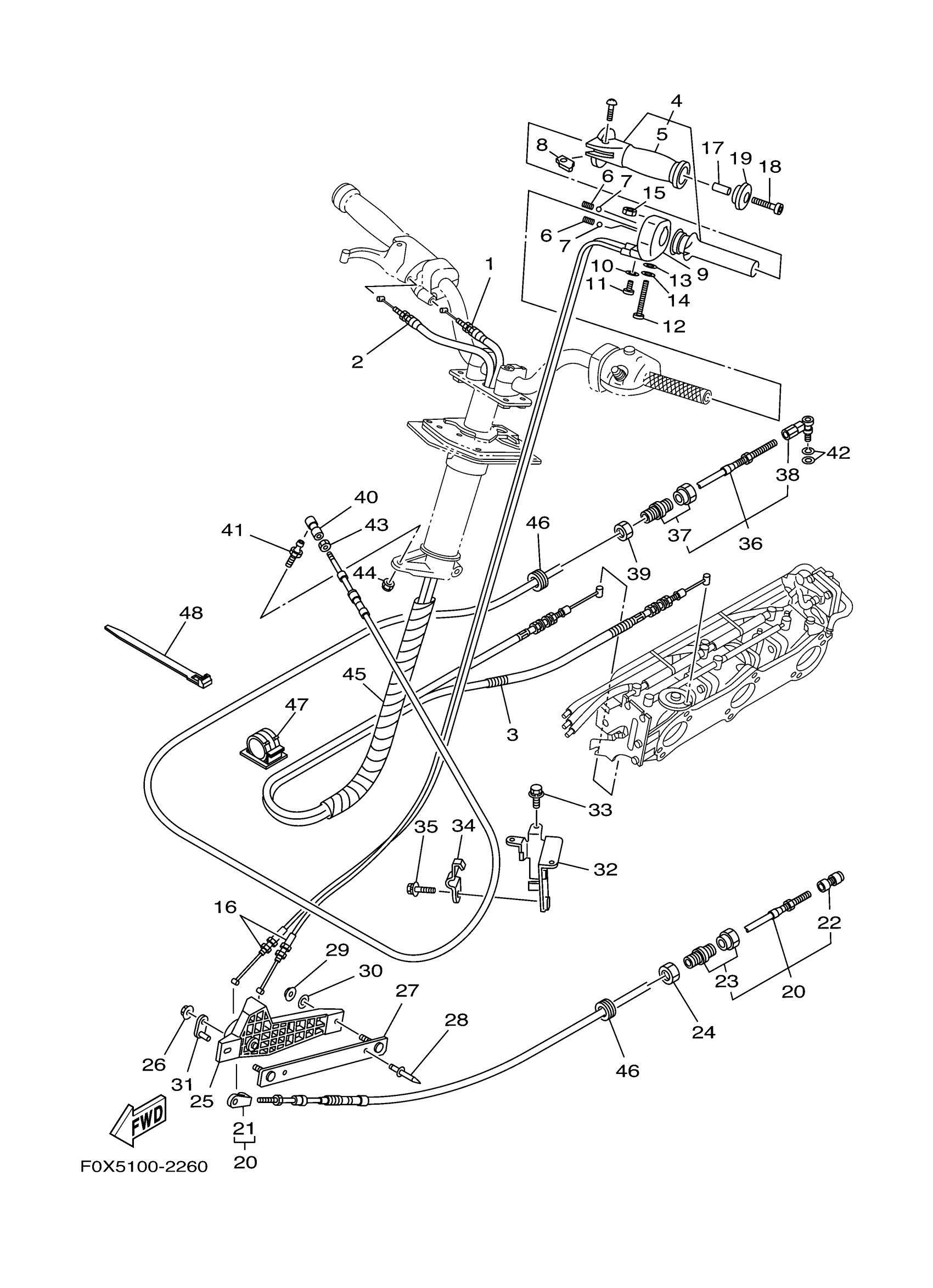

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 CONTROL CABLE Diagram
#
1
CABLE, CHOKE
67X-67242-00-00
Unavailable
2
CABLE, THROTTLE
66V-67252-00-00
Unavailable
3
HOSE
90446-10ME3-00
$7.49
4
GRIP, HANDLE ASSY.
GP7-U157A-00-00
Unavailable
5
. GRIP, HANDLE
GP7-U155C-00-00
Unavailable
6
SPRING
GP7-U152P-00-00
Unavailable
7
BALL
GP7-U152R-00-00
Unavailable
8
LEVER ASSY
GP7-U151M-00-00
Unavailable
9
HOUSING ASSY
GP7-U152M-00-00
Unavailable
10
WASHER, PLAIN (646)
92990-04600-00
$5.99
11
SCREW, BINDING (M01)
98980-04010-00
$6.99
12
SCREW PAN HEAD
98580-06565-00
Unavailable
13
WASHER, PLAIN (646)
92990-06600-00
$2.80
14
WASHER
9299R-06100-00
Unavailable
15
NUT, SPECIAL
GH1-U143B-00-00
Unavailable
16
CABLE, NOZZLE CONTROL 2
F0D-U153D-01-00
Unavailable
17
COLLAR
90387-05800-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-05908-00
Unavailable
19
GRIP, END
GP7-U155F-00-00
Unavailable
20
CABLE,NOZZLE CONTROL 3
F0X-6153E-19-00
Unavailable
21
. END, CABLE
GH1-U046C-00-00
Unavailable
22
SHAFT,JOINT BALL
EU0-61461-30-00
Unavailable
23
. CONNECTOR, CABLE
EU0-67267-10-00
Unavailable
24
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
25
REMOCON,NOZZLE 2
F0D-U153J-10-00
Unavailable
26
NUT, NYLON
9572R-06300-00
Unavailable
27
BASE, REMOCON.
F0X-U4958-00-00
Unavailable
28
RIVET, BLIND
90267-489U6-00
Unavailable
29
NUT, NYLON
9572R-06300-00
Unavailable
30
WASHER
9299R-06200-00
Unavailable
31
PIN
F0D-U152C-10-00
Unavailable
32
BRACKET, STOPPER CABLE
F0X-61467-00-00
Unavailable
33
BOLT, WITH WASHER
90119-06827-00
Unavailable
34
STOPPER, CABLE
F0X-61468-00-00
Unavailable
35
BOLT, WITH WASHER
90119-06830-00
Unavailable
36
CABLE, STEERING
F0X-U1481-10-00
Unavailable
37
CONNECTOR, CABLE
GK5-67267-00-00
Unavailable
38
. STUD, JOINT BALL
F1B-61461-02-00
Unavailable
39
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
40
SHAFT,JOINT BALL
GK5-U146F-00-00
Unavailable
41
SHAFT, JOINT BALL
EU0-U1461-10-00
Unavailable
42
WASHER, PLATE
90201-06906-00
Unavailable
43
NUT
9538R-06700-00
Unavailable
44
NUT, NYLON
9572R-06300-00
Unavailable
45
HOSE, WITH UNION
90448-25800-00
Unavailable
46
GROMMET
90480-279U1-00
Unavailable
47
CLAMP
90600-925U9-00
Unavailable
48
BAND
90601-200U2-00
Unavailable
