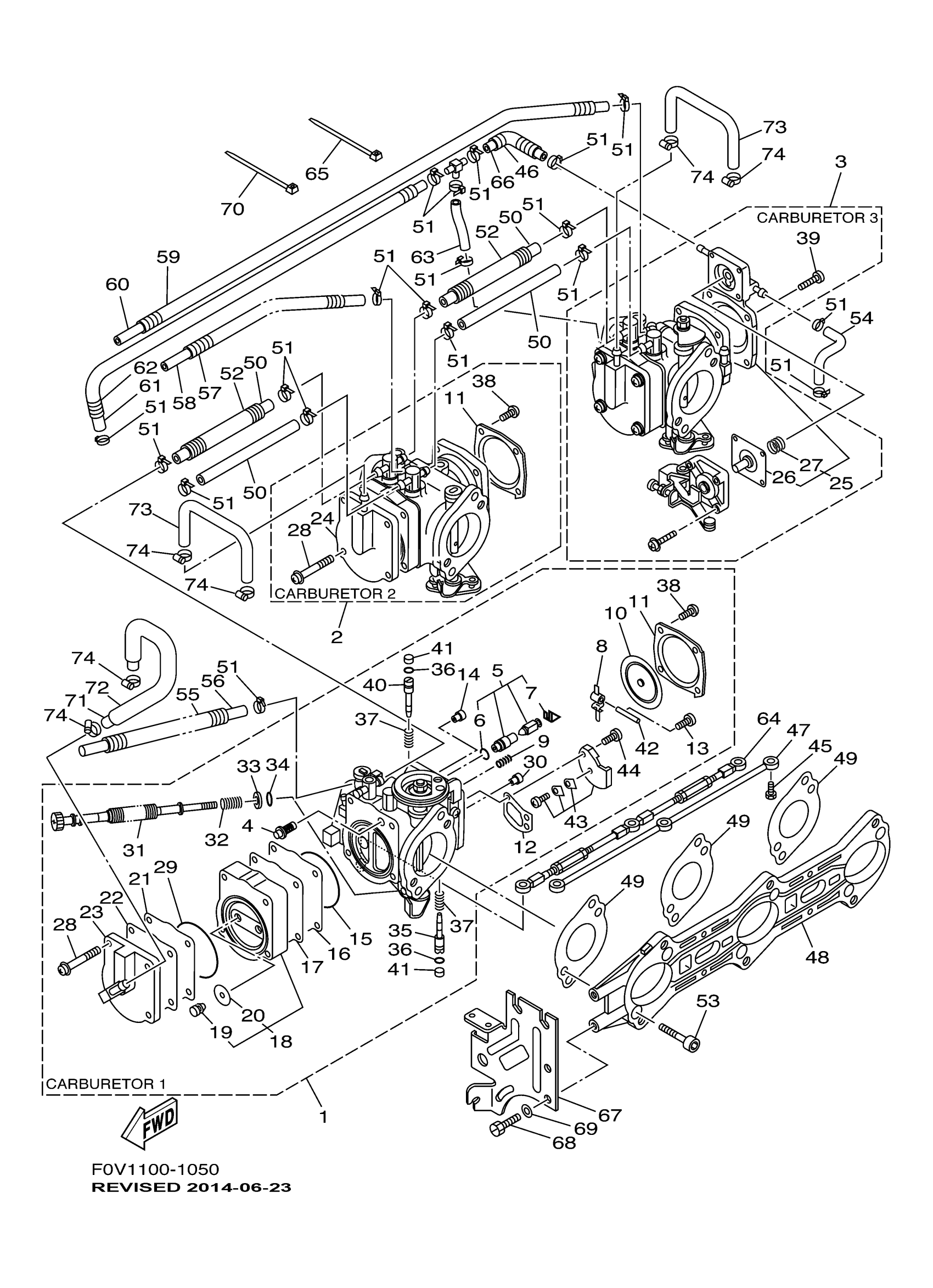

Yamaha GP1200ACA (WAVE RUNNER GP1200R) F0X51 2002 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
67X-14301-04-00
Unavailable
2
CARBURETOR ASSY 2
67X-14302-03-00
Unavailable
3
CARBURETOR ASSY 3
67X-14303-04-00
Unavailable
4
. STRAINER
6R7-14569-00-00
Unavailable
5
NEEDLE
64T-14916-01-00
Unavailable
6
O-RING
8F2-14147-00-00
$2.96
7
CLIP
7EG-14159-00-00
$4.37
8
. ARM, FLOAT
6K8-14547-01-00
Unavailable
9
. SPRING
6R7-14253-00-00
Unavailable
10
. DIAPHRAGM, PUMP
6R7-14541-00-00
Unavailable
11
. BODY, PUMP 1
6R7-14542-00-00
Unavailable
12
. GASKET
6K8-14536-11-00
Unavailable
13
. SCREW
6K8-14503-02-00
Unavailable
14
JET,MAIN #117.5
3G2-1423A-74-00
$13.49
15
. O-RING
66E-14563-01-00
Unavailable
16
. DIAPHRAGM
66E-24471-00-00
Unavailable
17
. DIAPHRAGM
66E-24411-00-00
Unavailable
18
BODY 2
66E-24413-01-00
Unavailable
19
.. BUSH, FUEL PUMP
65U-24492-00-00
Unavailable
20
.. VALVE, CHECK 1
66E-24362-00-00
Unavailable
21
. VALVE, CHECK
66E-24421-00-00
Unavailable
22
. GASKET, FUEL PUMP 1
66E-24431-00-00
Unavailable
23
. COVER
66V-24452-00-00
Unavailable
24
. COVER
66V-24452-10-00
Unavailable
25
. COVER, CARBURETOR
66E-14280-00-00
Unavailable
26
.. DIAPHRAGM ASSY
66E-14170-00-00
Unavailable
27
.. SPRING
66E-14286-00-00
Unavailable
28
. SCREW, PAN HEAD
90157-05M17-00
Unavailable
29
. O-RING
66E-14564-01-00
Unavailable
30
. JET, MAIN (# 950)
1HX-14231-19-00
Unavailable
31
. SCREW, CABLE ADJUSTING
66V-14124-00-00
Unavailable
32
SPRING, THROTTLE VALVE
68V-14331-00-00
Unavailable
33
WASHER,NEEDLE
812-14235-00-00
Unavailable
34
. O-RING
6K8-14562-00-00
Unavailable
35
. SCREW, PILOT ADJUSTING
66V-14211-00-00
Unavailable
36
O-RING (248)
93210-03119-00
Unavailable
37
. COIL, SPRING
66V-14160-00-00
Unavailable
38
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
39
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
40
. PLATE, NEEDLE FITTING
66V-14946-00-00
Unavailable
41
. PLUG
66V-1432A-00-00
Unavailable
42
. PIN, FLOAT
439-14186-00-00
Unavailable
43
. BODY 1
66E-24412-01-00
Unavailable
44
SCREW, STOP
6K8-14523-12-00
Unavailable
45
SCREW, ROD
68N-14486-00-00
Unavailable
46
HOSE, WITH SPRING
90447-07003-00
Unavailable
47
ROD, CHOKE
68N-14585-00-00
Unavailable
48
PLATE
66V-14146-00-00
Unavailable
49
. GASKET
66E-14398-00-00
Unavailable
50
HOSE
90445-11M73-00
Unavailable
51
CLIP, PIPE
35H-14139-00-00
Unavailable
52
HOSE
90446-17MG6-00
Unavailable
53
BOLT, HOLDING
66E-14162-01-00
Unavailable
54
HOSE
90445-07004-00
Unavailable
55
HOSE
90446-10MG0-00
Unavailable
56
HOSE
90446-07MG1-00
Unavailable
57
HOSE
90446-10MG2-00
Unavailable
58
HOSE
90446-07MG3-00
Unavailable
59
HOSE
90446-10MG4-00
Unavailable
60
HOSE
90446-07MG5-00
Unavailable
61
HOSE
90445-07005-00
Unavailable
62
HOSE, WITH SPRING
90447-07004-00
Unavailable
63
HOSE
90445-07003-00
Unavailable
64
ROD, ACELL. LEVER
66V-41217-00-00
Unavailable
65
CLIP
4KM-14137-00-00
Unavailable
66
HOSE
66V-14294-00-00
Unavailable
67
PLATE
66V-14527-00-00
Unavailable
68
BOLT(GH1)
97080-06012-00
Unavailable
69
WASHER, PLAIN (646)
92990-06600-00
Unavailable
70
CLAMP
90465-13M60-00
Unavailable
71
PIPE 2
66V-24312-00-00
Unavailable
72
HOSE
90446-14MA9-00
Unavailable
73
PIPE 3
66V-24313-01-00
Unavailable
74
CLAMP, HOSE(61L)
90460-11M17-00
Unavailable
