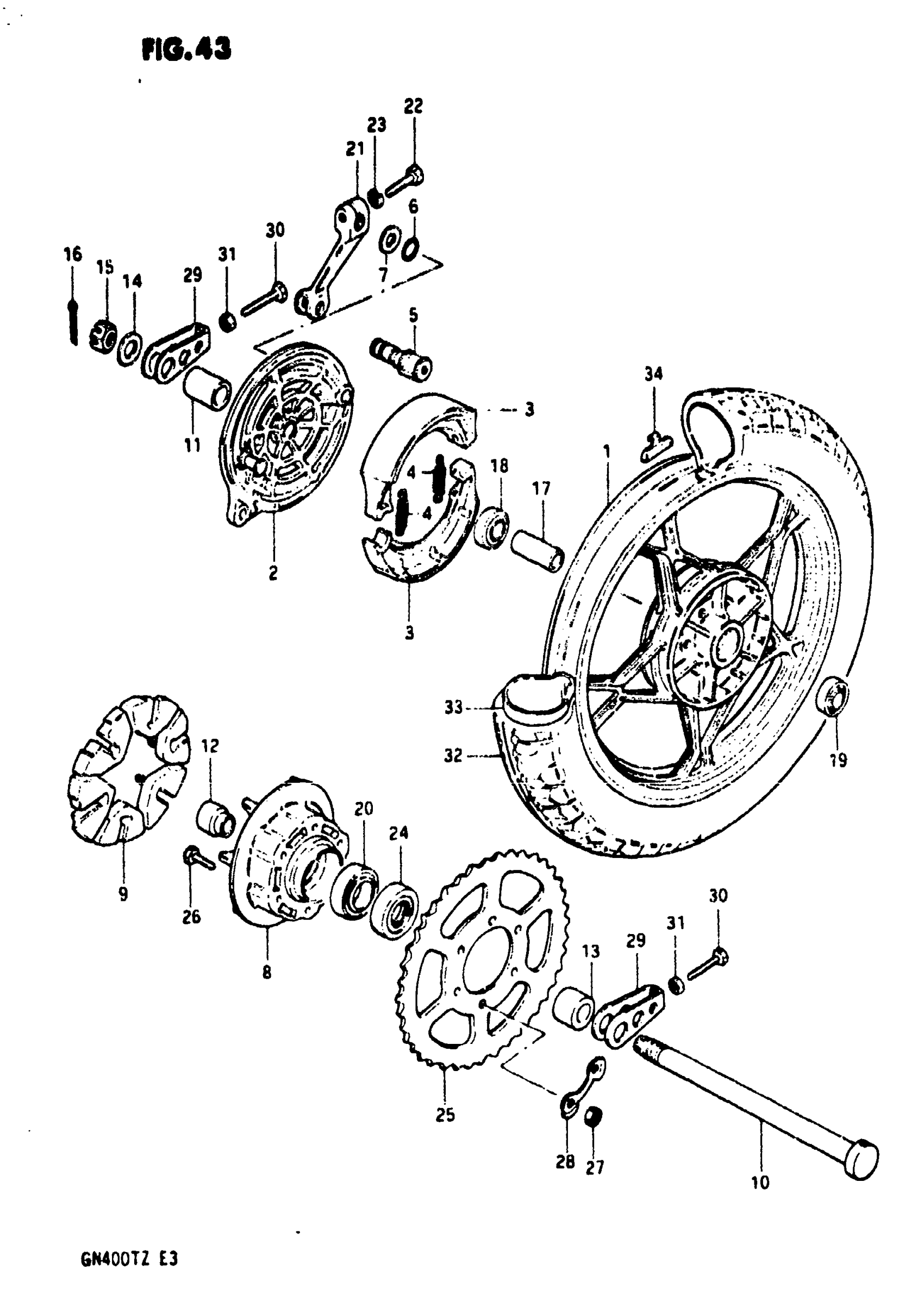

Suzuki GN400T (1982) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (215-16)

64150-37350-13T

Unavailable

2

PANEL

64210-37300

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

4

SPRING

55420-41100

Unavailable

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

DRUM, SPROCKET

64611-37300

Unavailable

9

SHOCK ABSORBER, REAR DRUM

64651-11300

$13.62

10

AXLE, REAR

64711-34001

Unavailable

11

SPACER, RH

09180-17057

Unavailable

12

RETAINER, SPROCKET DRUM

64733-34000

Unavailable

13

SPACER, LH

09180-17042

Unavailable

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

15

NUT

09141-16001

Unavailable

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

Unavailable

18

BEARING, REAR HUB RH

08143-63037

$22.58

19

BEARING, REAR HUB LH

08143-62037

$18.47

20

BEARING

08113-62057

$25.60

21

LEVER, BRAKE CAM

64451-44001

Unavailable

22

BOLT This part replaces 01107-06258.

01500-06257

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

25

SPROCKET, REAR (NT:37)

64511-37310

Unavailable

26

BOLT This part replaces 09119-10002.

09105-10001

$2.87

27

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

28

LOCK WASHER

09169-10007

Unavailable

29

ADJUSTER, CHAIN

61420-37300

Unavailable

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-37315.

65100-38330

Unavailable

32

TIRE, REAR (4 60S16) | BS

65100-37330

Unavailable

33

TUBE, INNER REAR | IRC

65200-37300

Unavailable

33

TUBE, INNER REAR | BS This part replaces 65200-37320.

65200-37300

Unavailable

34

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$7.05

34

BALANCER (30G) | (0~3)

55412-45100

Unavailable
