1982 Suzuki GN400T Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1982 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

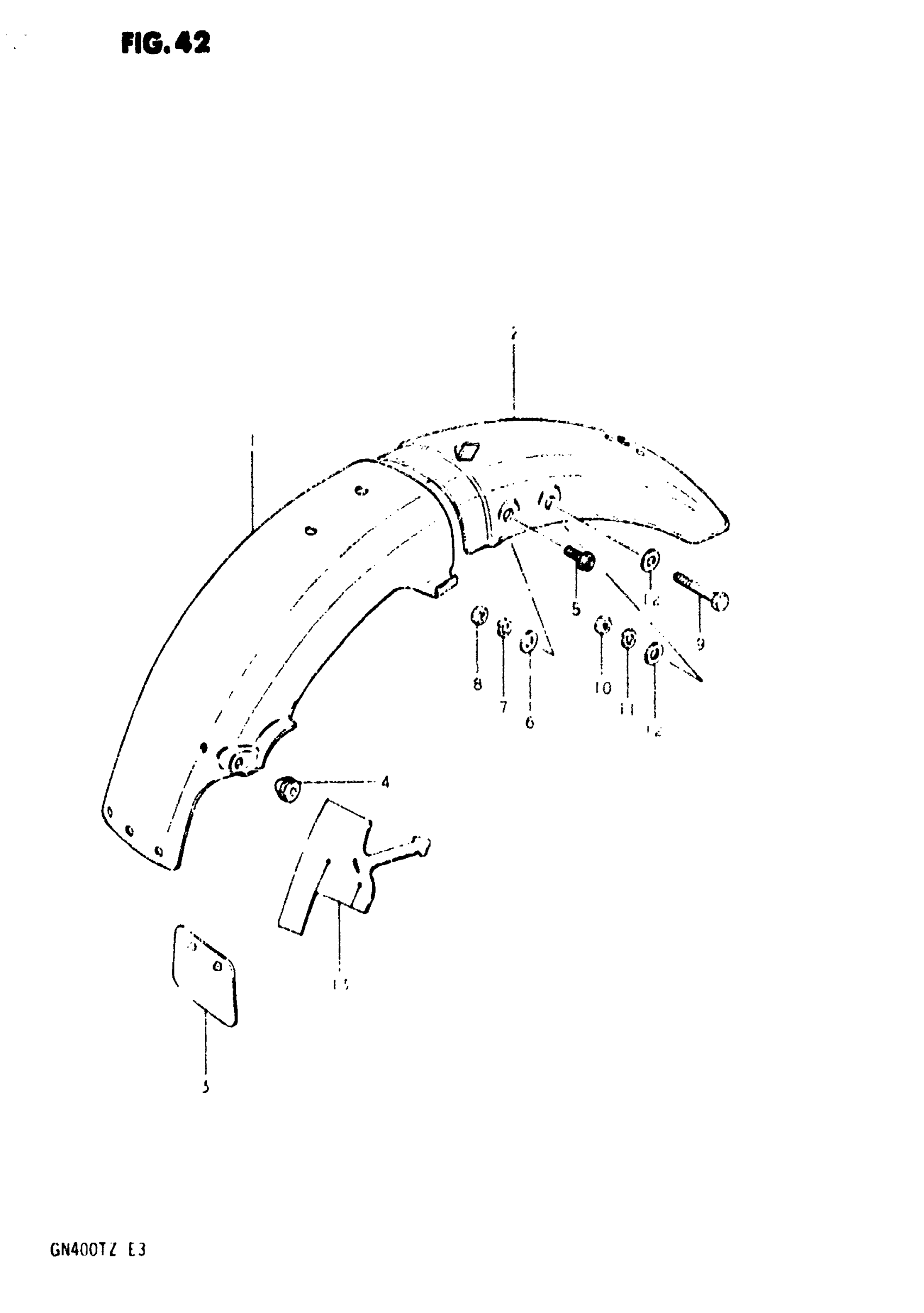

1982 Suzuki GN400T Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-37310

1
Out of stock

2

FENDER, REAR

63110-37310

1
Out of stock

3

MUD GUARD, FRONT

63411-33000

1
Out of stock

4

CUSHION, FRONT

63159-32401

2
Out of stock

5

BOLT, FRONT

01514-08168

—
Out of stock

6

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

7

2

$2.28

In stock

8

2

$1.93

In stock

9

BOLT

01204-08457

2

$3.17

In stock

10

2

$1.93

In stock

11

2

$2.28

In stock

12

WASHER This part replaces 08322-11088.

08322-01087

4
Out of stock

13

MUD GUARD, REAR TENDER

63331-37300

1
Out of stock
