Partiron

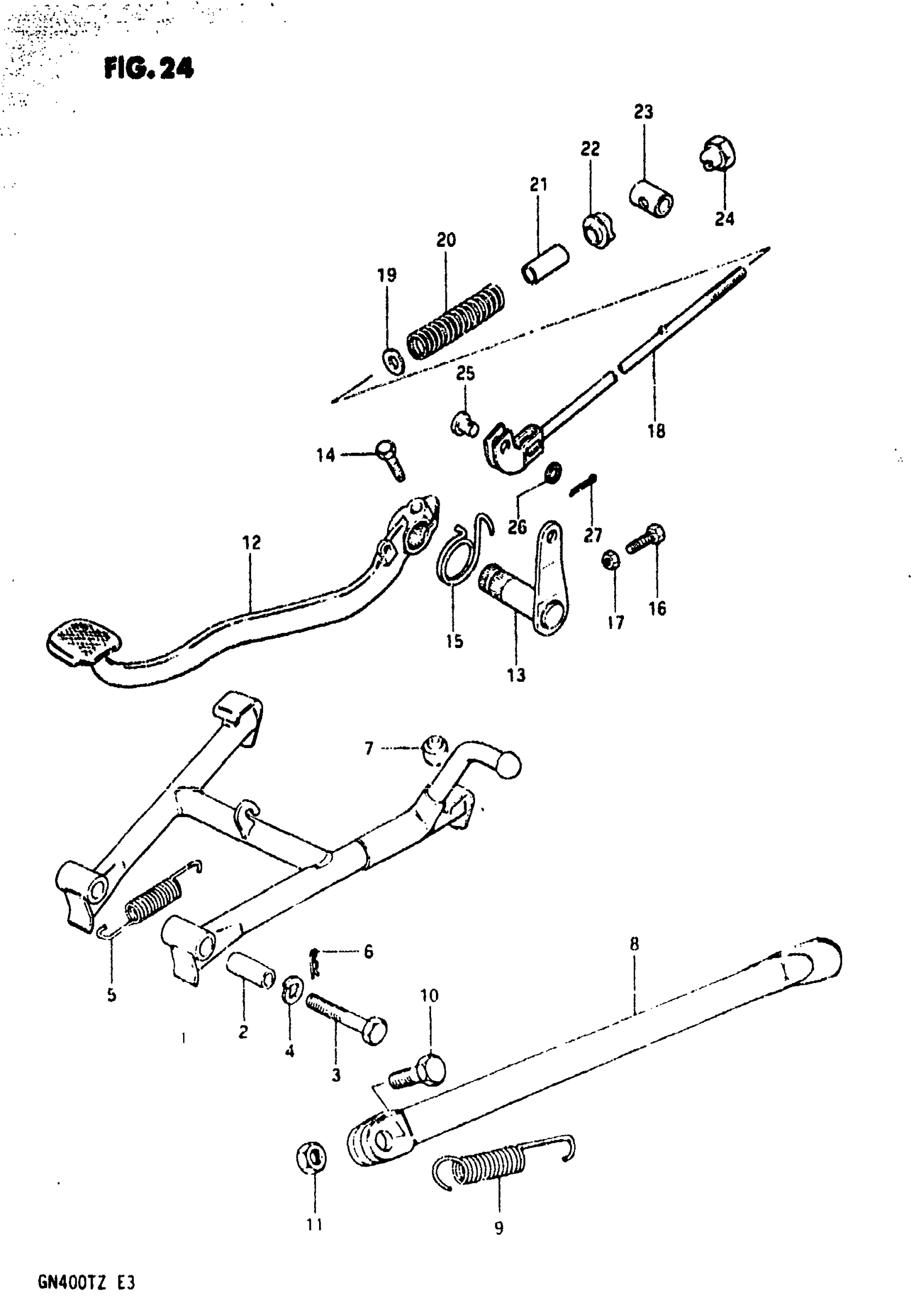

Suzuki GN400T (1982) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-37300

Unavailable

2

SPACER

09180-10040

$3.12

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

5

SPRING, CENTER This part replaces 09443-18003.

09443-18006-XC0

$8.50

6

CLIP This part replaces 09385-10001.

09385-10005

$1.50

7

CUSHICN

09321-10001

$2.69

8

STAND, PROP

42310-37300

Unavailable

9

SPRING This part replaces 09443-17005.

09443-17008-XC0

$6.39

10

BOLT (10X30)

09100-10067

$2.71

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

PEDAL, BRAKE

43110-37301

Unavailable

13

ARM, PEDAL

43120-37300

Unavailable

14

BOLT This part replaces 01107-06208.

01500-06207

$1.99

15

SPRING

09448-25006

Unavailable

16

BOLT (6x27)

09100-06009

$1.79

17

.NUT This part replaces 08310-11068.

08310-00067

$1.83

18

ROD, REAR BRAKE | Includes Item(s) 19 - 27

43300-37300

Unavailable

19

WASHER This part replaces 08322-21068.

08322-01067

$1.86

20

SPRING

09440-11012

Unavailable

21

HOSE,5X10X600 This part replaces 61155-79000.

44421-13ER0

$9.08

22

CUSHION

43370-37300

Unavailable

23

PIN, ADJUSTER

09209-13004

Unavailable

24

.NUT This part replaces 09150-06001.

09150-06010

$2.80

25

PIN

43330-37302

Unavailable

26

WASHER This part replaces 08322-11088.

08322-01087

$1.86

27

COTTER PIN This part replaces 04111-20206.

04111-2020A

$1.22
