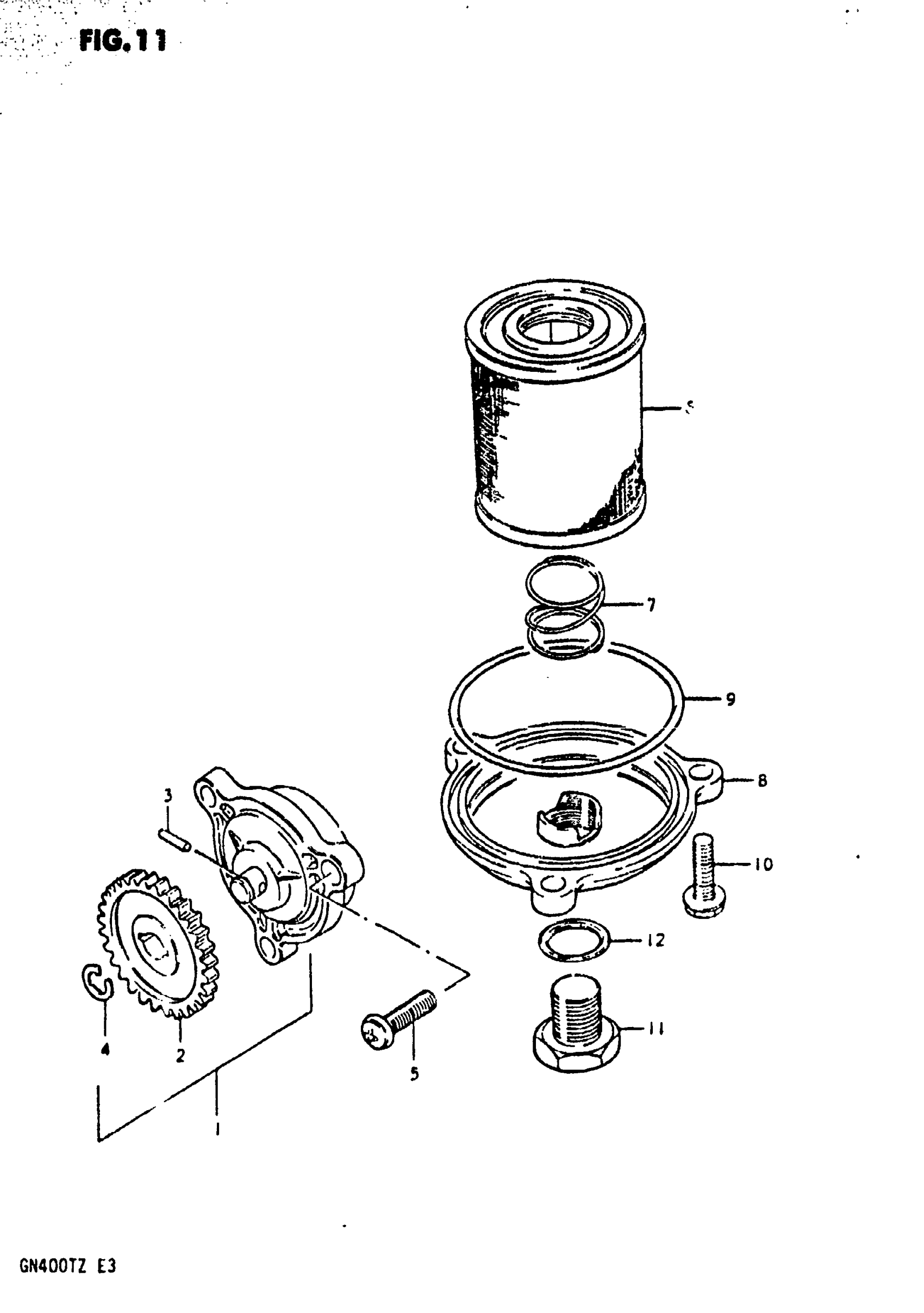

Suzuki GN400T (1982) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL | Includes Item(s) 2 - 4

16400-32400

Unavailable

2

GEAR, DRIVEN

16331-32400

Unavailable

3

PIN

09261-02008

$1.65

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

5

SCREW This part replaces 02112-06208.

02112-06207

$1.78

6

STRAINER, ENGINE OIL

16520-32430

Unavailable

7

SPRING

09440-21004

$2.75

8

CAP

16523-32400

Unavailable

9

O RING

09280-63004

$4.75

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

12

GASKET

09168-14004

$1.83
